S1 Servo motor encoder utoph-81awf
For your information
- We offer for this displayed device sale, exchange and repair services.
- Prices for Servo-/Spindle Motors are standard prices for standard repair (Repairprice from)
- Devices for sell or exchange, was preventively overhauled in our workshop.
Learn more about...
Detailed information about Yaskawa SGMG Sigma 1 Servo Motor series
We offer serial repairs for this product series
- Repair of many electronic assemblies according to standardized repair procedures with documentation.
- A larger repair capacity is possible for the same or similar orders
- Target group: machine manufacturers, service companies and distributors
Access to years of experience, specialists and equipment.
Find out more about our series repairs
Overview

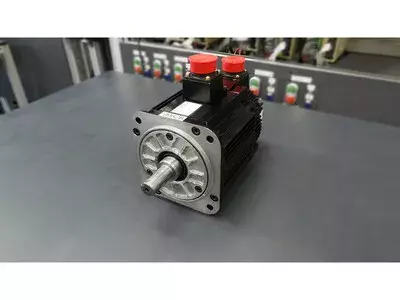

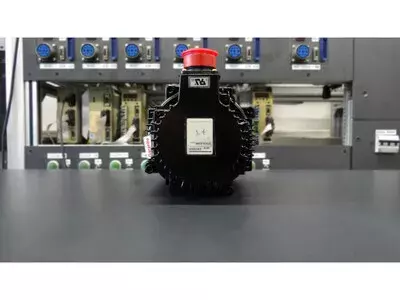

The Yaskawa SGMG-09V2AB is an AC servomotor of the Sigma series, proven in continuous industrial operation and widely used in CNC machine tools and automation axes. It offers high starting torque, robust construction, and reliable control quality. The installed UTOPH encoder can easily be replaced by the newer UTOPH-81AiF, significantly improving availability and serviceability.
Overview
- Device category: AC Servomotor
- Series/Class: Sigma (V2 generation)
- Design: robust, service-friendly, high thermal stability
Model Designation
- SGMG = Sigma series AC servomotor
- 09 = Power/Torque class (~850 W)
- V2 = Series / Variation
- AB = Options, mechanical design, customized version

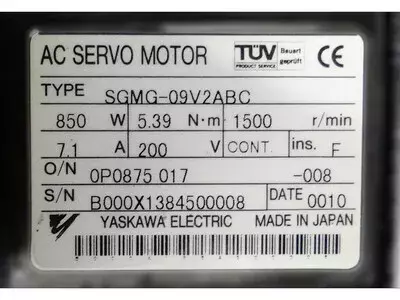

Technical Data
| Feature | Value |
|---|
| Power | 850 W |
| Rated Torque | 5.39 Nm |
| Rated Speed | 1500 min⁻¹ |
| Rated Current | 7.1 A |
| Voltage Class | 200 V |
| Insulation Class | F |

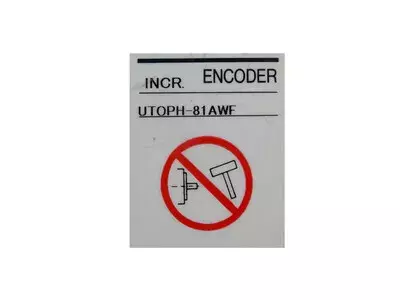

| Encoder | UTOPH-81AWF (Replacement: UTOPH-81AiF) |
| Weight / Dimensions | N/A |
Connections & Interfaces
- U/V/W: Motor power
- Encoder connection (UTOPH series)
- Protective earth PE: large-area low impedance
- Signal cable: shielded, routed separately from motor power
- Housing: massive fin cooling
Control Board / Components
- Rotor/Stator system
- Precision encoder UTOPH-81AWF / UTOPH-81AiF
- Connection box for power & feedback
- Front/rear bearing (suitable for industrial use)
- Housing with cooling fins (die-cast aluminum)
Alarms & Troubleshooting (SGDH Reference)
| Code | Description | Typical Finding | Check | Remedy |
|---|
| A.10 | Overcurrent | Short circuit, winding defective | Measure U/V/W | Check motor/drive |
| A.40 | Overvoltage | DC link overvoltage | Measure mains | Stabilize supply |
| A.41 | Undervoltage | Voltage too low | Check input | Stabilize mains |
| A.51 | Overspeed | Encoder error, incorrect phase sequence | Encoder, phase sequence | Check wiring/encoder |
| A.71 | Overload High | Short-term overload | Current profile | Reduce load |
| A.72 | Overload Low | Continuous thermal overload | Check temperature | Check mechanics |
| A.81 | Encoder Backup Error | Absolute data lost | Battery/Encoder | Initialize |
| A.82 | Encoder Checksum Error | Memory error | Encoder diagnosis | Replace encoder |
| A.84 | Encoder Data Error | Data not plausible | Line/Connector | Replace cable/encoder |
| A.C9 | Encoder Communication Error | Signal failure | Shielding/Cable | Replace cable |
Typical Applications
- CNC milling machines, lathes
- Automation and handling axes
- Precision positioning systems
- Axes with high repeatability
Service Notes
- Route encoder cable separately from motor cable
- No insulation measurement when installed
- Regularly check bearings and runout
- Keep cooling fins clean
- Compatible replacement encoder: UTOPH-81AiF
Repair Description
- Input check: Visual inspection, winding resistance, insulation measurement, encoder diagnosis
- Disassembly & Cleaning: Opening, thorough internal and external cleaning, removal of oil/emulsion
- Analysis: Checking bearings, windings, encoder function, temperature sensor
- Repair: Replacement of bearings, seals, connectors; Replacement of the encoder (UTOPH-81AiF)
- Testing & Load Test: Test run, temperature monitoring, current consumption, feedback signal
- Long-term test & Completion: Continuous run under load, documentation of all measured values, final release
