Overview

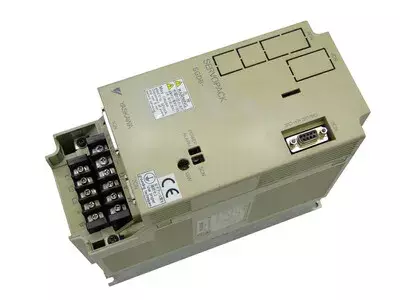

Proven AC servo amplifier from the first Sigma series by Yaskawa. Designed for precise drive control in CNC machines, industrial robots and automation systems. Robust design, long-lasting performance and maintenance-friendly construction characterize the SGDB-15VD.
Overview
- Device category: AC servo amplifier (Servopack)
- Series/Class: Sigma-I (SGDB)
- Design: Compact, forced-air cooled, robust, service-friendly

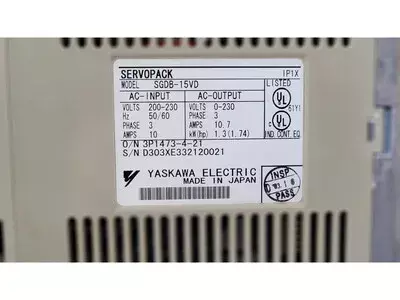

Model designation
- SGDB = Yaskawa Servo Drive, Series B (Sigma-I)
- 15 = Rated power 1.5 kW
- V = 200 V class
- D = Digital version with position/speed control
Technical Data
| Feature | Value |
|---|
| Input voltage | 3-ph 200–230 V AC ±10 % |
| Input current | approx. 12 A |
| Output voltage | 3-ph 0–230 V AC (PWM controlled) |
| Output current (rated) | 7.5 A |
| Power class | 1.5 kW |
| Control power supply | 24 V DC (control logic) |
| Regenerative brake | Internal, optional external resistor |
| Cooling | Forced ventilation (fan unit) |
| Protection class | IP20 (control cabinet mounting) |
| Weight/Dimension | approx. 6 kg / 140 × 250 × 200 mm |
Connections & Interfaces
- L1/L2/L3: Mains input 3-ph 200 V AC
- U/V/W: Motor outputs
- B1/B2: Connection for brake resistor
- CN1: Control and signal interface (servo on/off, alarm, reference signals)
- CN2: Encoder connection for feedback (Yaskawa incremental encoder)
- CN3: Serial interface (communication with CNC/host)
- LED display: Status and alarm codes
- PE: Protective earth connection
Control board / modules
- Control and power modules integrated on main board
- Power section with IGBT transistors for regulated PWM output
- Power supply section for logic, drivers and fan
- Feedback section for encoder signals
- Internal protection and monitoring logic
Alarms & Troubleshooting
| Code | Bezeichnung | Typischer Befund | Prüfung | Abhilfe |
|---|
| A.10 | Undervoltage | Mains voltage too low | Measure mains | Check supply, check mains filter |
| A.11 | Board error 1 | Control logic defective | Visual inspection, check 5 V | Replacement or repair |
| A.16 | Encoder error | Connection encoder–drive disturbed | Check CN2 | Replace cable or encoder |
| A.24 | Earth fault | U/V/W conductive to PE | Insulation measurement | Check cable/motor |
| A.30 | Regeneration error | Brake resistor overloaded | Measure resistance | Check value and connection |
| A.31 | Overspeed | Speed too high | Check tach feedback | Reduce setpoint |
| A.32 | Overcurrent | IGBT or motor short circuit | Check phases | Replace transistor module |
| A.33 | Overvoltage | Feedback in the mains | Measure DC link | Check mains quality |
| A.46 | Motor temperature too high | Thermal switch opened | Measure thermal signal | Check cooling |
| A.50 | Overload 1 | Permanent overcurrent load | Check motor current | Check mechanics, adjust parameters |
Typical applications
- CNC machining centers (X/Y/Z axes)
- Handling and robot axes
- Machine tools with 200 V servo motors (SGM, SGMP series)
- Automation drives in production lines
Service notes
- Clean fan and heat sink regularly
- Check and replace electrolytic capacitors after operating hours (5–7 years)
- Back up parameters via CN1, create backup before service
- Perform insulation test (Megger) only in the removed state
- Perform low-resistance grounding, observe EMC-compliant wiring
Repair description
- Input check: Visual inspection for soot, corrosion and solder joints; Measurement of the DC link voltage; Checking the fuses
- Disassembly & cleaning: Removal of the electronics, removal of dust, grease and chips; Cleaning the cooling fins and fan
- Analysis: Checking the IGBT modules, gate drivers, capacitors and control sections; Fault simulation via test interface
- Repair: Replacement of defective power transistors, capacitors and drivers; Rewelding of critical points
- Testing & load test: Functional test on the test bench with reference motor; Monitoring of current, temperature and ripple; Test run with external brake
- Endurance test & conclusion: Continuous operation over several hours under load, log temperature behavior; Final report and functional release
