Overview

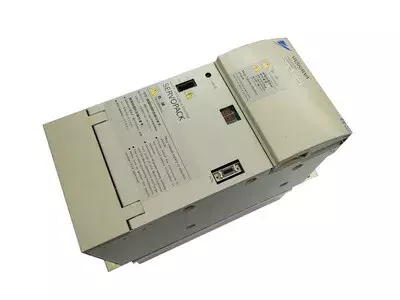

Proven converter unit of the Yaskawa MR5 series. It converts three-phase mains voltage into a stable DC link voltage and thus supplies servo amplifiers or spindle drives. Ideal for demanding machine and plant controls with high availability and serviceability.
- Device category/role: Converter Unit
- Series/Class: MR5-Varispeed family (200 V class)
- Design: compact, robust, with forced ventilation and service-friendly layout
Model designation
- CIMR = Converter Inverter Module, Yaskawa terminology
- MR5 = Series MR5 (Varispeed-626MR5 family)
- N = Letter code for power supply/converter unit (power supply module)
- 2018 = Performance/type code (here: approx. 22.9 kW rated output power)
Technical Data
| Feature | Value |
|---|
| Supply | 3-Phase 200 – 230 V AC, 50/60 Hz |
| Input power | 30 kVA at full load |
| DC link voltage (input) | 270 – 325 V DC |
| Rated output power | 22.9 kW |
| Output current | n/a |
| Cooling | Forced ventilation (ambient air cooling) |
| Weight/Dimension | approx. 12 kg (standard version) |
Connections & Interfaces
- Mains connection L1/L2/L3 200–230 V AC
- DC link DC output to subsequent servo amplifiers
- Control/signal connections of the control board (1PCB)
- Heat sink connections, fan supply
- Grounding (PE) connect over a large area
- LED/display for error/status indication
- Note: Route all cables neatly, observe cable cross-sections according to the type plate
Control board / Assemblies
- Control board: 1PCB – Type YPHT31149-xD
- Power board: 2PCB – Type YPCT31244-1B / ETC626095
- Power unit: Integrated IGBT module (main switching stage)
Alarms & Troubleshooting
| Code | Bezeichnung | Typischer Befund | Prüfung | Abhilfe |
|---|
| 01 | Overcurrent | Output current exceeded permissible limit | Check wiring, input voltage, load | Reduce load, replace defective components |
| 04 | Main fuse tripped | Main power circuit fuse blown | Check for short circuit or earth fault | Replace fuse, eliminate the cause of the fault |
| 05 | Overload | Continuous current limit exceeded | Check load profile and capacity | Reduce load, check system dimensioning |
| 11 | Output overvoltage | DC link voltage above limit | Check input voltage and load | Identify causes of voltage spikes |
| 12 | Main circuit undervoltage | DC link voltage below limit | Check mains voltage | Improve mains quality, check connection |
| 13 | Control circuit undervoltage | Control board supply voltage too low | Check control power supply | Fix problem with control board |
| 14 | Servo supply faulty | Voltage to the servo amplifier unstable | Check supply and wiring | Optimize connection |
| 15 | Mains frequency error | Frequency deviation greater than ±5 % (50/60Hz) | Check mains frequency | Ensure mains quality |
| 16 | Charging error (Initial charging fault) | Main capacitor was not charged | Check capacitor | Replace device or swap module |
| 17 | Mains phase interruption | Phase missing in the mains connection | Check mains connection | Correct connection |
| 23 | Contactor fault | Internal contactor has not switched | Check mechanics | Replace device |
| 43 | Heat sink overheated 1 | Temperature exceeded warning threshold | Check ambient temperature, cooling | Improve cooling |
| 44 | Heat sink overheated 2 | Over temperature for more than 1 minute | Check cooling performance | Optimize fan, cooling path |
| 45 | Thermistor disconnected | Temperature sensor on the heat sink interrupted | Check sensor | Replace sensor |
| 46 | Control board too hot (1) | Temperature control board over 80 °C | Check cooling | Improve cooling, check board |
| 47 | Control board too hot (2) | Temperature over 85 °C | Check cooling path | Act immediately, possible board repair |
Typical applications
- CNC machining centers
- Turning and milling machines with spindle and axis drives
- Automated production lines
- Retrofit projects with durable, proven technology
Service notes
- Regularly check fans and heat sinks for dust, oil and blockages
- Preventively replace capacitors and components with high thermal stress after about 8–10 years
- Back up parameters and firmware (software version 0021)
- Carry out grounding consistently and with low resistance
- Do not perform insulation measurement (Megger) on the installed device
- Check ambient temperature and air inlet conditions
Repair description
- Input check: Visual inspection for mechanical damage, blockage of ventilation, measurement of input voltage, check for short circuit or earth fault in the power section
- Disassembly & cleaning: Removal of the device, thorough cleaning of heat sinks, fans, circuit boards and air paths; renewal of the thermal paste
- Analysis: Checking the control board and power board for damaged solder joints, loose components, aged capacitors; Checking the DC link for voltage, ripple and short circuit; Simulation of load conditions on the test bench
- Repair: Replacement of defective IGBT/IPM modules, capacitors, control/circuit board components, fan and heat sink parts; Repair of solder joints, cleaning of connectors, if necessary firmware update
- Testing & load test: Functional test with connected servo amplifiers under load; Monitoring of DC link voltage, output current, temperature and alarm indication; Release with target parameters
- Endurance test & completion: Continuous operation under real load, logging of all measured values (current, voltage, temperature, alarms); final documentation and marking for reinstallation
