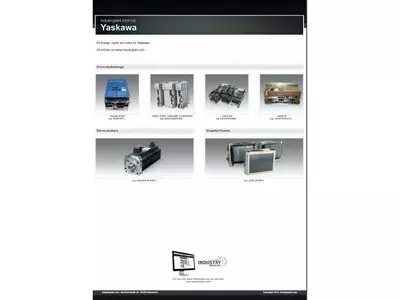

Our current brochure about Industrypart GmbH can be found in the download area.
We offer serial repairs for this product series
- Repair of many electronic assemblies according to standardized repair procedures with documentation.
- A larger repair capacity is possible for the same or similar orders
- Target group: machine manufacturers, service companies and distributors
Access to years of experience, specialists and equipment.
Find out more about our series repairs
Overview
Proven frequency inverter of the Yaskawa M5 series for direct control of AC motors via a DC link. The device is designed for continuous industrial operation and impresses with robust power electronics, clear structure, and service-friendly design.
Overview
- Device category: AC Inverter / Frequency Converter
- Series/Class: Yaskawa M5 Series, 200-V class (DC link)
- Design: compact, forced-air cooled, suitable for industrial use
Model Designation
- CIMR = Yaskawa Inverter (Controller Inverter Motor Drive)
- M5 = M5 Series
- S = Inverter version (DC feed)
- 2015 = Power rating

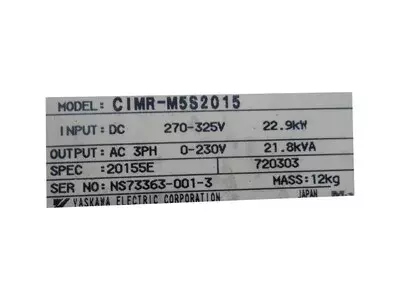

Technical Data (according to nameplate)
| Feature | Value |
|---|
| DC input voltage | DC 270–325 V |
| DC input power | 22.9 kW |
| Output | AC 3-phase |
| Output voltage | 0–230 V |
| Output power | 21.8 kVA |
| Cooling | Forced-air cooling |
| Mass | 12 kg |
| Specification (SPEC) | 2015SE |
| Program version (PRG) | 7024 / 3334 |
| Origin | Made in Japan |
Connections & Interfaces
- P / N (DC+ / DC–): DC link input
- U / V / W: 3-phase motor output
- PE / FG: Protective earth
- 51CN / 52CN: Control and feedback interfaces
- Power terminals: Screw terminals for high current
Control Board / Assemblies
- Control board (Control PCB)
- Power board (Gate/Drive PCB)
- Power section (IGBT power module)
- DC link with smoothing
- Fan unit with temperature monitoring
Alarms & Troubleshooting
| Code | Description | Typical Finding | Check | Remedy |
|---|
| AL-01 | Overcurrent | Short circuit or overload on the motor | Check U/V/W | Check power section |
| AL-05 | Overload | Continuous load too high | Check load profile | Reduce load |
| AL-11 | Overvoltage | DC link too high | Measure DC bus | Check braking/load conditions |
| AL-12 | Undervoltage | DC link too low | Check power supply | Stabilize supply |
| AL-43 | Heatsink overheat | Insufficient cooling | Check fan/filter | Repair fan |
| AL-48 | Cooling fan fault | Fan failure | Check fan | Replace fan |
Typical Applications
- CNC machine tools
- Spindle and auxiliary axis drives
- Conveying and handling technology
- Special machines with DC link
Service Notes
- Regularly clean heatsink and fan
- Regularly retighten DC terminals
- No insulation measurement (Megger) on the installed device
- Back up parameters before service work
Repair Description
- Input check: Visual inspection, DC link measurement, short circuit test
- Disassembly & Cleaning: Removal, thorough cleaning of all assemblies
- Analysis: Testing of IGBT modules, driver stages, and control boards
- Repair: Replacement of defective power components and thermally stressed parts
- Testing & Load Test: Test run under load with monitoring of current and temperature
- Long-term test & Conclusion: Continuous operation, documentation, and final protocol
