Overview

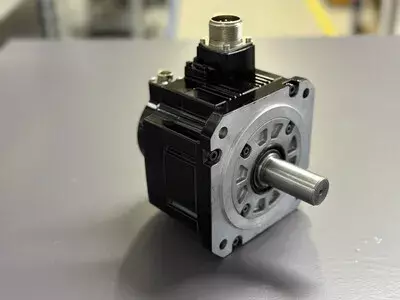

Proven Mitsubishi HF series AC servo motor, precise, robust and designed for demanding CNC axes in modern machines. This motor type is often used in combination with Mitsubishi MDS-DH servo drives and is characterized by excellent control quality, high reliability and long service life. Ideal for axis drives in milling and turning machines of the 400 V class.
- Device category: AC servo motor
- Series/Class: HF series, 400 V class
- Design: Fully enclosed, IP67, high-precision, service-friendly
Model designation
- HF = High Frequency AC Servo Motor
- H = High Performance Series
- 54 = Size 54 (medium power class)
- S = Standard version with smooth shaft
- A51 = Variant identifier (compatible with MDS-DH, 400 V system)
Technical Data
| Feature | Value |
|---|
| Rated power | 0.5 kW |
| Rated voltage | 3AC 340 V |
| Rated current | 1.1 A |
| Rated speed | 3000 r/min |
| Max. speed | 4500 r/min |
| Rated torque | approx. 1.6 Nm |
| Encoder | OSA105S5 (absolute, serial feedback, compatible with MDS-DH) |
| Cooling | Self-cooling (convection) |
| Protection class / Insulation class | IP67 / Class F |
| Weight / Dimensions | approx. 4.8 kg / n. a. |
Connections & Interfaces
- U / V / W: Three-phase connection (340 V AC) to the MDS-DH drive
- CN2 (encoder connection): OSA105S5 absolute encoder, serial interface to the drive
- PE / Grounding: separate ground connection on the motor housing
- Brake: not available (standard version without holding brake)
- Fan connection: not applicable (passive cooling)
Control board / Assemblies
- Permanent magnet rotor with precision balancing
- Stator winding with integrated temperature sensor
- Absolute encoder OSA105S5 with serial communication
- Connection box with high-density plug system
- Bearing sets with precision running, double shaft seal
Alarms & Troubleshooting
| Code | Bezeichnung | Typischer Befund | Prüfung | Abhilfe |
|---|
| 21 | No signal from the encoder | No feedback from the OSA105S5 | Check CN2 connection | Check connector/cable/encoder |
| 22 | Encoder data error | Data transmission faulty | Cable shielding, EMC | Replace cable/encoder |
| 24 | Earth fault | Insufficient insulation between U/V/W and PE | Insulation test | Replace cable or motor |
| 31 | Overspeed | Speed > setpoint | Check speed signal | Correct parameters |
| 32 | Overcurrent | Short circuit or IPM protection active | Check phases, winding | Check motor/drive |
| 46 | Motor overheating | Temperature sensor triggered | Ventilation, environment | Improve cooling |
| 50 | Overload 1 | Permanent overload | Analyze current profile | Check mechanics/load |
| 51 | Overload 2 | Axis blocked | Mechanics or brake stuck | Eliminate cause |
| 52 | Position error | Target-actual deviation too large | Check encoder value | Adjust mechanics or encoder |
| 9F | Low battery voltage | Absolute value system weak | Measure voltage | Replace battery, reference run |
Typical applications
- CNC axis drives with MDS-DH drive units
- Machine tools with high precision
- Positioning axes in milling centers and machining centers
- Machines with highly dynamic servo controls
Service notes
- Regularly check plug connections and cable seals
- Do not perform a megger test on the connected motor
- Replace the encoder battery regularly (every 3–5 years)
- After service: re-measure the zero point (reference run)
- Pay attention to a clean environment and EMC-compliant routing
Repair description

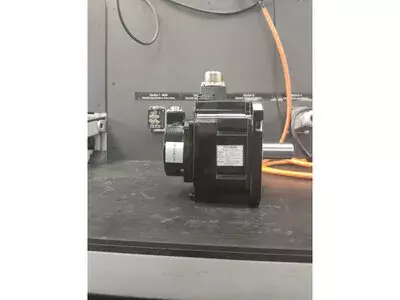

- Incoming inspection: Visual inspection, measurement of winding and insulation values, checking the encoder communication with the MDS-DH test stand
- Disassembly & cleaning: Open the housing, thorough cleaning of the stator, rotor and connection box, drying in the drying cabinet
- Analysis: Checking the bearings, encoder feedback (OSA105S5), winding condition, temperature sensor and plug connections
- Repair: Replacement of defective bearings, seals and, if necessary, encoder; renewal of lubrication; reconditioning of the housing seals
- Testing & load test: Test run with the original MDS-DH drive, monitoring of current consumption, temperature, torque and feedback signal
- Endurance test & conclusion: Continuous operation over several hours under real load, recording of the parameters, documentation and release for reinstallation
