Overview

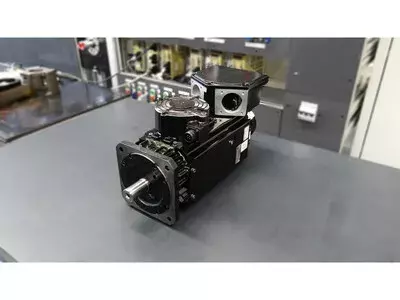

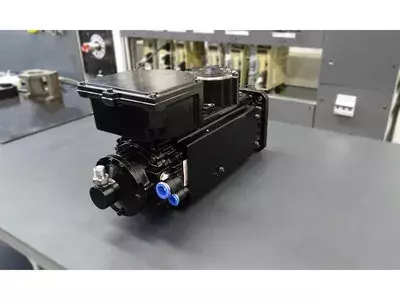

The Yaskawa USAIKM-50-BK43-D is a powerful AC servo motor manufactured in Japan, structurally designed as a servo motor but practically operated as a spindle motor. Due to its high rated speed, high torque, and design for continuous operation, this motor is particularly suitable for servo-electric spindle applications in CNC machines. The design is robust, thermally resilient, and engineered for precise control at high speeds – proven reliable in continuous industrial use.
Overview
- Device category/Role: AC servo motor, used as a spindle motor
- Series/Class: Yaskawa USAIKM series, 200 V class
- Design: High-speed motor, forced-air cooled, encoder-based, suitable for industrial use
Model Designation
- USAIKM = Yaskawa Servo/Spindle Motor Series
- 50 = Frame size / Power class
- BK43 = Mechanical design (Flange, Shaft, Cooling concept)
- D = Version status
- Encoder (Original) = Incremental encoder UTMSI-10AAEAZR
- Encoder (Replacement) = ERiP-UTMSI-10AA
- Associated Inverter = Yaskawa CIMR-MXL2022

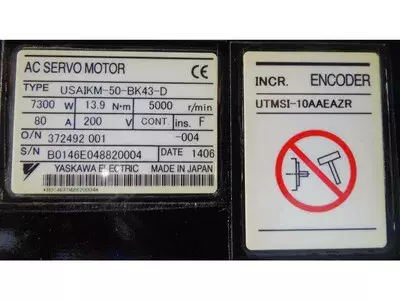

Technical Data
| Feature | Value |
|---|
| Motor Type | AC Servo Motor (Spindle application) |
| Rated Power | 7.3 kW |
| Rated Voltage | 200 V AC |
| Rated Current | 80 A |
| Rated Torque | 13.9 Nm |
| Rated Speed | 5,000 min⁻¹ |
| Max. Speed | 16,000 min⁻¹ |
| Operating Mode | CONT. (Continuous operation) |
| Insulation Class | ins. |
| Encoder | Incremental UTMSI-10AAEAZR |
| Manufacturer | Yaskawa Electric |
| Origin | Made in Japan |
| Year of Manufacture | 2021 (Date 2101) |
| Weight/Dimensions | n. a. |
Connections & Interfaces
- U / V / W: Power connections to the inverter CIMR-MXL2022
- PE / FG: Protective earth connection, must be low-impedance and large-area
- Encoder connection: Incremental encoder UTMSI-10AAEAZR
- Fan connection: External fan supply (separate fan motor)
- Cooling Note: Fan function must be checked before commissioning
Control Board / Components
- Stator with high-performance winding (200 V class)
- Rotor for high-speed operation up to 16,000 min⁻¹
- Incremental encoder UTMSI-10AAEAZR
- External fan unit for active cooling
- High-speed bearing for spindle operation
- Seals and connection compartment for industrial environment
Alarms & Troubleshooting
Based on typical Yaskawa inverter and spindle applications (CIMR-MXL series).
Alarms & Troubleshooting
| Code | Description | Typical Finding | Check | Remedy |
|---|
| 01 | Overcurrent | Spindle blocked, short circuit, bearing problem | Check motor current, mechanics | Repair mechanics |
| 02 | Overvoltage | Regeneration during deceleration | Check DC bus | Adjust braking circuit |
| 03 | Undervoltage | Unstable supply | Measure mains voltage | Stabilize power supply |
| 05 | Overheat | Insufficient cooling | Check fan, air guidance | Repair fan |
| 09 | Ground Fault | Moisture, insulation damage | Measure insulation (disconnected) | Drying, sealing |
| 11 | Motor Overload | Continuous overload in spindle operation | Check load profile | Adjust process |
| 13 | Output Phase Loss | Phase failure | Check cables | Repair cable/output stage |
| 22 | Thermistor Fault | Temperature sensor defective | Check sensor/cable | Repair sensor/cable |
