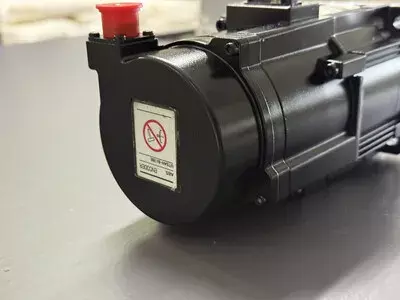

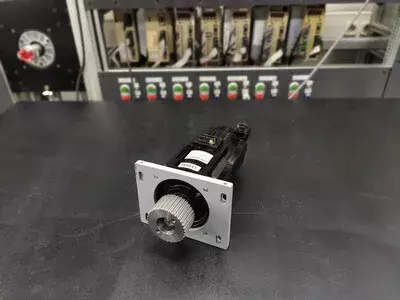

S2 Servo motor
For your information
- We offer for this displayed device sale, exchange and repair services.
- Prices for Servo-/Spindle Motors are standard prices for standard repair (Repairprice from)
- Devices for sell or exchange, was preventively overhauled in our workshop.
Learn more about...
Detailed information about Yaskawa SGMG Sigma 1 Servo Motor series
We offer serial repairs for this product series
- Repair of many electronic assemblies according to standardized repair procedures with documentation.
- A larger repair capacity is possible for the same or similar orders
- Target group: machine manufacturers, service companies and distributors
Access to years of experience, specialists and equipment.
Find out more about our series repairs
Overview
- Device category/role: AC servo motor with absolute encoder
- Series/Class: Sigma-V, 200-V class
- Design: Compact, naturally cooled, easy to maintain
Model designation
- SGMGS = Sigma-V servo motor series (GS series with standard inertia)
- 05 = Power size 0.5 kW
- A5W = Winding design / mechanical variant
- SE12 = Equipment option (17-bit absolute encoder, connector type SE12)
Technical Data
| Feature | Value |
|---|
| Rated power | 0.45 kW |
| Rated torque | 2.86 N·m |
| Peak torque | 8.6 N·m |
| Rated speed | 1500 min⁻¹ |
| Maximum speed | 3000 min⁻¹ |
| Rated voltage | 200 V AC |
| Rated current | 4.3 A |
| Encoder | UTSAH-B17BE (17-bit absolute) |
| Cooling | Natural convection |
| Protection class | IP65 (connection area IP44) |
| Brake | Optional 24 V DC |
| Weight | approx. 3.5 kg |
Connections & Interfaces
- U / V / W: Three-phase power connections
- PE: Ground connection, connect low-resistance
- Encoder connection: Serial absolute encoder UTSAH-B17BE, buffered via the servo amplifier
- Brake connection: Optional 24 V DC input

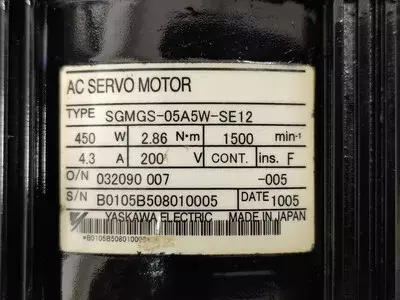

- Markings: Nameplate with serial number, encoder type and circuit variant
Control board / modules
- Rotor with permanent magnets (low moment of inertia)
- Stator with distributed windings
- Rolling bearings (sealed on both sides)
- Encoder UTSAH-B17BE
- Connection housing with power terminals and encoder connector
Function description
The Yaskawa SGMGS-05A5W-SE12 is a three-phase permanent-magnet synchronous servo motor of the Sigma-V series. It delivers a rated torque of 2.86 N·m at 450 W output power. The construction consists of a laminated stator with distributed windings, a high-energy magnet rotor with low inertia, precise rolling bearings and an integrated encoder (UTSAH-B17BE), which provides incremental and absolute signals. Brakes (24 V DC) and sealing systems are optionally available. The matching servo amplifier SGDK-050505AEA-V controls current, torque, speed and position via vector-based control and processes feedback signals from the encoder. It includes protection functions such as overcurrent, overtemperature and communication monitoring, as well as a regenerative braking stage for energy recovery. This system ensures precise movements in machine tools, robots and packaging systems.
Alarms & Troubleshooting
| Drive-Code | Alarm / Description | Possible cause | Solution / Action |
|---|
| 0x10 (16) | Overcurrent (short-circuit current) | Short circuit in the motor circuit or excessive acceleration | Check motor cable, reduce acceleration, test drive |
| 0x11 (17) | Ground fault | Insulation failure or moisture in the motor connection box | Perform insulation measurement, clean, dry |
| 0x14 (20) | Motor overcurrent | Mechanical blockage or overload | Check mechanics, reduce load, adjust ramps |
| 0x30 (48) | Regeneration error | Regeneration resistor defective or incorrectly dimensioned | Check resistor, ensure cooling |
| 0x41 (65) | Undervoltage | Voltage drop in the mains or mains filter error | Stabilize power supply, check wiring |
| 0x51 (81) | Overspeed (motor) | Incorrect setpoints or encoder error | Check setpoints, check encoder cable |
| 0x53 (83) | Excessive speed deviation | Controller parameters unsuitable, encoder signal interference | Adjust P/I controller, check encoder connection |
| 0x72 (114) | Overload (continuous load) | Motor overloaded for too long | Reduce load, adjust duty cycle |
| 0x98 (152) | Motor overheating (warning) | Too high ambient temperature or ventilation blocked | Improve cooling, let motor cool down |
| 0xC5 (197) | Error during motor pole detection | Encoder or parameter error | Check motor parameters, re-initialize encoder |
Typical applications
- CNC machine tools (e.g. Star, Matsuura)
- Industrial robots and pick-and-place systems
- Packaging and printing machines
- Precision axes in assembly and testing machines
Service notes
- Clean motor and connectors regularly and check for leaks
- Replace bearings, seals and connectors preventively
- Measure insulation resistance only on the disconnected motor (no megger measurement on the built-in drive)
- Replace absolute encoder battery regularly
- Re-learn the reference point after each intervention
- Documentation of all test values and operating data for traceability
Repair description
- Input check: Visual inspection, insulation measurement, torque test, encoder check
- Disassembly & cleaning: Removal, thorough cleaning, drying, inspection of all assemblies
- Analysis: Checking windings, bearings, shaft, encoder signal
- Repair: Replacement of bearings, seals, connectors; adjustment and, if necessary, replacement of the encoder
- Testing & load test: Functional and load test on the test bench with SGDK-050505AEA-V; measurement of current, temperature, torque and encoder signal
- Endurance test & conclusion: Continuous operation under rated load, documentation of the results, final report with recommendations for preventive maintenance
