Overview

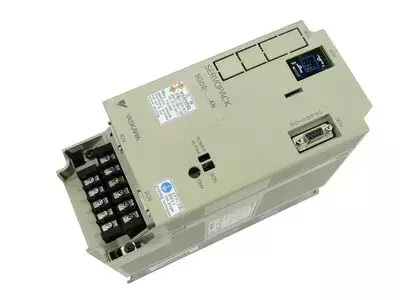

The Yaskawa SGDB-10AN is a servo amplifier of the Σ series (SGDB series) for 200 V servo motors in the 0.85 kW power range. The AN variant combines the standard 200 V supply (“A”) with the digital MECHATROLINK command interface (“N”). The device is frequently used in CNC machine tools, precise automation axes, and handling systems where high reliability and digital bus communication are required.
Overview
- Device category: AC Servo Amplifier (Servopack)
- Series: SGDB (Σ Series)
- Design: robust, fanless/convection cooled, service-friendly
Model Designation
- SGDB – Yaskawa Σ Servopack
- 10 – Power size approx. 1.0 kW (0.85 kW actual rated power according to nameplate)
- A – 200 V supply, standard variant
- N – MECHATROLINK Command Interface (digital fieldbus)
- Y11 – additional factory option / modification code (firmware/hardware special version)
Technical Data
| Feature | Value |
|---|
| Input Voltage | 3~ 200–230 V AC |
| Mains Frequency | 50/60 Hz |
| Input Current | 8.0 A |
| Output Voltage | 0–230 V AC |
| Output Current | 7.1 A |
| Output Power | 0.85 kW (1.14 HP) |
| Phases | 3 |
| Interface | MECHATROLINK (N-Type) |
| Cooling | Convection cooling (IP1X) |
| Weight/Dimensions | n. a. |
Connections & Interfaces
- L1 / L2 / L3 – Three-phase AC mains input
- U / V / W – Motor output for 1 kW class Sigma motors
- CN1 – Control signals (Enable, Alarm, I/O, reference signals)
- CN2 – Encoder connection (Incremental encoder)
- MECHATROLINK Port – digital bus communication
- BR+ / BR– – Brake resistor
- PE – Protective earth connection
- LED/7-segment display – Status/error diagnosis
Control Board / Assemblies
| Type (EN) | Designation on Board | Quantity | Note |
|---|
| Control Board | SGDB-CAN(A/Y1) – Variant code | 1 | Control logic + MECHATROLINK bus interface |
| Power Section | n. a. | 1 | IGBT power module, driver, rectifier |
Control Board / Assemblies
(Exact board names can be added later based on board photos if required.)
Alarms & Troubleshooting
| Code | Description | Typical Finding | Check | Remedy |
|---|
| A.10 | Overcurrent / Overheating | Short circuit U/V/W, IGBT defective | Insulation, IGBT test | Repair power section |
| A.30 | Regeneration Error | RB open/defective | Check RB circuit | Connect/replace resistor |
| A.32 | Regeneration Overload | RB too small or frequent stopping | Measure Reg energy | Install larger RB |
| A.40 | Overvoltage | Mains too high / excessive regeneration | Check input voltage | Stabilize supply |
| A.41 | Undervoltage | Supply dip | Measure mains load | Check cable/transformer |
| A.51 | Overspeed | Encoder error or incorrect phase sequence | Test encoder, check U-V-W | Correct wiring |
| A.71 | Momentary Overload | Blockage/high shock loads | Check mechanics | Reduce load |
| A.72 | Continuous Overload | Axis profile too aggressive | Current/temperature profile | Soften profile |
| A.81 | Encoder Backup Error | Absolute data lost | Battery/Cable | Replace battery, perform homing procedure |
| A.84 | Encoder Data Error | Encoder damaged / signal error | Scope, check cable | Replace encoder |
| A.b3 | Current Detection Error | Current sensor error | Check sensor/driver | Repair control/power section |
Typical Applications
- CNC feed and positioning axes
- Automated manufacturing systems
- Handling and transfer modules
- Robotics secondary axes
- Machines with digital bus operation (MECHATROLINK)
Service Notes
- Keep ventilation slots clean
- Check or proactively replace capacitors (Elcos) / power electronics after years of operation
- Terminate and shield the MECHATROLINK bus correctly
- Connect grounding with low resistance
- Route encoder cables separately from power cables
- Document parameters & bus configuration
- Do not perform megger measurements on control/bus lines
Repair Description
- Input inspection: Visual inspection, insulation measurement, bus communication test, DC bus measurement
- Disassembly & Cleaning: Remove device, eliminate dust/oil, replace thermal pads
- Analysis: Check control board SGDB-CAN(A/Y1), optocouplers, voltage regulators, bus interface, test power transistors
- Restoration: Replacement of defective components (IGBT, rectifier, capacitors, driver ICs), rework of solder joints
- Function test: Test run with 1 kW motor, monitoring of current, temperature, regeneration energy, and bus communication
- Long-term test: Multi-hour load test under real load profiles, creation of final protocol
