Drive Amplifier
For your information
- We offer for this displayed device sale, exchange and repair services.
- Prices for Servo-/Spindle Drives Power Supplies are standard prices for standard repair
- Devices for sell or exchange, was preventively overhauled in our workshop.
Learn more about...
Detailed information about Yaskawa CACR Servopacks
We offer serial repairs for this product series
- Repair of many electronic assemblies according to standardized repair procedures with documentation.
- A larger repair capacity is possible for the same or similar orders
- Target group: machine manufacturers, service companies and distributors
Access to years of experience, specialists and equipment.
Find out more about our series repairs
Overview

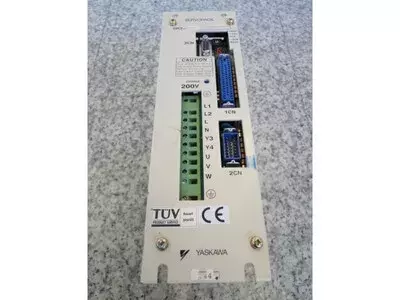

The Yaskawa Servopack DR2-02AC is a proven AC servo amplifier of the DR2 series. It was traditionally developed for compact machine axes and offers reliable speed and torque control for small AC servo motors. The robust metal construction and IP2X protection class make the device a durable component in many industrial applications.
Overview
- Device category: AC Servo Amplifier
- Series/Class: DR2 Series, 200 V Class
- Design: compact, air-cooled, service-friendly
Model Designation
- DR = Drive Regulator / Servopack
- 2 = DR2 Series
- 02 = Power size ~0.2 kW
- AC = AC Input & AC Motor Output
Technical Data
| Feature | Value |
|---|
| AC Input Voltage | 200–230 V |
| Frequency | 50/60 Hz |
| Input Phase | 1-Phase |
| Input Current | 4.0 A |
| AC Output Voltage | 0–230 V |
| Output Phase | 3-Phase |
| Output Current | 2.0 A |
| Output Power | 0.2 kW (0.27 HP) |
| Protection Class | IP2X |
| Cooling | natural convection |
| Weight/Dimensions | n. a. |
Connections & Interfaces
- L1 / L2: Mains supply 200–230 V AC
- U / V / W: 3-Phase Motor Output
- Control terminals: Enable, ALM output, possibly reference signals
- Feedback/Encoder: depends on the motor type used
- PE/Grounding: connect low-impedance
Control Board / Modules
- Power section with transistor output stage
- Control and regulation board for speed/current control
- Protection circuits (overcurrent, overvoltage, fault memory)
- Temperature monitoring
Alarms & Troubleshooting
(The 10 most important alarms of the DR series, based on the fault structure of the DR2 manual)
Alarms & Troubleshooting
| Code | Description | Typical Finding | Check | Remedy |
|---|
| A.10 | Overcurrent | Short circuit or defective power section | Measure U/V/W | Check/replace power section |
| A.30 | Regenerative Error | Regenerative power too high | Check RB | Reduce load, connect RB correctly |
| A.31 | Overspeed | Speed > setpoint | Check encoder/feedback | Check parameters, increase stability |
| A.40 | Overvoltage | DC bus too high | Measure input voltage | Check mains, install RB |
| A.41 | Undervoltage | Supply too low | Measure mains voltage | Stabilize supply |
| A.32 | Overcurrent Protect | Output stage fault, IGBT/IPM | Disconnect U/V/W | Replace device |
| A.51 | Motor Overspeed | Encoder error | Test encoder | Replace encoder/cable |
| A.71 | Overload High | Severe torque overload | Check current profile | Check mechanics/load |
| A.72 | Overload Low | Continuous overload | Check axis profile | Reduce load, adjust parameters |
| A.81 | Encoder Backup Error | Absolute value error | Check battery/encoder | Replace battery/encoder |
Typical Applications
- small CNC machine axes
- feeding and transport systems
- handling and assembly units
- compact automation environment
Service Notes
- Regular checking of the mains voltage
- Keep ventilation areas clean
- Regularly check motor cables and insulation
- Back up parameters before service
- Do not perform insulation measurements when installed
Repair Description
- Input check: Visual inspection, mains voltage measurement, check for short circuit in U/V/W
- Disassembly & Cleaning: Disassembly of the device, cleaning of dust/oil, visual inspection of the circuit boards
- Analysis: Checking the power output stage, overcurrent sensors, drivers, control circuits
- Repair: Replacement of defective power components, reworking critical solder joints
- Testing & Load Test: Test with reference motor, monitoring of temperature, feedback, and current
- Long-term Test & Conclusion: Continuous operation, final functional test, creation of a test report
