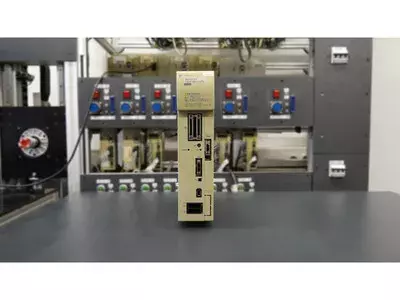

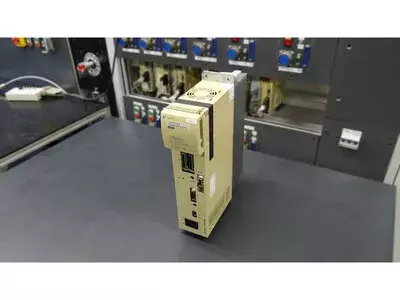

Overview
- Device category: Frequency converter / Inverter Unit
- Series/Class: MXN series, 200-V class
- Design: air-cooled, modular, service-friendly
Model designation
- CIMR = Control Inverter Motor Regulator
- MXN = MXN series (compatible with Siemens controls)
- 25P5 = Rated power 5.5 kW (200-V class)

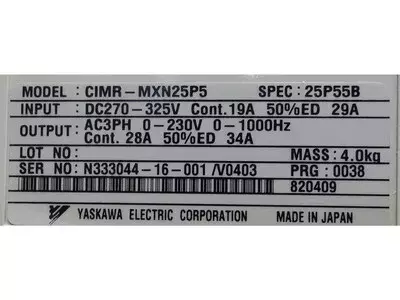

Technical Data
| Feature | Value |
|---|
| Manufacturer | Yaskawa Electric Corporation |
| Series | MXN |
| Model | CIMR-MXN25P5 |
| Power | 5.5 kW |
| Supply voltage | 3AC 200–230 V ±10 %, 50/60 Hz |
| Input current | approx. 28 A |
| Output voltage | 3AC 0–230 V (PWM-controlled) |
| Output current | 24 A rated |
| Control method | V/f or vector control |
| Cooling | Forced ventilation (fan unit) |
| Protection class | IP20 |
| Weight / Dimensions | approx. 6 kg / 260 × 140 × 180 mm |
Connections & Interfaces
- L1, L2, L3: Mains connection 3-phase 200 V
- U, V, W: Motor outputs
- P, N: DC link
- B1, B2: Braking resistor
- CN1: Control and signal input (start, stop, frequency specification, error output)
- CN2: Communication interface / feedback to CNC
- LED display: Display of status and error codes (e.g. AL20)
- PE: Protective earth connection, central on the housing
Control board / Assemblies
| Type | Board designation | Quantity |
|---|
| Control board | SGDK-CAS011LA-V 0038 Rev.A0 or DF0300545-A0 | 1 |
| Communication board / Option Card | SGDK-CF01A-V Rev.B0 or DF0300130-B0 | 1 |
| Power board | YPCT31448-1B | 1 |
| Power section | Power section (completely assembled output stage with IGBT and drivers) | 1 |
Alarms & Troubleshooting
| Code | Designation | Typical finding | Check | Remedy |
|---|
| 01 | Power Supply Error | Mains voltage missing or too low | Measure mains phases | Check power supply |
| 03 | DC Bus Voltage Error | DC link voltage outside setpoint | Check DC voltage at P/N | Check mains or braking resistor |
| 04 | Motor Overcurrent | Short circuit/overcurrent in output phase | Insulation test U/V/W | Check motor cable, motor or IGBT |
| 05 | Inverter Overheat | Overheating of the power unit | Check fan and air flow | Replace fan, clean cooling |
| 06 | Overload | Permanent overload | Check running profile | Adjust duty cycle |
| 07 | Input Voltage Fault | Incorrect phase sequence or voltage | Check L1/L2/L3 | Correct wiring |
| 10 | Encoder Comm. Error | No signal / communication error | Check CN2 connector | Fix encoder or cable defect |
| 20 | Motor Overheat | Thermal sensor reports overheating | Check motor thermistor | Improve ventilation |
| 30 | Overvoltage | DC link voltage > 400 V | P/N measurement | Check mains voltage, test braking resistor |
| 32 | Overcurrent / Short Circuit | Short circuit in the output | Continuity test | Check motor or transistor stage |
| 33 | Regenerative Overload | Braking energy too high | Check temperature, load | Use external braking resistor |
| 50 | Fan Stop | Cooling fan stopped | Check supply | Replace fan |
| 88 | Watchdog | Control error or CPU standstill | Perform reset | Replace control board |
Typical applications
- STAR CNC lathes and milling machines (Siemens control)
- Automated machine tools with Yaskawa drive systems
- Conveyor technology, pump and fan control
- Machining centers with regulated spindle speed
Service notes
- Regular cleaning of fans and cooling fins
- Replace electrolytic capacitors and fans preventively every 5–7 years
- Before working: Switch off the device completely and discharge the DC bus (at least 5 minutes)
- Save parameters (backup via CN1/EEPROM)
- Do not perform insulation measurements (Megger) on the installed device
Repair description
- Input check: Visual inspection, measurement of the DC bus voltage, check for short circuit in the power section, analysis of the error message (e.g. AL20 = Motor Overcurrent).
- Disassembly & Cleaning: Removal of the boards and heat sinks, thorough cleaning, renewal of the thermal paste, checking the fan unit.
- Analysis: Checking control, communication and power board (SGDK-CAS011LA-V, SGDK-CF01A-V, YPCT31448-1B) for defective components, aged capacitors and solder joints.
- Repair: Replacement of defective assemblies, preventive replacement of critical components (electrolytic capacitors, fans, relays, gate drivers), rework of oxidized contacts.
- Testing & Load test: Test run on STAR test bench with Siemens-Yaskawa control, monitoring of current, temperature, DC link voltage and control behavior.
- Endurance test & Conclusion: Several hours of continuous operation under load, checking the alarm logic and thermal stability, creating a test report with measured values.
