Overview

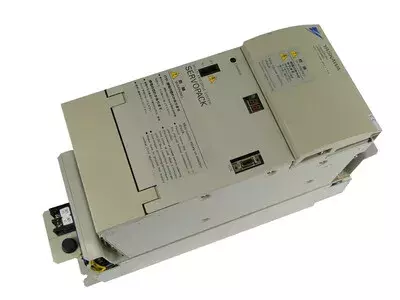

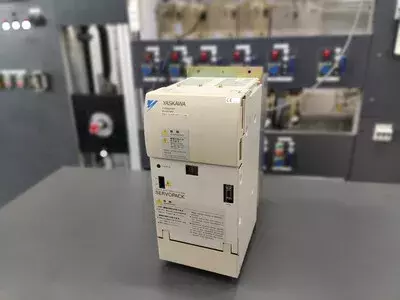

- Proven Converter Unit from the Yaskawa MR5 series, designed for the reliable setup of the DC link to supply downstream inverter and servo units. Robust industrial design, proven in continuous operation of machine tools and automated systems.
- Device category: Converter Unit (Rectifier / DC Link Supply)
- Series/Class: Yaskawa MR5 Series, 200-V class
- Design: compact, forced-air cooled, service-friendly

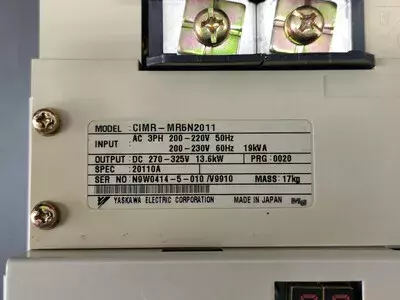

Model Designation
- CIMR = Yaskawa Inverter / Converter Platform
- MR5 = MR5 Series
- N = Mains connection variant
- 2011 = Power and current class
Technical Data
| Feature | Value |
|---|
| Input voltage | AC 3-phase 200–220 V (50 Hz) |
| Input voltage | AC 3-phase 200–230 V (60 Hz) |
| Input frequency | 50 / 60 Hz |
| DC link output | DC 270–325 V |
| Output current (Continuous, Cont.) | 25.8 A |
| Output current (30 min) | 39.3 A |
| Cooling | Forced ventilation |
| Protection class | n. a. |
| Weight / Dimensions | n. a. |
Connections & Interfaces
- R / S / T: Mains connection (AC input)
- P / N (DC+ / DC–): DC link output to Inverter/Servo
- PE / FG: Protective earthing
- MC (Magnet Contactor): integrated switching logic
- 7-Segment display: numerical error and status codes
Control Board / Assemblies
| Type (EN) | Designation on Board | Model Designation | Quantity |
|---|
| Control Board | 1PCB | YPHT31149-XD | 1 |
| Power Board | 2PCB | YPCT31244-1B or ETC626095 | 1 |
| Power Section | Power Unit | integrated rectifier / power semiconductor | 1 |
Alarms & Troubleshooting
| Code | Description | Typical Finding | Check | Remedy |
|---|
| 01 | Overcurrent | Output current exceeds protection threshold | Check wiring, mains, AC reactor, load | Eliminate cause, reduce load |
| 04 | Main circuit fuse blown | Main fuse tripped | Check transistor/load short circuit/ground | Repair power section |
| 05 | Overload | Continuous overload | Check load profile | Reduce load, check dimensioning |
| 11 | Output overvoltage | Output/DC voltage too high (200-V class approx. 400 V) | Check mains voltage and load | Eliminate cause |
| 12 | Main circuit undervoltage | Output/DC voltage too low | Check mains voltage | Stabilize supply |
| 13 | Control circuit undervoltage | Control voltage too low | Check Control Supply | Check supply/board |
| 14 | Servo unit power supply fault | Servo supply not normal | Check Control Supply | Check supply |
| 15 | Power supply frequency fault | Frequency deviation (50/60 Hz ±5%) | Check mains type | Correct mains supply |
| 16 | Initial charging fault | Pre-charge not completed | Check pre-charge circuit | Repair/replace unit |
| 17 | Power supply open phase | Phase failure | Check phases and terminals | Repair supply line |
| 23 | Built-in MC operation fault | Integrated contactor is not working | Check contactor/control | Replace unit |
| 43 | Heatsink overheat 1 | Heatsink too warm (warning level) | Check fan/environment | Improve cooling |
| 44 | Heatsink overheat 2 | Heatsink too warm (shutdown) | Check fan/environment | Repair cooling |
| 45 | Heatsink thermistor disconnection | Thermistor/environment too cold | Check sensor, raise ambient temperature | Replace unit if defective |
| 46 | Control PCB temperature fault 1 | Control board > 80 °C | Check environment/cooling | Improve cooling |
| 47 | Control PCB temperature fault 2 | Control board > 85 °C | Check environment/cooling | Improve cooling |
Typical Applications
- DC link supply for Yaskawa Inverters
- CNC machine tools
- Multi-axis servo and spindle systems
- Automated production facilities
Service Notes
- Regularly clean fans and heat sinks
- Regularly retighten mains and DC terminals
- Preemptively check pre-charge circuit and rectifier
- Do not perform insulation measurement (Megger) on the connected device
Repair Description
- Input check: Visual inspection, measurement of mains and DC link voltage, short-circuit test
- Disassembly & Cleaning: Removal of assemblies, thorough cleaning of dust and deposits
- Analysis: Checking rectifier, pre-charge circuit, magnetic contactor, control and power boards
- Repair: Replacement of defective assemblies and components, renewal of thermally stressed parts
- Testing & Load Test: Test of charging behavior, DC bus stability, and temperature profile under load
- Long-term test & Conclusion: Continuous run test, documentation of measurement results, final protocol
