For your information
- We offer for this displayed device sale, exchange and repair services.
- Prices for Servo-/Spindle Drives Power Supplies are standard prices for standard repair
- Devices for sell or exchange, was preventively overhauled in our workshop.
Learn more about...
Detailed information about Yaskawa Varispeed VS-626M5 device series
For improving quality, we have several test stands for Yaskawa Drives.
Our current brochure about Industrypart GmbH can be found in the download area.
We offer serial repairs for this product series
- Repair of many electronic assemblies according to standardized repair procedures with documentation.
- A larger repair capacity is possible for the same or similar orders
- Target group: machine manufacturers, service companies and distributors
Access to years of experience, specialists and equipment.
Find out more about our series repairs
Overview

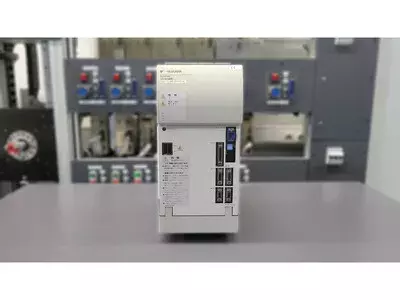

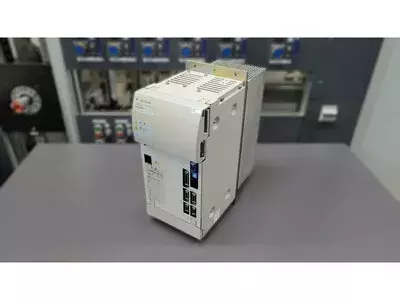

The Yaskawa CIMR-M5N2015 is a spindle inverter of the M5N series, designed for precise speed control in CNC and machine tools. It converts the stable DC link voltage into a three-phase AC voltage and thus supplies spindle or high-speed motors. With its robust design, reliable control and effective cooling, it is one of the proven drive units of the Yaskawa M5 series.
Model designation
- CIMR = Converter Inverter Module
- M5N = M5N series (successor to the M5A series)
- 2015 = Power rating (≈ 18.6 kW)

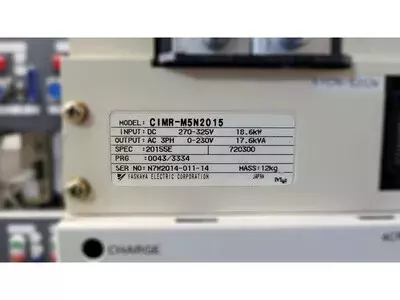

Technical Data
| Feature | Value |
|---|
| DC 270–325 V | 18.6 kW |
| AC 3-phase 0–230 V | 17.6 kVA |
| 0–400 Hz | n. v. |
| Forced ventilation (integrated fan) | 12 kg |
| Yaskawa Electric Corporation – Made in Japan | N7W2014-011-14 |
| PRG: 0043/3334 | |
Connections & Interfaces
- DC+ / DC-: Input from the DC link (270–325 V DC)
- U/V/W: Motor outputs (3-phase AC, 0–230 V)
- CN connections: Control and feedback signals
- PE (protective earth): connect low-resistance
- Cooling: active fan, thermally monitored
- Display: LED/7-segment for operating and fault conditions
Control board / assemblies
| Art | Bezeichnung auf Platine | Modellbezeichnung | Menge |
|---|
| Control board | 1PCB | YPHT31147-1x | 1 |
| Power board | 2PCB | YPCT21138-1B | 1 |
| Communication board | 3PCB | YPHT31150-xC | 1 |
| Power section | – | Power section 15K | 1 |
Alarms & Troubleshooting
| Code | Bezeichnung | Typischer Befund | Prüfung | Abhilfe |
|---|
| 2 | EEPROM/Flash Error | Parameter memory damaged | Check power supply | Rewrite EEPROM, perform reset |
| 3 | Main Circuit Error | Error in DC link monitoring | Check DC voltage | Replace control or power board |
| 4 | Parameter Error | Parameter range invalid | Back up parameters | Adjust software or settings |
| 16 | Overcurrent (Short Circuit) | Short circuit at the output / IPM error | U/V/W insulation test | Repair or replace power section |
| 17 | Earth fault | Insulation fault on motor cable | Perform measurement with Megger | Replace cable or motor |
| 33 | Overvoltage | DC link > 325 V | Measure supply voltage | Reduce input voltage |
| 41 | Undervoltage | DC voltage < 270 V | Check power supply | Correct mains supply |
| 45 | Fan error | Cooling disturbed or blocked | Check fan and sensor | Replace fan |
| 46 | Overheating | Heat sink > 80 °C | Temperature measurement | Improve cooling |
| 50 | Overload | Permanent load exceeding | Current measurement at the output | Reduce load |
| 64 | DC Overvoltage | DC link voltage too high | Measure voltage | Check mains supply |
| 65 | DC Undervoltage | DC link voltage too low | Check DC supply line | Stabilize supply |
| 81 | Overspeed | Motor over target speed | Check feedback | Adjust encoder and parameters |
| 88 | Watchdog | CPU/communication error | Perform restart | Check control board |
Typical applications
- CNC turning and milling centers
- High-speed spindle drives
- Machine tools with DC link
- Automated manufacturing with precise speed control
Service notes
- Clean fans and air ducts regularly
- Replace capacitors preventively every 8–10 years
- Check control boards for thermal aging
- Do not perform insulation measurement when installed
- Perform grounding over a large area and with low resistance
- Back up parameters and document software version
Repair description
- Input check: Visual inspection, measurement of the DC input voltage, check for short circuit and insulation faults
- Disassembly & cleaning: Removal, cleaning of dust and metal particles, renewal of thermal paste
- Analysis: Testing of control and power boards, capacitors, drivers and IGBT modules
- Repair: Replacement of defective modules, capacitors and fans, re-soldering of thermally stressed areas
- Testing & load test: Functional test with motor load, monitoring of temperature, current consumption and DC link voltage
- Endurance test & completion: Several hours of load test, creation of a measurement protocol, documentation and release for reinstallation
