Overview
- Device category: AC Servo Drive Unit
- Series/Class: MR-S3, 200-V class
- Design: solid metal housing, forced-air cooled, service-friendly, suitable for industrial use

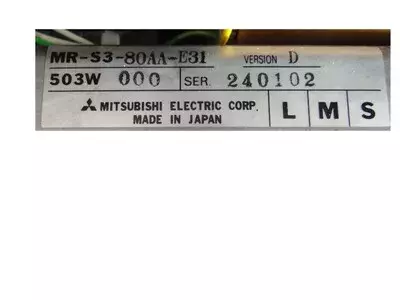

Model designation
- MR = Mitsubishi Drive System
- S3 = Series 3 (MR-S3 servo amplifier)
- 80AA = Power level 8.0 A / 200 V class
- E31 = Version with extended CNC communication (compatible with MDS/MELDAS systems)
Technical Data
| Feature | Value |
|---|
| Supply voltage | 3AC 200–230 V, 50/60 Hz |
| Rated power | approx. 1.5–2.0 kW |
| Output current | 8.0 A |
| DC link voltage | 270–311 V DC |
| Control | Digital/analog CNC interface (E31 compatible) |
| Cooling | Forced ventilation with high-performance fan unit |
| Weight / Dimensions | approx. 12 kg / 380×180×260 mm |
Connections & Interfaces
- L1 / L2 / L3: Power supply (3~ 200–230 V)
- U / V / W: Motor outputs (3~ to the servo motor)
- CN1: Control connection (CNC-compatible control and enable signals)
- CN2: Encoder connection (incremental or absolute encoder)
- CN3: Diagnostic interface or communication extension
- P / N / BR: DC link and brake resistor connection
- PE: Protective earth connection (solid, low-resistance)
- LED / 7-segment display: Display of operating and fault conditions

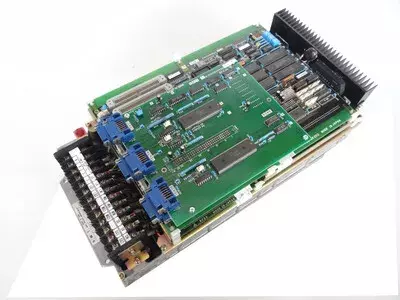

Control board / Assemblies
- Control board: CNC-compatible control with digital signal processing
- Power module: IGBT unit for 8 A continuous current
- Driver board: Gate control with short-circuit and overtemperature protection
- Power supply section: internal auxiliary voltage generation and monitoring
- Fan unit: regulated forced ventilation with temperature feedback
Alarms & Troubleshooting
| Code | Bezeichnung | Typischer Befund | Prüfung | Abhilfe |
|---|
| 01 | Undervoltage | Supply too low | Measure mains | Check voltage supply |
| 02 | Overcurrent | Short circuit in output or IPM | Check U/V/W | Check line / power section |
| 03 | Overvoltage | DC link voltage too high | Measure DC bus | Check mains voltage, connect brake resistor |
| 05 | Encoder error | No feedback signal | Check CN2 | Replace encoder / cable |
| 06 | Overtemperature | Insufficient cooling flow | Check fan function | Clean or replace fan |
| 07 | Regeneration error | Feedback overloaded | Measure brake resistor | Increase capacity |
| 09 | Memory error | EEPROM or CPU error | Reset / Diagnose | Replace control board |
| 12 | Control error | Internal processor error | Self-test | Replace amplifier |
| 32 | Overcurrent IPM | Short circuit / transistor damage | Insulation measurement | Replace power section |
| 35 | Communication error | CNC data exchange disrupted | Check CN1 | Check control cable / interface |
| 45 | Motor overtemperature | Thermal sensor in the motor active | Check temperature | Improve cooling |
| 50 | Overload | Permanent overcurrent load | Measure current profile | Check mechanics, adjust parameters |
| 55 | Absolute value error | Zero point data lost | Check encoder | Perform reference run |
Typical applications
- CNC milling and turning machines with MELDAS control
- Feed drives in machining centers
- Tool changers, rotary tables and axis systems
- Automation lines with precise synchronization
Service notes
- Clean and check fans and heat sinks regularly
- Thermally relieve power components (regular inspection)
- Back up parameters and document before repair
- Do not perform insulation measurement when installed
- Disconnect the connection to the CNC system only when de-energized
Repair description
- Input check: Visual inspection, voltage measurement, check for burn marks, loose connectors and thermal damage
- Disassembly & cleaning: Removal of the power and control section, thorough cleaning, renewal of thermal conductive materials
- Analysis: Testing of power section, driver circuits, capacitors, communication interface and temperature monitoring
- Repair: Replacement of defective IGBTs, gate drivers, relays and connectors, rework of thermal zones
- Testing & load test: Functional test with reference motor under rated current, monitoring of temperatures, voltage and current curves
- Endurance test & completion: Continuous operation under load for several hours, complete documentation of the measurement results and creation of the test report
