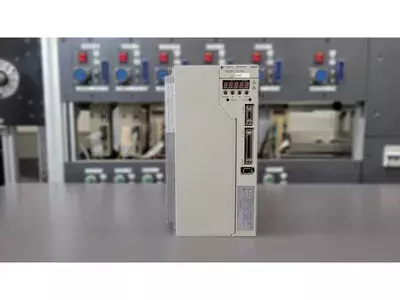

Repair and Exchange for Yaskawa SGDH-50AE Ver. 36A45

Servopack

ID: 6028

Buy 1 in stock	€ 1,820.00
Repair	€ 1,200.00
Exchange 1 in stock	€ 1,300.00

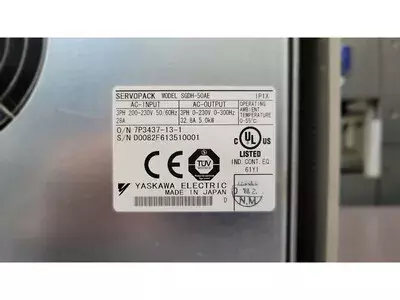

Technical Datasheet (*)

Brand	Yaskawa
Type	Servopack
Model	SGDH-50AE Ver. 36A45
Country Of Origin	MADE IN JAPAN
Input Current	28A
Input Frequency	50/60Hz
Input Voltage	200-230V
Output Current	32. 8A
Output Frequency	0-300HZ
Output Power	5. OkW
Output Voltage	0-230V
Phases	3PH
Protection Class	IP1X

* Note: The provided datasheet values may differ from the actual device.

Price: excl. VAT.
incl. VAT
Shipping calculated separately

Availability	Stock

Repair of Yaskawa Sigma II Servopacks

SGDH SGDM SGDA
SGDF SGDK

Yaskawa Sigma II Servopack

We test and repair Yaskawa Sigma II Servopacks
In addition, we also offer services for Yaskawa servo motors.

We specialize in the following series:

SGDH Σ-ΙΙ 200 Volt series Example: SGDH-10AE, SGDH-75AE
SGDH Σ-ΙΙ 400 Volt series Example: SGDH-05DE, SGDH-30DE
SGDH Σ-II Siemens/Yaskawa series Example: SGDH-2020A11AVY740, SGDH-20EEY338
SGDM Σ-ΙΙ series Example: SGDM-04ADA, SGDM-15DN
SGDA Σ-II series Example: SGDA-08VS, SGDA-02AS
SGDK Σ-II series Example: SGDK-101010AEA-V, SGDK-30AEA

Our repair process is preventive and includes a series of steps to ensure high repair quality.

Fault Analysis and Localization

What can you do?

Handling Parameters

When parameterizing, it is crucial to secure the settings early and to document jumper and key settings as well.

What should you pay attention to when parameterizing?

In most cases, motor parameters are stored in the drive or controller.
Obtain the appropriate documentation or software to set the parameters.
You can find more documentation on this topic at the end of this page or ask us.

The typical repair process for Yaskawa drive modules

The repair process for drive modules includes the following steps:

Preventive overhaul - replacement of all necessary defective and worn parts.
Intensive cleaning.
Comprehensive final and stress tests at our test benches.
Parameter adjustment or restoration of parameters.
Filling out documentation and checklists.

High-quality spare parts for high-quality repairs

For Yaskawa Sigma II Servopacks, we replace:

Electrolytic capacitors
Large buffer capacitors
Relays
Current measuring modules
Optocouplers

Additionally, we replace certain parts that have proven to fail frequently over several repairs and have therefore been statistically selected for replacement.

To counteract shortages and discontinuations, we use processor-oriented software solutions that monitor our inventory. We order some parts in advance, and for series repairs, we even secure enough spare parts for a year to ensure a large stock is always available.

Quality and level of repair

A professional repair requires the use of a test stand. For each new series, specially adapted and complex test equipment is developed. The devices are thoroughly tested for functionality by subjecting them to long-term stress tests.

The test is conducted on a test stand that simulates the processes as in a real processing plant.

The following is tested:

BUS control
POT/NOT (positive and negative over travel)
Encoder connection
Alarm conditions
Speed
Current and voltage consumption
Temperature
Parameters

We continuously expand our repair portfolio with new series

As drive and power electronics are often prematurely discontinued, you may find yourself under pressure to deliver replacements to your customers in a timely manner. We support you in analyzing shortages and work together on optimal solutions.

The typical process includes:

Development of test stations and procedures
Organization of spare parts
Preventive repair at the component level
If necessary, redevelopment or re-engineering of modules or entire devices

Information about the series

SGDH Sigma II Servopack:

SGDH-08AE-S
SGDH-15AE-S
...

Frequently Asked Questions

Drive module repair

In which quality/level are load tests performed at your company?

Complex and specially adapted test equipment is developed for each new series. Devices are tested with long-term load test thoroughly checked for functionality. Get an idea of our test facilities.

Do you have special spare parts, which are necessary for qualitative repair?

In times of shortages and discontinuations, we have process-oriented software solutions that monitor our inventories. We order some parts in advance, for series repairs even for 1 year, so that we can fall back on a large stock of spare parts. Certain modules are re-engineered by us.

Can you parameterize the devices?

If possible, a copy of the parameters is always read out and stored upon receipt. After successful repair, the data is compared and in case of exchange or sale, original parameters are transferred or restored to the new device. We have all the necessary hardware as well as software applications to parameterize Yaskawa devices according to the specifications.

What processes are involved in the repair of drive modules?

The repair process for drive modules includes, but is not limited to, the following:

Preventive overhaul - replacement of all necessary defective and used parts. E.g. electrolytic capacitors, transistors, optoelectronic components.
Intensive cleaning
Extensive final and load tests on our test stands
Parameter adjustment or parameter recovery

You can find more information on the process flow for drive module repair here.

Further information

What is the meaning of letters and numbers in the type designation

For a better understanding of all the options, which can be found in the type designation, we offer you a separate configurator.

Will I get a detailed repair report after a successful repair?

We document the repair process for every order. You can download a detailed description of the process here.

Do you commission new or unknown equipment?

We are continuously looking for new areas of activity. After consultation with the customer, we determine the necessary steps for a safe and qualitative repair

Can it happen that after repair my device continues to show errors?

It may happen that error messages continue to be displayed with the connected device. Already during the analysis of the errors, we give the customers suggestions for solutions for different malfunctions and errors. error cases, if we suspect further error causes. Errors and faults are documented, among other things, in the log file of the respective device, which may indicate, for example, encoder communication problems, cable defects or overloads.

What does serial repair or overhaul mean

Many of our customers have defective devices of the same model in larger quantities. We have optimized our processes for series repair and have the capacity to repair many devices in parallel quickly and to a high repair many devices in parallel.

Cost & Warranty

What are the costs for repair or overhaul? What does "flat repair rate or standard repair price" mean?

The repair process itself represents a high degree of technical complexity, which we always want to master with a qualitative and long-term solution for you. solution for you. However, the maintenance of these quality characteristics requires, to agree on a repair flat rate or standard repair price. We communicate honestly and transparently all the information you need. For example, prices, previous and completed work steps, delivery times, etc.

Is there a warranty for the respective repair?

Basically we give 12 months warranty.

Alarme_1.pdf (0.28 MB)

Sigma2_Alarms_CompleteList.pdf (0.12 MB)

General_Information_Servo_Spindle_Power_Supply.pdf (0.59 MB)

SGDH_SGMxH.pdf (7.94 MB)

Sigma_mini_series.pdf (5.15 MB)

Yaskawa_SGDH _ SGMGH_Typen_Bezeichnung_Spezifikation.pdf (0.47 MB)

You can contact us in the following way:

Chat with our customer support, write us a message: [email protected] or call us: +49 6251 9888430

To the Yaskawa Catalog Contact us

We offer serial repairs for this product series

Repair of many electronic assemblies according to standardized repair procedures with documentation.
A larger repair capacity is possible for the same or similar orders
Target group: machine manufacturers, service companies and distributors

Access to years of experience, specialists and equipment. Find out more about our series repairs

Serial Repairs
