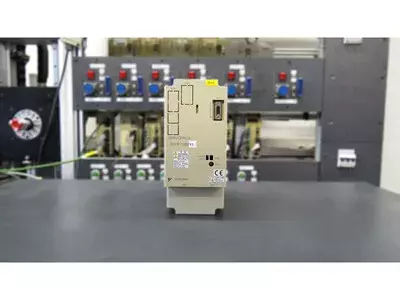

S1 AMP 200V 3PH 1KW
For your information
- We offer for this displayed device sale, exchange and repair services.
- Prices for Servo-/Spindle Drives Power Supplies are standard prices for standard repair
- Devices for sell or exchange, was preventively overhauled in our workshop.
Learn more about...
Detailed information about Yaskawa SGDB Servopacks
We offer serial repairs for this product series
- Repair of many electronic assemblies according to standardized repair procedures with documentation.
- A larger repair capacity is possible for the same or similar orders
- Target group: machine manufacturers, service companies and distributors
Access to years of experience, specialists and equipment.
Find out more about our series repairs

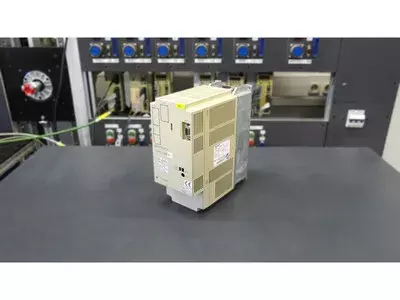

Overview
The Yaskawa SGDB-10VD is a servo amplifier from the proven Σ series (SGDB series) for 200 V servo motors. This variant features the standard 200 V supply ("V") and the D-Command Interface, which is a classic, non-MECHATROLINK-based control interface. With an output power of 0.85 kW, the SGDB-10VD is ideal for CNC feed axes, handling modules, transfer stations, and industrial positioning systems.
Overview
- Device category: AC Servo Amplifier
- Series: SGDB (Σ Series)
- Design: convection-cooled, robust industrial design
Model Designation
- SGDB – Σ-Series Servopack
- 10 – Power size 1.0 kW (actual rated power: 0.85 kW)
- V – Supply 200 V (Region/Variant identifier)
- D – Standard Command Interface (no MECHATROLINK)
- (Option field empty) – no further additional options

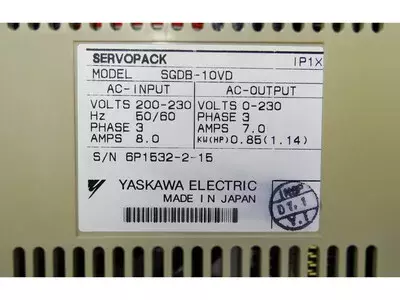

Technical Data
| Feature | Value |
|---|
| Input voltage | 3~ 200–230 V AC |
| Mains frequency | 50/60 Hz |
| Input current | 8.0 A |
| Output voltage | 0–230 V AC |
| Output current | 7.1 A |
| Output power | 0.85 kW (1.14 HP) |
| Phases | 3 |
| Interface | D-Type Standard Command Interface |
| Cooling | Convection cooling |
| Protection class | IP1X |
| Weight/Dimensions | n. a. |
Connections & Interfaces
- L1 / L2 / L3 – AC Mains Input
- U / V / W – Motor Output (Sigma motors 0.85–1.0 kW class)
- CN1 – Classic control interface (Enable, Alarm, I/O, analog references)
- CN2 – Encoder connection (Incremental encoder)
- BR+ / BR– – Brake resistor
- PE – Grounding
- LED/7-Segment Display – Operation and fault diagnosis
Control Board / Modules
| Type | Designation on Board | Quantity | Note |
|---|
| Control Board | SGDB-CADV (typical designation) | 1 | D-Interface, controller logic, optocouplers |
| Power Section | n. a. | 1 | Power output stage (IGBT), driver, rectifier |
Alarms & Troubleshooting
| Code | Description | Typical Finding | Check | Remedy |
|---|
| A.10 | Overcurrent / Overheating | Short circuit U/V/W, IGBT defective | Insulation, IGBT test | Repair power section |
| A.30 | Regeneration error | RB open / incorrectly dimensioned | RB circuit | Connect/replace RB |
| A.32 | Regeneration overload | RB power too low | Check Reg energy | Use larger RB |
| A.40 | Overvoltage | Mains voltage too high | Measure supply | Correct voltage supply |
| A.41 | Undervoltage | Voltage dip | Check mains load | Check transformer/cable |
| A.51 | Overspeed | Encoder/Phase error | Phase sequence, Encoder | Correct wiring |
| A.71 | Short-term overload | Blockage, shock load | Check mechanics | Reduce load |
| A.72 | Continuous overload | Axis profile too harsh | Temperature/Current trend | Change parameters |
| A.84 | Encoder data error | Signal error, encoder damaged | Scope measurement, cable | Replace encoder |
| A.b3 | Current detection error | Sensor defect | Current sensor/Gate driver | Board repair |
Typical Applications
- CNC feed and positioning axes
- Machine tools (X/Y/Z or secondary axes)
- Automated handling systems
- Pick & Place systems
- Transfer and feeding modules
Service Notes
- Keep ventilation openings clear, keep the device clean
- Regularly check power modules and electrolytic capacitors
- Wire the D interface correctly (signal level, shielding)
- Ensure low-resistance grounding
- Route encoder and control cables separately from power cables
- Back up parameters before service interventions
- Do not perform Megger measurements across control/encoder lines
Repair Description
- Initial inspection: Visual check, insulation measurement, DC bus voltage, basic function test
- Disassembly & Cleaning: Removal of dust/oil, cleaning of boards, replacement of thermal pads
- Analysis: Control board (SGDB-CADV), optocouplers, controller section, power transistors, rectifier, capacitors
- Repair: Replacement of defective IGBTs, rectifiers, driver ICs, electrolytic capacitors; Reworking solder joints in thermally stressed areas
- Functional test: Test run with 1 kW motor, monitoring of current, temperature, and fault thresholds
- Long-term test: Several hours of continuous operation under load, documentation, and final protocol
