Overview

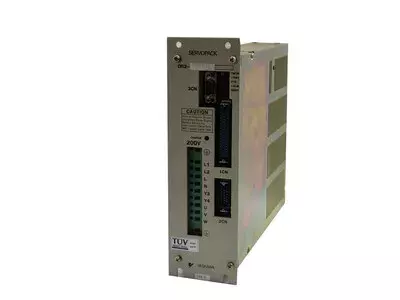

The Yaskawa Servopack DR2-04AC belongs to the long-established DR2 series for compact, high-performance AC servo drives. These devices have always been designed for reliable axis movements in machine tools, handling units, and automation systems. The robust metal construction, combined with IP2X protection, ensures a long service life in continuous industrial operation.
Overview
- Device category: AC Servo Amplifier
- Series/Class: DR2 Series, 200 V Class
- Design: compact, air-cooled, service-friendly
Model Designation
- DR = Drive Regulator / Servopack
- 2 = DR2 Series
- 04 = Power size approx. 0.4 kW
- AC = AC Input & AC Output
Technical Data
| Feature | Value |
|---|
| AC Input Voltage | 200–230 V |
| Frequency | 50/60 Hz |
| Input Phase | 1-Phase |
| Input Current | 5.1 A |
| AC Output Voltage | 0–230 V |
| Output Phase | 3-Phase |
| Output Current | 2.6 A |
| Output Power | 0.4 kW (0.54 HP) |
| Protection Class | IP2X |
| Cooling | natural convection |
| Weight/Dimensions | n. a. |
Connections & Interfaces
- L1 / L2: Supply 200–230 V AC
- U / V / W: 3-Phase Motor Output
- Control Interfaces: Enable, ALM, possibly analog/digital depending on machine
- Feedback/Encoder: depends on the motor used
- PE/Grounding: low-impedance, large-area connection
Control Board / Modules
- Power section (transistor output stage)
- Controller board for current and speed control
- Protection circuits: overcurrent, overtemperature, overvoltage
- Internal diagnosis and fault evaluation
Alarms & Troubleshooting
| Code | Description | Typical Finding | Check | Remedy |
|---|
| A.10 | Overcurrent | Short circuit on U/V/W, defective output stage | Measure motor cable | Check/replace power section |
| A.30 | Regenerative Error | Regenerative power too high | Check RB connection | Reduce load, connect RB correctly |
| A.31 | Overspeed | Speed too high, encoder problem | Check feedback | Adjust parameters |
| A.40 | Overvoltage | DC bus > setpoint | Check input voltage | Stabilize mains |
| A.41 | Undervoltage | DC bus too low | Measure supply | Check power supply |
| A.32 | Overcurrent Protect | IGBT/IPM damage | Disconnect U/V/W, switch on again | Replace Servopack |
| A.51 | Motor Overspeed | Inconsistent encoder values | Test encoder | Replace encoder/cable |
| A.71 | Overload High | severe mechanical overload | Check current profile | Check mechanics/load |
| A.72 | Overload Low | continuous overload | Check duty cycle | Reduce load |
| A.81 | Encoder Backup Error | Absolute value loss | Check battery/encoder | Replace battery/encoder |
Typical Applications
- Machine tools (small axis drives)
- Mounting and pick-and-place systems
- Packaging and feeding systems
- Small and medium automation axes
Service Notes
- Regular cleaning of ventilation openings
- Check motor cable for insulation and kinks
- Back up parameters before every service operation
- Do not perform insulation measurement with Megger on the installed device
- Observe ambient temperature and control cabinet installation
Repair Description
- Input check: Visual inspection, odor check, mains voltage measurement, U/V/W short circuit test
- Disassembly & Cleaning: Removal of dust, oil, chips, careful opening and cleaning of the boards
- Analysis: Diagnosis of power transistors, driver stages, sensor technology, and control loops
- Repair: Replacement of defective power components, reworking thermally stressed solder joints
- Testing & Load Test: Test with reference motor, monitoring of current, feedback, temperature
- Long-term Test & Conclusion: several hours of operation under load, final protocol for quality assurance
