Overview

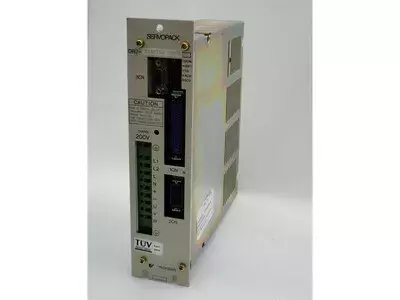

The Yaskawa Servopack DR2-01AC is a proven AC servo amplifier for compact drive axes in the lower power range. Due to its robust design, stable current control, and reliable protection functions, it is suitable for machine tools, automated handling systems, and precise process axes. The design is traditionally service-friendly and has always been designed for long service life.
Overview
- Device category: AC Servo Amplifier
- Series/Class: DR2 Series, 200-V class
- Design: air-cooled, closed metal construction, industrial grade
Model Designation
- DR = Drive Regulator (Servopack)
- 2 = DR2 Series
- 01 = Power size 0.1 kW / 1 A class
- AC = AC Input / AC Motor Output
Technical Data

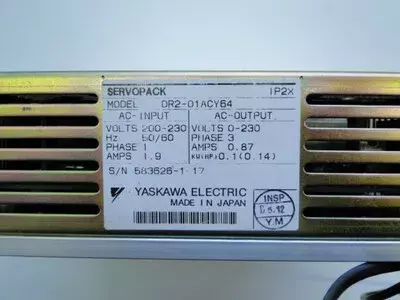

| Feature | Value |
|---|
| AC input voltage | 200–230 V AC |
| Input current | 1 A |
| Input phase | 1-Phase |
| Frequency | 50/60 Hz |
| AC output voltage | 0–230 V AC |
| Output phase | 3-Phase |
| Output current | 0.87 A |
| Output power | 0.1 kW |
| Protection class | IP2X |
| Cooling | Natural convection |
| Weight/Dimensions | n. a. |
Connections & Interfaces
- L1 / L2: Supply input 200–230 V AC
- U / V / W: Motor output 3-Phase
- Control terminals (depending on machine): I/O for Enable, Alarm signal, Feedback
- Encoder signal: dependent on the motor/feedback type used
- Grounding: large area and low impedance
Control Board / Modules
- Power output stage for 3-phase motors
- Control board for regulation & monitoring
- Internal protection and fault evaluation
- Temperature monitoring & overcurrent detection
Alarms & Troubleshooting
(10 most important alarms, based on alarm description page 406 of the manual and typical DR series errors; Source: TSE-S800-17D-1.pdf)
Alarms & Troubleshooting
| Code | Designation | Typical Finding | Check | Remedy |
|---|
| A.31 | Overspeed | Motor rotates faster than setpoint | Check feedback | Check parameters & load |
| A.10 | Overcurrent | Overcurrent in output stage | Short circuit U/V/W | Check power section |
| A.30 | Regenerative Error | Regeneration power too high | Measure braking resistor | Reduce load, check RB |
| A.41 | Undervoltage | DC bus too low | Measure supply | Stabilize mains voltage |
| A.40 | Overvoltage | DC bus too high | Overvoltage input | Check mains, check RB option |
| A.51 | Motor Overspeed | Encoder signal faulty | Check encoder & cable | Replace faulty parts |
| A.32 | Overcurrent Protect | IPM/Transistor error | Disconnect U/V/W, test again | Replace Servopack |
| A.71 | Overload High | Axis severely overloaded | Check current profile | Check mechanics, adjust parameters |
| A.72 | Overload Low | Continuous overload | Check work profile | Reduce load |
| A.81 | Encoder Backup Error | Absolute value memory faulty | Check battery/encoder | Change battery, homing procedure |
Typical Applications
- CNC small axes
- Automatic feeding systems
- Precise handling systems
- Small machines & assembly systems
Service Notes
- Regularly check supply voltage
- Check motor/power cables for insulation
- Keep environment free of oil mist & chips
- Regularly back up parameters
- No Megger measurement when installed
Repair Description
- Input check: Visual inspection, smell test, measurement of power supply & DC bus, short circuit check
- Disassembly & Cleaning: Opening the housing, removal of dust/oil, cleaning of the boards
- Analysis: Checking power transistors, IGBT stage, diodes, driver circuits, solder joints & control
- Repair: Replacement of defective power components, reworking critical solder joints, preventive replacement of stressed components
- Testing & Load Test: Function test with reference motor, monitoring of current, temperature & feedback
- Long-term test & Conclusion: several hours of continuous operation, final test report, release for use
