Overview

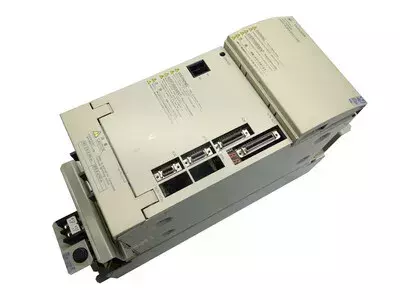

Proven frequency inverter of the Yaskawa M5 series for robust industrial applications. Designed for reliable continuous operation, precise speed control, and service-friendly maintenance in demanding environments.
Overview
- Device category: AC Inverter / Frequency Converter
- Series/Class: Yaskawa M5 Series, 200-V class
- Design: compact, forced-air cooled, suitable for industrial use
Model Designation
- CIMR = Yaskawa Inverter (Controller Inverter Motor Drive)
- M5 = M5 Series
- A = 200-V class
- 20110 = Power/Current class
- XXXB = Variant and equipment identifier
Technical Data
| Feature | Value |
|---|
| DC Input (DC Link) | DC 270–325 V |
| DC Input Current (Continuous) | 35.7 A |
| DC Input Current (30 min) | 52.4 A |
| Output | 3AC 0–230 V, PWM controlled |
| Output Frequency | 0–1000 Hz |
| Output Current (Continuous) | 40 A |
| Output Current (30 min) | 56 A |
| Cooling | Forced-air cooling |
| Mass | 17 kg |
| Weight / Dimensions | Weight: 17 kg, Dimensions: n. a. |

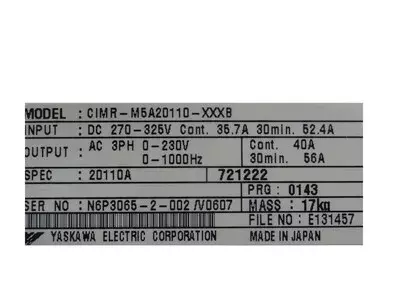

| Nameplate Specification | 20110A |
Connections & Interfaces
- P / N (DC+ / DC–): DC link input
- U / V / W: Motor output
- PE / FG: Protective earth
- 6CN: Control/Status signals (including error code outputs FC0–FC3, depending on version)
- 7-Segment Display: Status and error codes
Control Board / Assemblies
| Designation | Type | Part Number | Quantity |
|---|
| 1PCB | Control Board | YPHT31147-1F | 1 |
| 2PCB | Base Drive | YPCT31243-2C | 1 |
| 3PCB | Communications Board | YPHT31150-2C | 1 |
| Power Transistor | IGBT Module | 2MBI100N-060-10 | 2 |
Alarms & Troubleshooting
| Code | Designation | Typical Finding | Check | Remedy |
|---|
| AL-01 | Overcurrent | Short circuit, Overload | Check U/V/W, Check load | Check/replace power section |
| AL-02 | Ground fault | Insulation fault Motor/Cable | External insulation test | Repair motor/cable |
| AL-04 | Main circuit fuse blown | DC fuse defective | Check fuse/power section | Repair power section |
| AL-05 | Inverter output overload | Continuous overload | Check load profile | Reduce load, Check parameters |
| AL-11 | Main circuit overvoltage | Regeneration too high | Check DC bus | Check braking/load conditions |
| AL-12 | Main circuit undervoltage | Unstable supply | Check DC bus/Mains | Stabilize supply |
| AL-30 | Encoder signal cable disconnection | Feedback disturbed | Check encoder cable | Repair cable/connector |
| AL-43/44 | Heatsink overheat | Insufficient cooling | Check fan/filter | Repair fan/cooling |
| AL-48 | Internal cooling fan fault | Fan stopped | Check fan | Replace fan |
Typical Applications
- Machine tools and CNC units
- Conveyor and handling technology
- Spindle and auxiliary axis drives
- Industrial plants with variable speed control
Service Notes
- Regularly clean fans, heat sinks, and air ducts
- Retighten screw and plug connections
- Back up parameters before service work
- Do not perform insulation measurement (Megger) on the installed device
Repair Description
- Input inspection: Visual check, DC link measurement, short circuit test of the power section
- Disassembly & Cleaning: Removal of assemblies, thorough cleaning of dust and oil deposits
- Analysis: Testing of power semiconductors, driver stages, control and communication boards
- Repair: Replacement of defective assemblies and components, preventive replacement of thermally stressed parts
- Testing & Load Test: Test run on the test bench under load, monitoring of current, temperature, and DC ripple
- Long-term Test & Conclusion: Continuous operation test, documentation of measurement results, final protocol
