Introduction

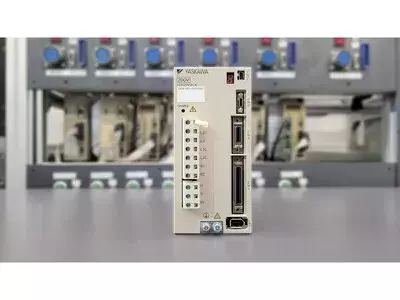

The Yaskawa Servopack CACR-5R5-PD1VDS01 is a proven servo amplifier for precise drive tasks in industrial environments. Robustly built and traditionally used in machines requiring high quality standards, it is particularly suitable for reliable continuous operation with consistent control quality.
Overview

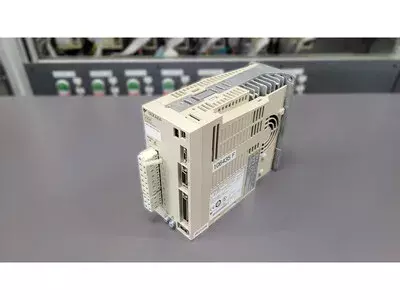

- Device category: AC Servo Amplifier (Servopack)
- Series/Class: CACR series (Legacy/Industrial platform), 200V class
- Power rating: 0.75 kW (750 W)
- Design: compact, forced-air cooled, service-friendly
Model Designation
- CACR = Yaskawa AC Servo Drive Series
- 5R5 = Power/Current class of the series
- PD1 = Version / Interface variant (series dependent)
- VDS01 = Design/OEM variant, version identifier
Technical Data

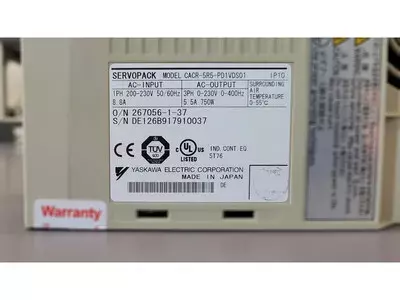

| Feature | Value |
|---|
| Manufacturer | Yaskawa Electric Corporation |
| Input voltage | 1 Ph 200–230 V AC, 50/60 Hz |
| Input current | 8.8 A |
| Output voltage | 3 Ph 0–230 V AC, 0–400 Hz |
| Output current | 5.5 A |
| Output power | 0.75 kW |
| Ambient temperature | 0–55 °C |
| Cooling | Forced ventilation (Fan) |
| Protection class | IP10 |
| Weight/Dimensions | n. a. |
Connections & Interfaces
- L / N: Mains input 1 Phase 200–230 V
- U / V / W: Motor outputs
- RB / Brake resistor: Braking/Regeneration connection (model dependent)
- Encoder: Feedback connection (plug/cable dependent on machine)
- Control I/O: Enable, Alarm, Ready, References (machine dependent)
- Status display: LED/7-Segment (depending on version)
Control Board / Modules
| Module | Description | Quantity |
|---|
| Control Board | Control, logic, I/O evaluation | 1 |
| Power Board | Output stage/Power section including driver | 1 |
| Power Supply Section | Auxiliary supplies for logic/encoder | 1 |
| Cooling | Fan and heat sink | 1 |
Alarms & Troubleshooting (10 most important)
| Code | Designation | Typical finding | Check | Remedy |
|---|
| A.10 | Overcurrent | Short circuit motor/cable, power section defective | Measure U/V/W and motor | Check motor/cable, repair power section |
| A.20 | Overvoltage | Regeneration, faulty braking | Check mains voltage, RB | Check brake resistor/supply |
| A.30 | Undervoltage | Mains problem, internal supply unstable | Measure input voltage | Stabilize mains supply, check power supply unit |
| A.33 | Brake error | Brake electronics unstable/defective | Check brake signal/RB | Check and repair brake electronics |
| A.40 | Overtemperature | Fan failure, heat sink dirty | Check airflow/temperature | Clean, replace fan |
| A.50 | Encoder error | Signal loss, cable problem | Check encoder signals | Check encoder/cable, secure plug connection |
| A.51 | Encoder communication | Contact problems, corrosion | Check plug | Clean contacts, replace plug |
| A.70 | Servo enable error | Enable signals implausible | Check I/O logic | Correct control/signals |
| A.80 | Internal control error | Aged electronics, logic error | Check voltages/reset | Check electronics, repair required |
| A.90 | Initialization error | Error during startup | Check supply/logic | Stabilize supply, check control section |
Typical Applications
- Machine tools and special machinery
- Handling and positioning axes
- Automation systems with 750 W servo motors
- Production facilities with continuous servo operation
Service Notes
- Regularly clean fans and heat sinks
- Check plug connections and encoder cables for seating/corrosion
- Save parameters and settings before intervention
- Do not perform insulation measurement (Megger) on the installed device
- In case of overcurrent/overvoltage alarms, check mechanics, braking, and load profile
Repair Description
- Initial inspection: Visual check, measurement of mains supply, short-circuit test on U/V/W, document fault pattern
- Disassembly & Cleaning: Removal, thorough cleaning, inspection of plugs, heat sink, and fan
- Analysis: Testing of power section, driver stage, power supply section, and control logic, testing of the encoder interface
- Repair: Replacement of defective modules and components, rework of solder joints, preventive replacement of fan and aged components
- Testing & Load Test: Function test with reference motor, monitoring of current, temperature, and braking behavior
- Long-term Test & Conclusion: Continuous operation under load, documentation with final protocol
