Overview
- Device category: AC Servo Drive Unit
- Series/Class: MR-S3, 200-V class
- Design: solid metal housing, forced-air cooled, service-friendly

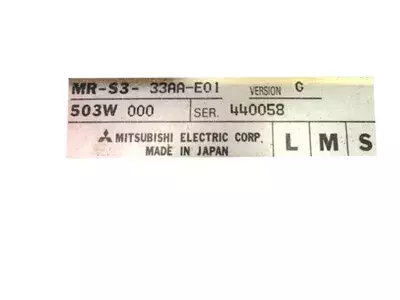

Model designation
- MR = Mitsubishi Drive System
- S3 = Series 3 (MR-S3 Servo Amplifier)
- 33AA = Power stage 3.3 A / 200 V class
- E01 = Standard version with analog setpoint interface
Technical Data
| Feature | Value |
|---|
| Supply voltage | 3AC 200–230 V, 50/60 Hz |
| Rated power | approx. 0.5 kW |
| Output current | 3.3 A |
| DC link voltage | 270–311 V DC |
| Control voltage | internally generated |
| Cooling | Forced air cooling (fan) |
| Weight / Dimensions | approx. 12 kg / 380×180×260 mm |
Connections & Interfaces
- L1 / L2 / L3: Mains supply 3~ 200–230 V
- U / V / W: Motor outputs to the servo motor
- CN1: Control and setpoint interface (analog/pulse)
- CN2: Encoder connection (feedback line)
- CN3: Communication/diagnostic port
- P / N / BR: Connection for DC link and braking resistor
- PE: Protective earth, connect low-resistance
- LED/Display: Display of operating states and alarm codes

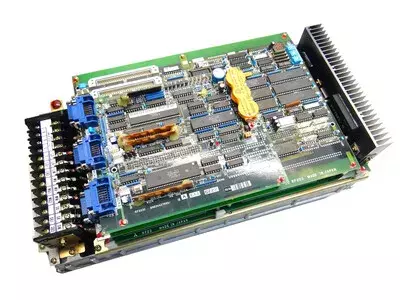

Control board / Assemblies
- Control board: Controller and logic unit with parameter control
- Power board: IGBT output stage for motor current control
- Driver board: Control for gate signals
- Power supply module: internal supply and protection monitoring
Alarms & Troubleshooting
| Code | Designation | Typical finding | Check | Remedy |
|---|
| 01 | Undervoltage | Mains voltage too low | Measure mains | Stabilize supply |
| 02 | Overcurrent | Short circuit or IPM error | Check U/V/W | Check line and IGBT |
| 03 | Overvoltage | DC link above limit | Measure DC | Check mains, connect braking resistor |
| 05 | Encoder error | No signal from the encoder | Check CN2 | Check encoder/cable |
| 06 | Over temperature | Overheating detected | Check cooling | Clean or replace fan |
| 07 | Regeneration error | Overload in the feedback circuit | Check braking resistor | Increase or replace resistor |
| 09 | Memory error | EEPROM or CPU error | Reset / Diagnose | Replace control board |
| 12 | CPU/Control error | Internal logic fault | Perform self-test | Replace servo amplifier |
| 32 | Overcurrent IPM | Short circuit detected | Insulation test | Replace power section |
| 45 | Motor over temperature | Thermal sensor active | Check temperature | Check motor/fan |
| 50 | Overload | Overcurrent in continuous operation | Check current profile | Relieve mechanics |
| 55 | Absolute value error | Zero point data lost | Check encoder | Reset zero point |
Typical applications
- CNC milling and turning machines
- Tool changers and feed drives
- Machining centers with high precision
- Automated production systems
Service notes
- Clean fan and cooling fins regularly
- Back up parameters and EEPROM
- No insulation measurement on the built-in device
- Check all plug connections regularly
- Check capacitors and power modules preventively
Repair description
- Input check: Visual inspection, voltage measurements, check for burn marks and cold solder joints
- Disassembly & Cleaning: Disassembly of the housing, cleaning of the power sections, renewal of the thermal paste
- Analysis: Testing of the power section, gate control, DC link capacitors and optocouplers
- Repair: Replacement of defective components, rework of conductor tracks, testing of the fan and temperature circuits
- Testing & Load test: Function test under load, simulation of typical operating conditions, monitoring of current and temperature
- Endurance test & Conclusion: Continuous operation over several hours, recording of all operating values, creation of a final report
