Production Downtime on a Haas Milling Machine Caused by Mitsubishi FR-A220E-5.5K-UL Inverter with Spindle Drive Fail and E.OU3 Error
Introduction as a Real Service Case.
A Haas milling machine experienced a complete spindle failure during machining. The spindle would no longer accelerate, the machining process stopped, and the machine displayed the message “Spindle Drive Fail”.
The initial inspection inside the electrical cabinet immediately led to the installed Mitsubishi FR-A220E-5.5K-UL inverter. The inverter display showed error E.OU3. This clearly indicated that the issue was not related to the NC program, but to the spindle drive system, DC bus, braking behavior, or load condition of the frequency inverter.
The FR-A220E-5.5K-UL belongs to the Mitsubishi FREQROL-A / FR-A200E series. The uploaded Mitsubishi Instruction Manual describes these units as Transistorized Inverters of the FR-A200E(EC) product line.
Initial Diagnosis

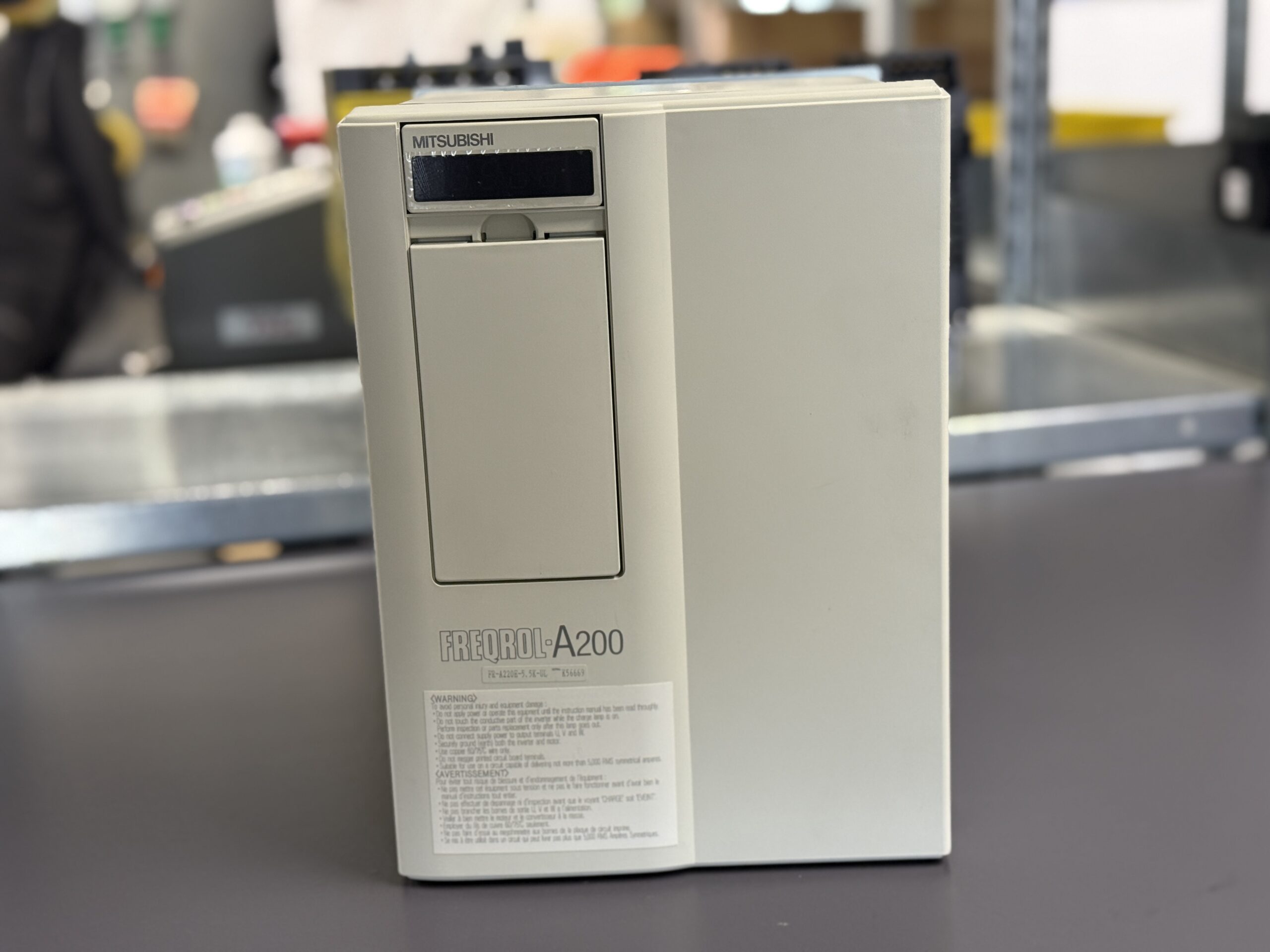

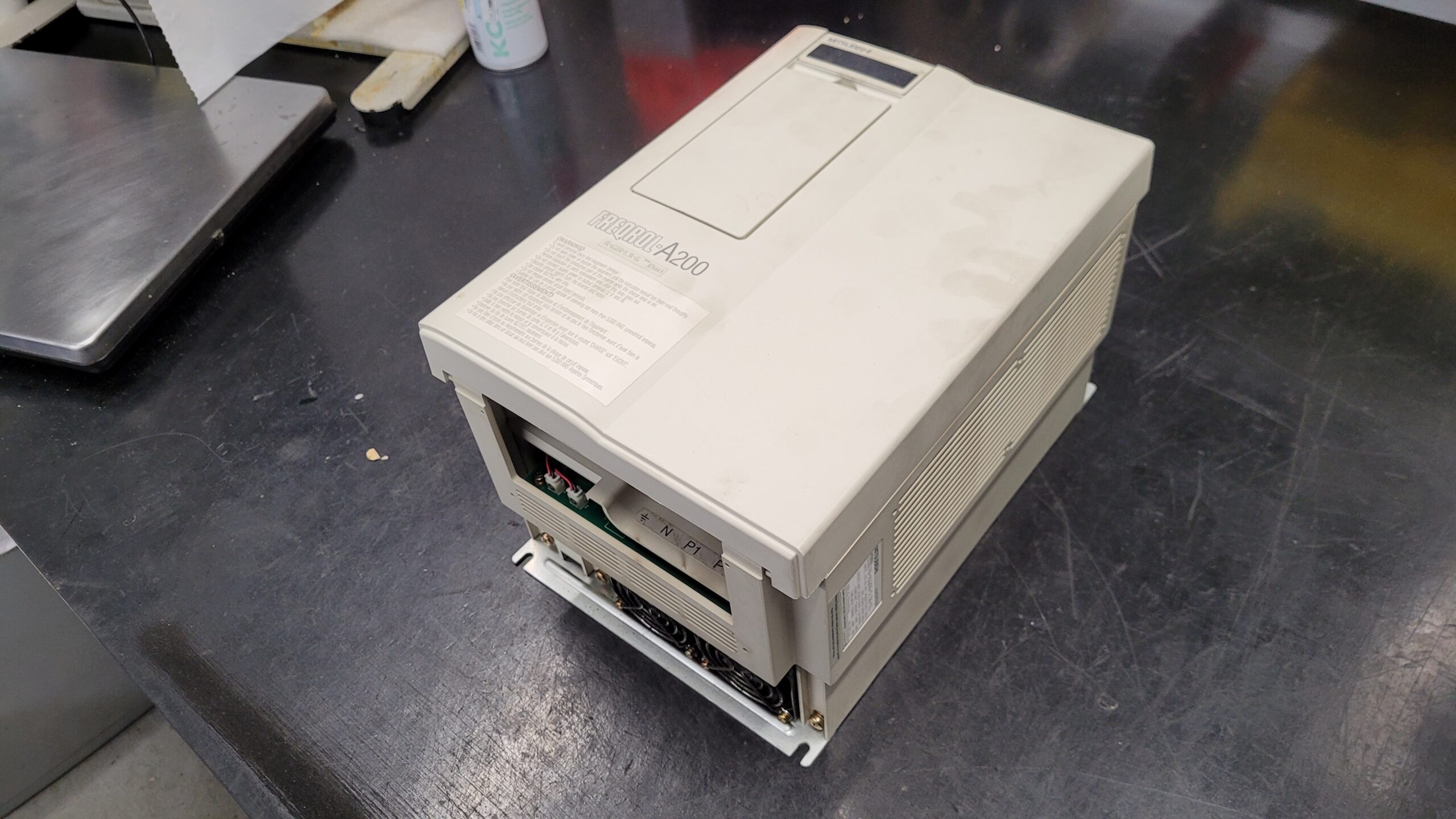

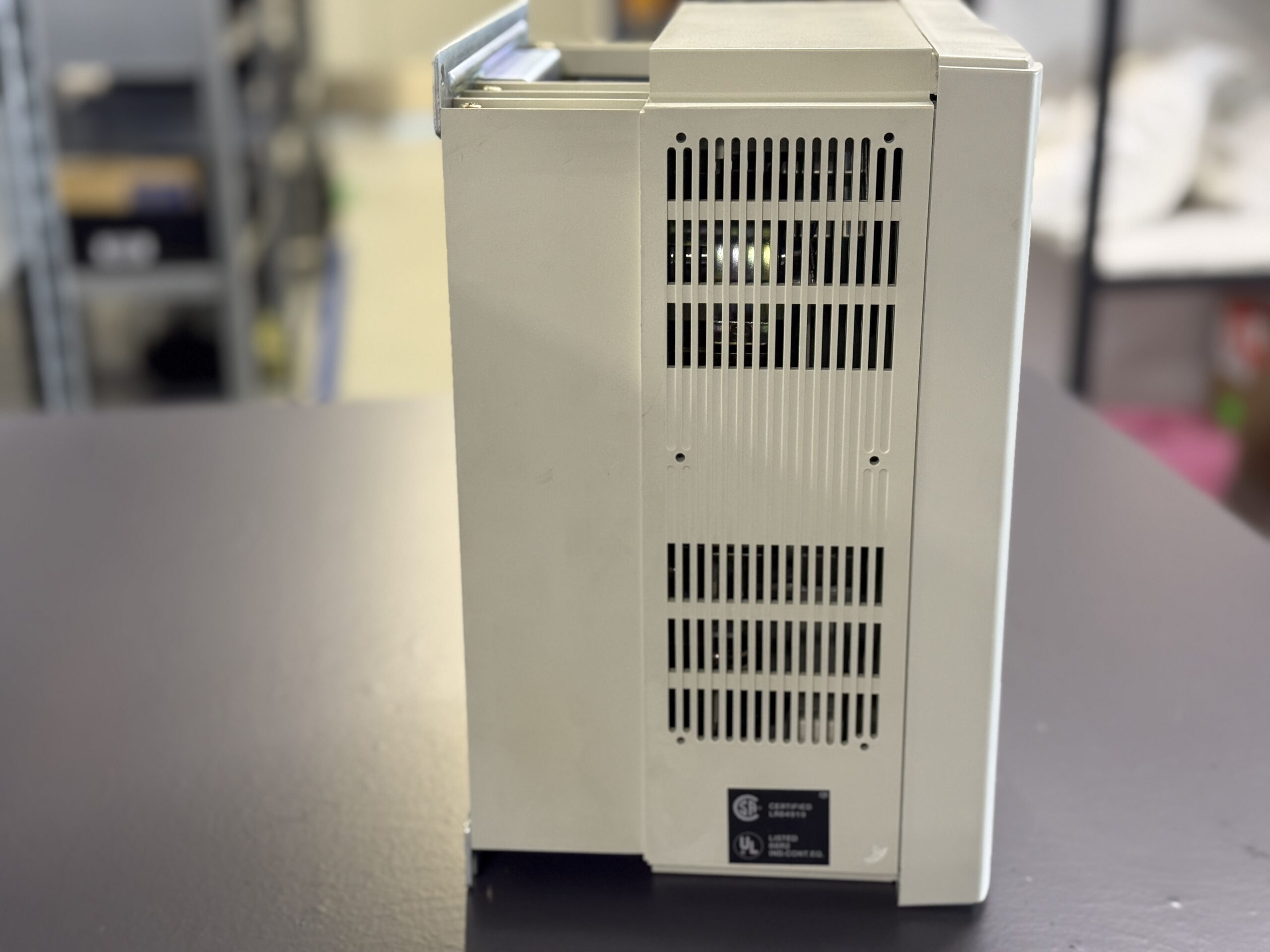

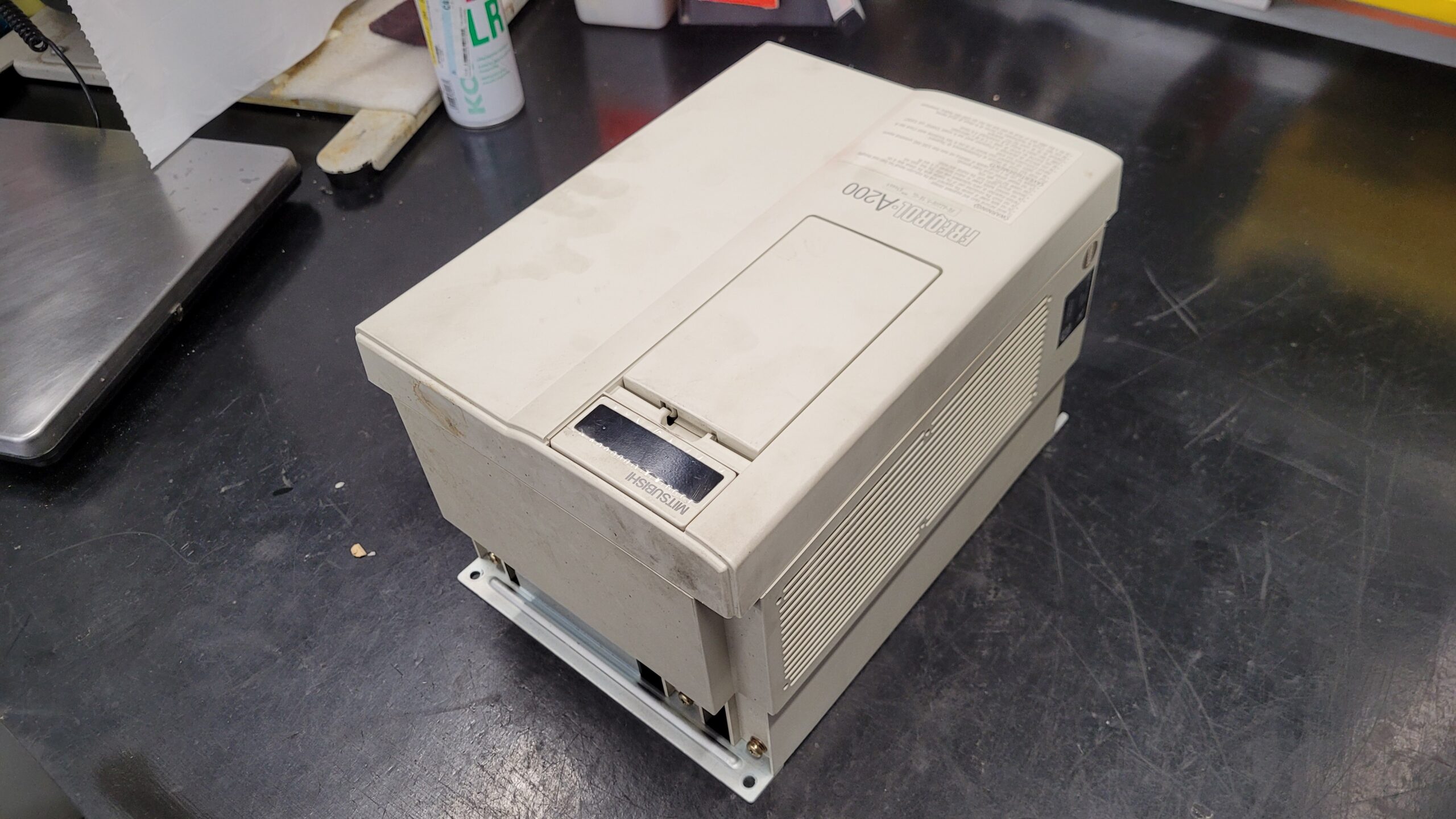

After removal of the Mitsubishi FR-A220E-5.5K-UL, the inverter first underwent a visual inspection. The overall condition matched a spindle inverter that had been operating for many years inside a CNC milling machine:
Dust accumulation in the cooling area, thermal discoloration on power components, and clear signs of aging on the internal assemblies. In spindle applications, rapid acceleration and braking cycles are especially critical because they generate high currents and regenerative energy.
According to the Mitsubishi manual, E.OU3 means:
| Display | Error Name | Meaning |
|---|
| E.OU3 | Overvoltage shut-off during deceleration or stop | Overvoltage shutdown during deceleration or stop |
According to the manual, this fault occurs when regenerative energy flows back from the motor into the inverter and raises the DC bus voltage excessively.
Actual Root Cause
The root cause was not a simple operating fault, but a combination of aging power electronics and a critical spindle braking condition.
Observed causes:
• E.OU3 occurred during spindle deceleration and stopping
• the DC bus could no longer absorb regenerative energy reliably
• the capacitors showed age-related degradation
• the cooling path was heavily contaminated
• the cooling fan no longer delivered full airflow
• the power stage showed thermal aging
• the braking and regeneration section required inspection
The fault matched exactly the Mitsubishi Chapter 17 description for overvoltage shut-off during deceleration or stop.
Repair Measures
The Mitsubishi FR-A220E-5.5K-UL was completely disassembled and technically rebuilt.
The following work was carried out:
• complete internal cleaning
• cleaning of cooling channels and heat sinks
• inspection of the cooling fan
• replacement of aged electrolytic capacitors
• inspection of the DC bus section
• testing of power semiconductors
• testing of gate drive circuitry
• rework of stressed solder joints in the power stage

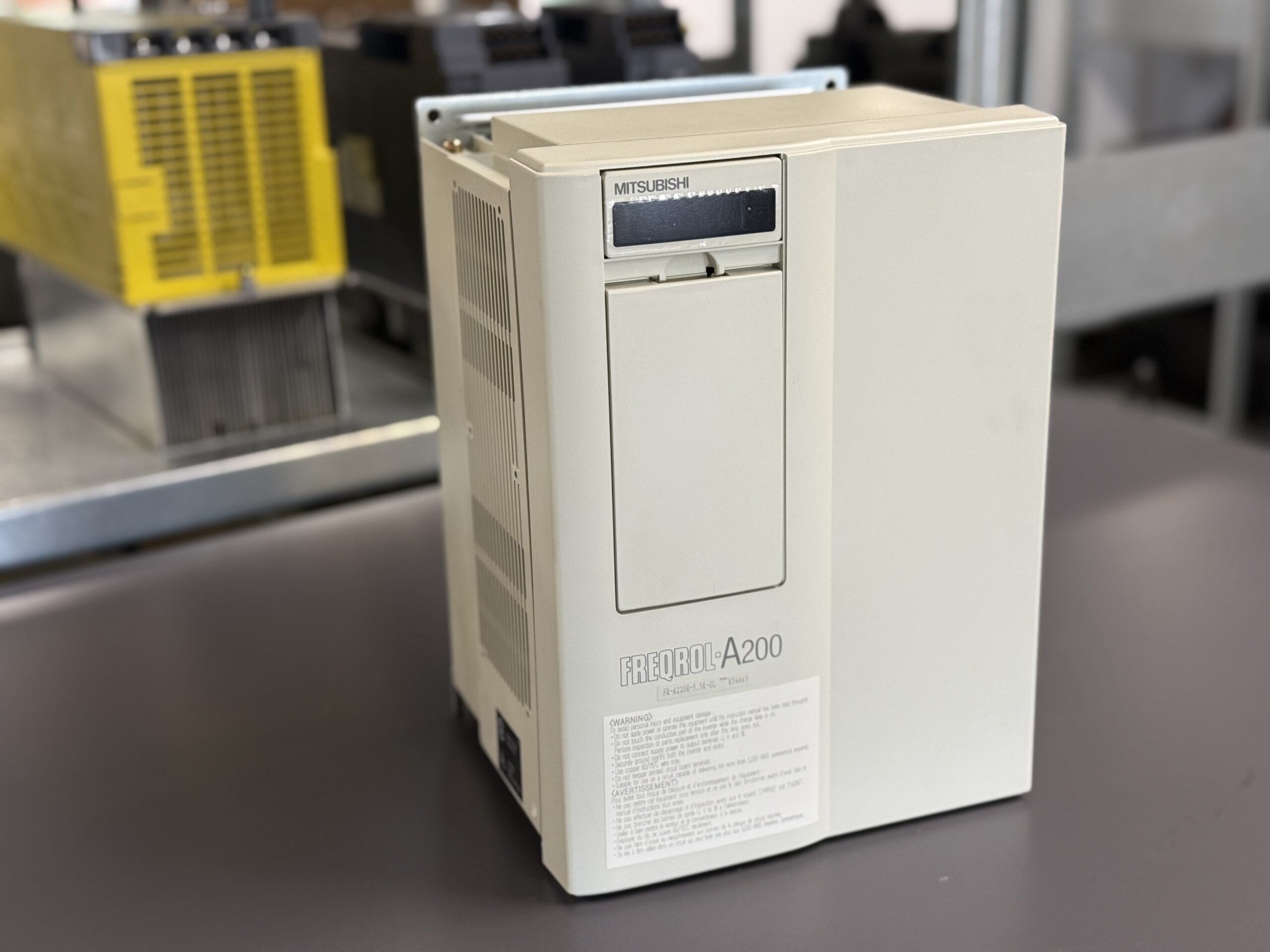

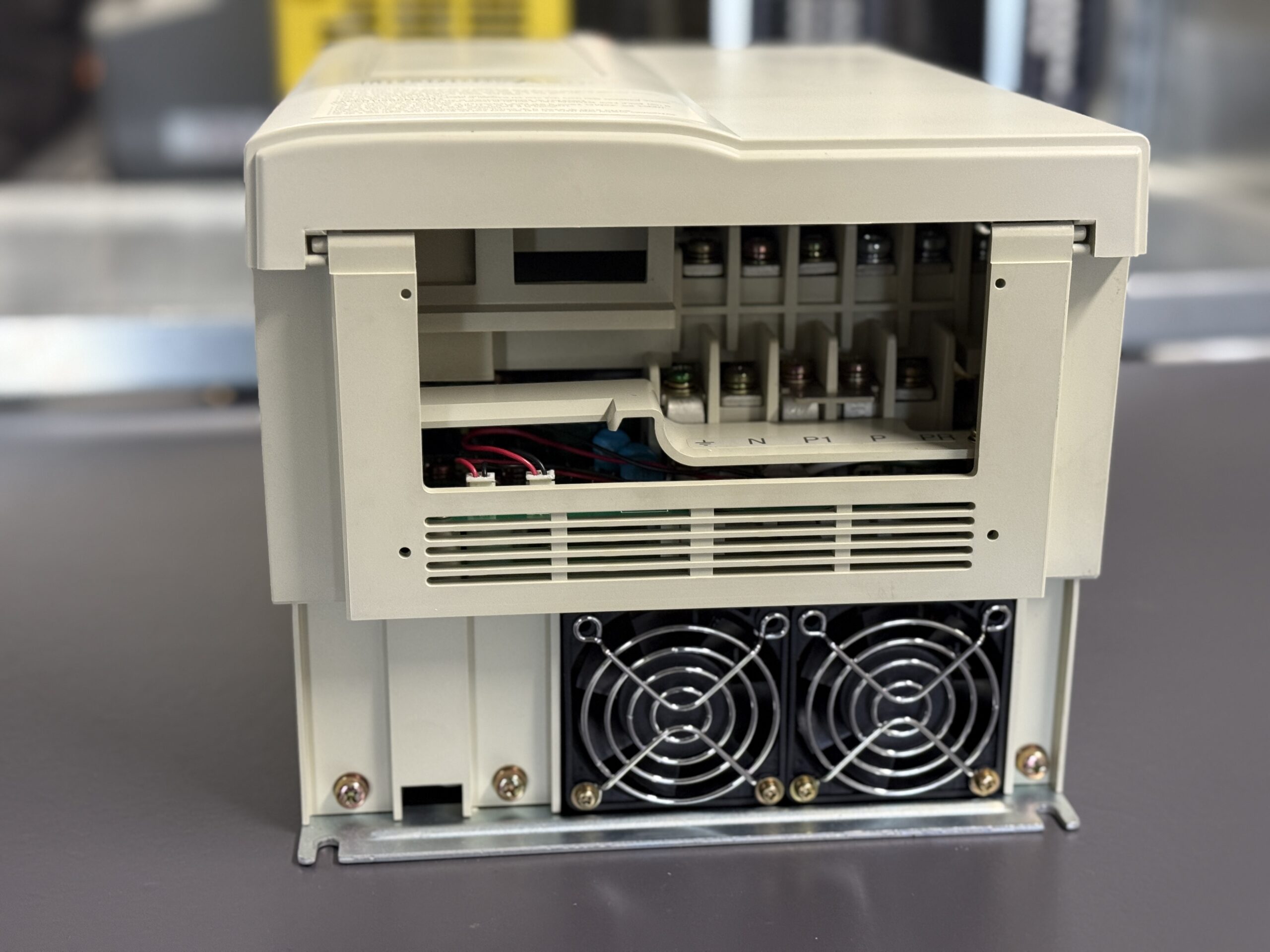

• inspection of terminal connections
• testing of the braking and regeneration circuit
• full load testing under simulated spindle operation
Particular attention was given to spindle deceleration testing, since E.OU3 specifically occurs in this operating condition.
Final Testing and Return Shipment
After repair, the inverter was tested on an industrial test bench. Startup, acceleration, frequency changes, load transitions, and spindle deceleration were all verified.
The inverter remained stable throughout testing. The E.OU3 fault did not reappear. After passing final inspection, the unit was prepared for return shipment so the Haas milling machine could quickly resume production.
Customer Feedback
“After reinstalling the inverter, the spindle accelerated and stopped normally again without another spindle drive fault. Fast turnaround was critical for us because production had completely stopped.”
To mentioned Mitsubishi Drive: Mitsubishi Inverter FR-A220E-5.5K-UL
More details about our Mitsubishi repair services can be found here:
Mitsubishi drive Repair by Industrypart
📞 Feel free to contact us with any questions about your Mitsubishi drive technology.
Our expert team is happy to help!

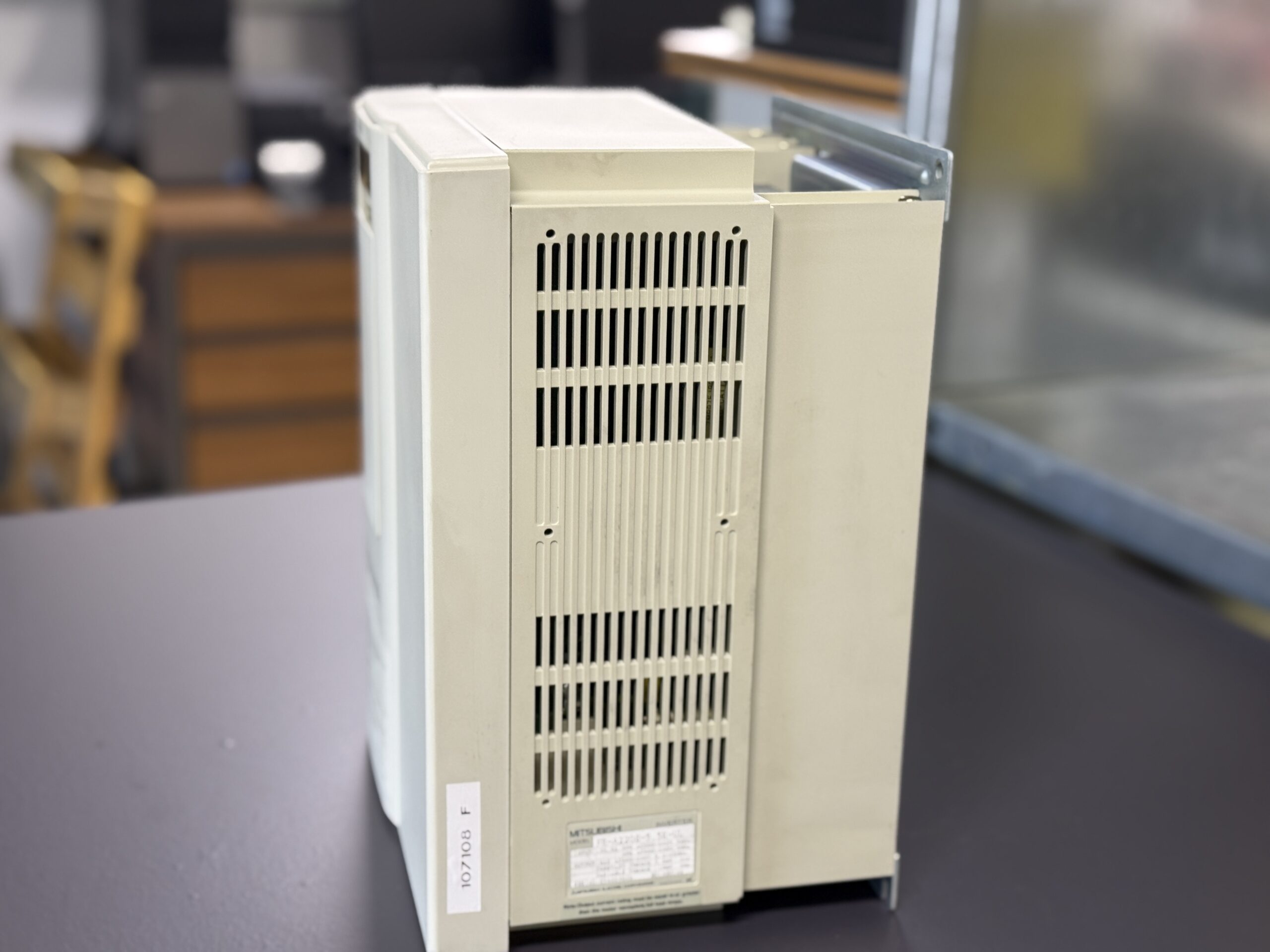

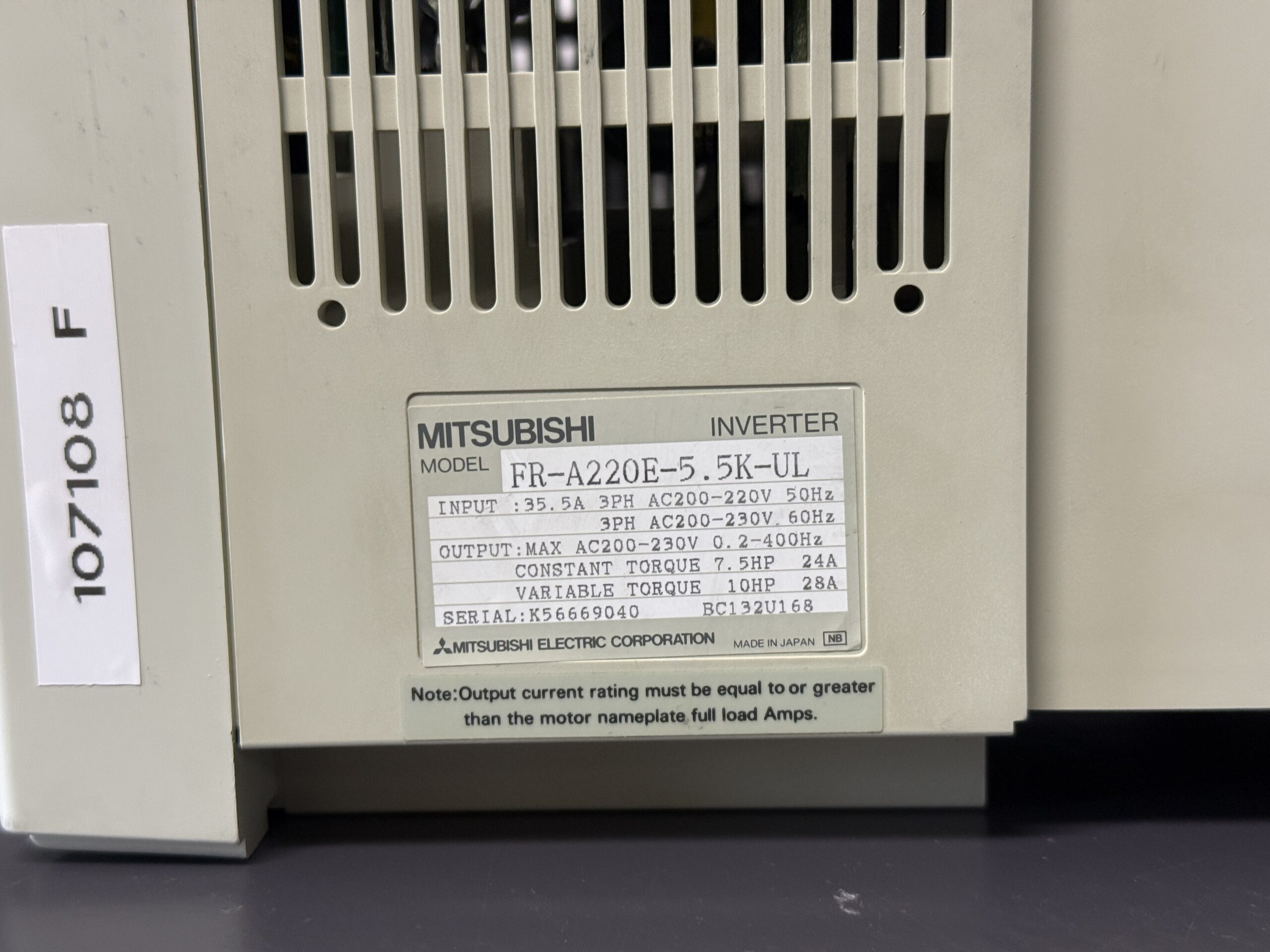

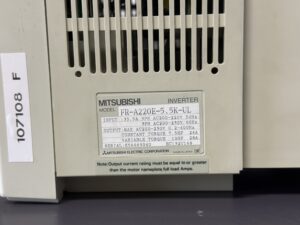

Technical Specifications
| Specification | Value |
|---|
| Manufacturer | Mitsubishi Electric |
| Series | FREQROL A / FR-A200E |
| Model | FR-A220E-5.5K-UL |
| Device Type | Transistorized Inverter / Frequency Inverter |
| Input | 3PH AC200 to 220V 50Hz / 3PH AC200 to 230V 60Hz |
| Output | AC200 to 230V |
| Output Frequency | 0.2 to 400Hz |
| Constant Torque | 7.5HP / 24A |
| Variable Torque | 10HP / 28A |
| Application | CNC spindle drive |
| Machine in this service case | Haas milling machine |
Operating Conditions
| Condition | Information from Manual or Service Case |
|---|
| Environment | Electrical cabinet / industrial environment |
| Cooling | Sufficient airflow required |
| Contamination | Dust, oil mist, and metal debris must be avoided |
| Mounting | Vertical installation with adequate spacing |
| Risk with poor cooling | Overtemperature, fan overload, power stage aging |
| Risk during braking | Overvoltage caused by regenerative energy |
Interaction with Other Equipment
The Mitsubishi FR-A220E-5.5K-UL typically operates together with the following components:
• CNC control system of the Haas milling machine
• spindle motor
• cabinet power supply
• magnetic contactor
• protective devices and fuses
• optional brake resistor or brake unit
• parameter unit
• analog or digital reference signals
Functional Description
The Mitsubishi FR-A220E-5.5K-UL controls spindle motor speed through variable-frequency output voltage. In CNC applications, the inverter receives start, stop, and speed commands from the machine.
During acceleration, the inverter supplies energy to the motor. During deceleration, the motor operates regeneratively and feeds energy back into the DC bus. If this energy cannot be processed properly, the DC bus voltage rises excessively. This exact condition is monitored by the E.OU3 protection function, which shuts the inverter down for protection.
Alarm and Error Codes According to Mitsubishi FR-A200E Manual Chapter 17
| Alarm | Error Name | Meaning | Reset | Corrective Action |
|---|
| E.OC1 | Overcurrent shut-off during acceleration | Overcurrent during acceleration | Reset after устранение cause | Check motor, load, acceleration time, and power stage |
| E.OC2 | Overcurrent shut-off during constant speed | Overcurrent at constant speed | Reset after fault removal | Check load, motor cable, motor, and inverter |
| E.OC3 | Overcurrent shut-off during deceleration | Overcurrent during deceleration | Reset after fault removal | Check braking time, load, and power stage |
| E.OU1 | Overvoltage shut-off during acceleration | Overvoltage during acceleration | Reset after fault removal | Check input voltage and DC bus |
| E.OU2 | Overvoltage shut-off during constant speed | Overvoltage at constant speed | Reset after fault removal | Check supply voltage, load changes, and DC bus |
| E.OU3 | Overvoltage shut-off during deceleration or stop | Overvoltage during deceleration or stop | Reset after fault removal | Check brake resistor, braking time, DC bus, and capacitors |
| E.THT | Electronic overcurrent protection for motor protection | Motor protection triggered | Reset after cooling / repair | Check motor load, parameters, and cooling |
| E.THM | Electronic overcurrent protection for inverter protection | Inverter protection triggered | Reset after cooling / repair | Check inverter load, cooling, and power stage |
| E.FIN | Fin overheat | Heat sink overheating | Reset after cooling | Check fan, heat sink, and cabinet temperature |
| E.IPF | Instantaneous power failure protection | Instantaneous power loss detected | Reset after voltage stabilization | Check supply voltage and contactor |
| E.UVT | Undervoltage protection | Undervoltage detected | Reset after voltage stabilization | Check input voltage and power supply |
| E.BE | Brake transistor alarm detection | Brake transistor fault | Reset after inspection | Check braking circuit and brake unit |
| E.GF | Output side ground fault overcurrent protection | Ground fault / output overcurrent | Reset after repair | Check motor cable and motor insulation |
| E.OHT | External thermal relay operation | External thermal relay triggered | Reset after repair | Check motor overload and thermal contacts |
| E.OPT | Option alarm | Option board fault | Reset after repair | Check option board and connectors |
| E.PE | Parameter storage device alarm | Parameter memory fault | Reset after inspection | Check parameters and memory device |
| E.PUE | PU leave out | Parameter unit disconnected | Reset after reconnection | Check PU and connectors |
| E.CPU | CPU error | CPU fault | Reset / inspection | Check control board and power supply |
Optimization
This repair case involves a Mitsubishi FR-A220E-5.5K-UL frequency inverter, also searched as Mitsubishi FR-A200E inverter, FREQROL A inverter, Mitsubishi spindle drive, Mitsubishi CNC drive, Haas spindle drive fail, Mitsubishi E.OU3 error, FR-A220E repair, industrial inverter repair, CNC spindle inverter repair, and Mitsubishi frequency inverter repair.
Typical fault conditions for these units include spindle not rotating, spindle drive fail, E.OU3 overvoltage, overcurrent faults, fan failure, aging capacitors, DC bus faults, and thermally stressed power modules.
Conclusion
The E.OU3 fault on the Mitsubishi FR-A220E-5.5K-UL clearly indicated an overvoltage shutdown during spindle deceleration or stopping. In this Haas milling machine, the fault caused a complete production shutdown.
Through targeted inspection of the DC bus, capacitors, fan, power stage, and braking behavior, the inverter was successfully repaired and fully tested under load conditions.
