Overview

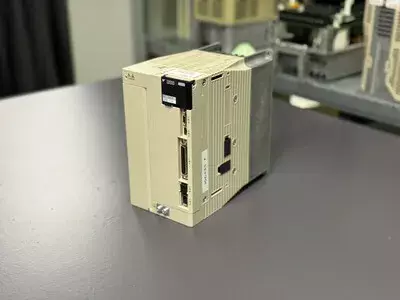

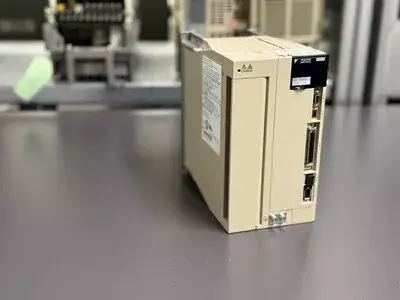

- Proven servo amplifier of the Yaskawa Sigma-V series for precise axis movements in industrial CNC applications. The device stands for robust power electronics, stable control, and high reliability in continuous operation. Developed for demanding use in modern production environments.
- Device category/Role: Servo Amplifier (AC Servo Drive / Servopack)
- Series/Class: Yaskawa Sigma-V, 200-V class
- Design: Compact, forced-air cooled, service-friendly
Model Designation
- SGDV = Yaskawa Sigma-V Servopack
- 120 = Power size (1.5 kW class)
- A01 = Standard version for axis applications
- A = 200-V input class
- Y = Version for AC servo motors
- 101AA = Revision and equipment identifier
Technical Data

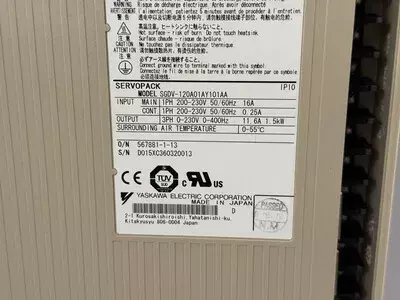

| Feature | Value |
|---|
| Supply (Main circuit) | 1~ AC 200–230 V, 50/60 Hz, 16 A |
| Control circuit supply | 1~ AC 200–230 V, 50/60 Hz, 0.25 A |
| Output | 3~ AC 0–230 V, 0–400 Hz |
| Output current (Rated) | 11.6 A |
| Output power | 1.5 kW |
| Protection class | IP10 |
| Ambient temperature | 0–55 °C |
| Weight/Dimensions | n. a. |
Connections & Interfaces
- L / N: Main power circuit connection
- U / V / W: Motor outputs to the servo motor
- CN1: Control and I/O interface (Enable, Alarms, Signals)
- CN2: Encoder/Feedback connection
- B1 / B2: Brake resistor connection (internal/external, depending on configuration)
- PE: Protective earth, connect large area and low resistance
- 7-Segment/LED display: Status and alarm codes
Control Board / Assemblies
- Control and regulation board (Sigma-V Control Board)
- Power unit with IGBT power module
- DC link capacitors
- Current measurement and protection circuits
- Fan unit for forced cooling
Alarms & Troubleshooting
| Code | Description | Typical Finding | Check | Remedy |
|---|
| A.710 | Abnormal Motor Current | Asymmetrical phase current | Measure phase currents | Check and repair power section |
| A.910 | Servo Anomaly | Unstable control | Analyze control behavior | Repair power stage |
| A.020 | Overcurrent | Short circuit or defect | Insulation and short circuit test | Repair current path |
| A.330 | Control Error | Set-point/Actual deviation | Check feedback and parameters | Optimize control loop |
| A.410 | Encoder Error | Invalid feedback signal | Check encoder, cable, connector | Repair encoder circuit |
| A.510 | Overload | Sustained high current | Check mechanics and load | Reduce load, check electronics |
| A.720 | Phase Error | Missing phase | Check U/V/W | Repair power section |
| A.730 | Motor Instability | Asymmetrical output currents | Analyze current profile | Repair power section |
| A.840 | Hardware Anomaly | Internal assembly disturbed | Assembly check | Replace defective assembly |
| A.900 | System Error | Secondary fault due to power failure | Analyze root cause | Fix primary fault |
Typical Applications
- CNC machining centers
- Machine tools with feed axes
- Automation systems and handling axes
- Production facilities requiring high positioning accuracy
Service Notes
- Regularly clean fans and cooling channels
- Proactively check DC link capacitors
- Back up parameters and motor data before service
- Check encoder and power cables for tight fit
- Do not perform insulation measurement (Megger) on the installed device
Repair Description
- Input Check: Visual inspection, measurement of DC link voltage, checking phase currents
- Disassembly & Cleaning: Professional removal, thorough cleaning of boards and heat sinks
- Analysis: Checking the IGBT power section, current measurement, control board, and capacitors
- Repair: Replacement of defective power and control assemblies, preventive replacement of critical components
- Testing & Load Test: Functional test on the test bench with reference servo motor, monitoring current, temperature, and control behavior
- Long-term Test & Conclusion: Continuous operation under load, documentation of all measured values, and creation of a final report
