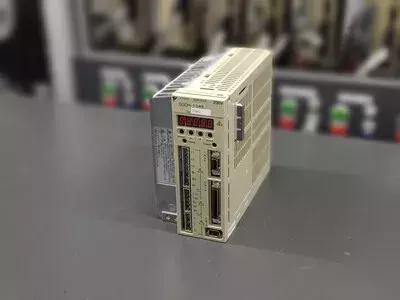

Brand Yaskawa
Type Servopack

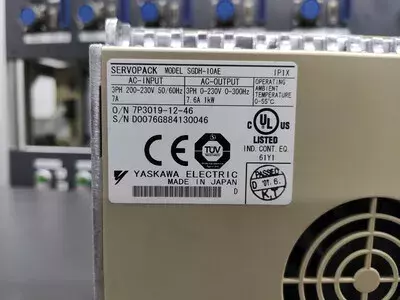

Model SGDH-10AE Ver.37942
Input Current 7A
Input Frequency 50/60Hz
Input Voltage 200-230V
Output Current 7.6A
Output Frequency 0-300HZ
Output Power 1kW
Output Voltage 0-230V
Phases 3PH
Protection Class IP1X

Note: The provided datasheet values may differ from the actual device.

Repair for Yaskawa SGDH-10AE Ver.37942

Servopack

ID: 39878

Buy
Not available
Repair
€ 840.00
Exchange
Not available
Authenticity-check
Contact us for price

Repair of Yaskawa Sigma II Servopacks

SGDH SGDM SGDA
SGDF SGDK

Yaskawa Sigma II Servopack

We test and repair Yaskawa Sigma II Servopacks
In addition, we also offer services for Yaskawa servo motors.
Video: Yaskawa Sigma II Servopack repair and test at industrypart GmbH
Video: Yaskawa Sigma II Servopack repair and test at industrypart GmbH

We specialize in the following series:

  • SGDH Σ-ΙΙ 200 Volt series Example: SGDH-10AE, SGDH-75AE
  • SGDH Σ-ΙΙ 400 Volt series Example: SGDH-05DE, SGDH-30DE
  • SGDH Σ-II Siemens/Yaskawa series Example: SGDH-2020A11AVY740, SGDH-20EEY338
  • SGDM Σ-ΙΙ series Example: SGDM-04ADA, SGDM-15DN
  • SGDA Σ-II series Example: SGDA-08VS, SGDA-02AS
  • SGDK Σ-II series Example: SGDK-101010AEA-V, SGDK-30AEA

Our repair process is preventive and includes a series of steps to ensure high repair quality.

Fault Analysis and Localization

What can you do?

Faults in Servo Modules

Possible solutions and hints

  • Heat the device with an external source. If it then turns on, this indicates a weak power supply that needs to be repaired.
  • Check fuses
  • Check the voltage supply of 3 x 200 or 220 volts depending on the model.

Further error messages can be found in the alarm list, which is available for download at the end of this page.

Possible solutions and hints

  • Replace the motor on a trial basis.
  • Check cable connections.
  • Run in jog mode without load.

If these measures do not help, the fault is usually in the power stage of the drive module.

Further error messages can be found in the alarm list, which is available for download at the end of this page.

Possible solutions and hints

  • Heat the device with an external source. If it then turns on, this indicates a weak power supply that needs to be repaired.
  • Check fuses
  • Check the voltage supply of 3 x 200 or 220 volts depending on the model.

Further error messages can be found in the alarm list, which is available for download at the end of this page.

Handling Parameters

When parameterizing, it is crucial to secure the settings early and to document jumper and key settings as well.
Parameter being set on the device

What should you pay attention to when parameterizing?

  • In most cases, motor parameters are stored in the drive or controller.
  • Obtain the appropriate documentation or software to set the parameters.
    You can find more documentation on this topic at the end of this page or ask us.

The typical repair process for Yaskawa drive modules

The drive is inspected and carefully disassembled.

The repair process for drive modules includes the following steps:

  • Preventive overhaul - replacement of all necessary defective and worn parts.
  • Intensive cleaning.
  • Comprehensive final and stress tests at our test benches.
  • Parameter adjustment or restoration of parameters.
  • Filling out documentation and checklists.

High-quality spare parts for high-quality repairs

For Yaskawa Sigma II Servopacks, we replace:

  • Electrolytic capacitors
  • Large buffer capacitors
  • Relays
  • Current measuring modules
  • Optocouplers

Additionally, we replace certain parts that have proven to fail frequently over several repairs and have therefore been statistically selected for replacement.

To counteract shortages and discontinuations, we use processor-oriented software solutions that monitor our inventory. We order some parts in advance, and for series repairs, we even secure enough spare parts for a year to ensure a large stock is always available.

Quality and level of repair

A professional repair requires the use of a test stand. For each new series, specially adapted and complex test equipment is developed. The devices are thoroughly tested for functionality by subjecting them to long-term stress tests.

The test is conducted on a test stand that simulates the processes as in a real processing plant.

The following is tested:

  • BUS control
  • POT/NOT (positive and negative over travel)
  • Encoder connection
  • Alarm conditions
  • Speed
  • Current and voltage consumption
  • Temperature
  • Parameters

We continuously expand our repair portfolio with new series

As drive and power electronics are often prematurely discontinued, you may find yourself under pressure to deliver replacements to your customers in a timely manner. We support you in analyzing shortages and work together on optimal solutions.

The typical process includes:

  • Development of test stations and procedures
  • Organization of spare parts
  • Preventive repair at the component level
  • If necessary, redevelopment or re-engineering of modules or entire devices

Information about the series

SGDH Sigma II Servopack:

  • SGDH-08AE-S
  • SGDH-15AE-S
  • ...

Frequently Asked Questions

Drive module repair

In which quality/level are load tests performed at your company?
Complex and specially adapted test equipment is developed for each new series. Devices are tested with long-term load test thoroughly checked for functionality. Get an idea of our test facilities.
Do you have special spare parts, which are necessary for qualitative repair?
In times of shortages and discontinuations, we have process-oriented software solutions that monitor our inventories. We order some parts in advance, for series repairs even for 1 year, so that we can fall back on a large stock of spare parts. Certain modules are re-engineered by us.
Can you parameterize the devices?
If possible, a copy of the parameters is always read out and stored upon receipt. After successful repair, the data is compared and in case of exchange or sale, original parameters are transferred or restored to the new device. We have all the necessary hardware as well as software applications to parameterize Yaskawa devices according to the specifications.
What processes are involved in the repair of drive modules?
The repair process for drive modules includes, but is not limited to, the following:
  • Preventive overhaul - replacement of all necessary defective and used parts. E.g. electrolytic capacitors, transistors, optoelectronic components.
  • Intensive cleaning
  • Extensive final and load tests on our test stands
  • Parameter adjustment or parameter recovery
You can find more information on the process flow for drive module repair here.

Further information

What is the meaning of letters and numbers in the type designation
For a better understanding of all the options, which can be found in the type designation, we offer you a separate configurator.
Will I get a detailed repair report after a successful repair?
We document the repair process for every order. You can download a detailed description of the process here.
Do you commission new or unknown equipment?
We are continuously looking for new areas of activity. After consultation with the customer, we determine the necessary steps for a safe and qualitative repair
Can it happen that after repair my device continues to show errors?
It may happen that error messages continue to be displayed with the connected device. Already during the analysis of the errors, we give the customers suggestions for solutions for different malfunctions and errors. error cases, if we suspect further error causes. Errors and faults are documented, among other things, in the log file of the respective device, which may indicate, for example, encoder communication problems, cable defects or overloads.
What does serial repair or overhaul mean
Many of our customers have defective devices of the same model in larger quantities. We have optimized our processes for series repair and have the capacity to repair many devices in parallel quickly and to a high repair many devices in parallel.

Cost & Warranty

What are the costs for repair or overhaul? What does "flat repair rate or standard repair price" mean?
The repair process itself represents a high degree of technical complexity, which we always want to master with a qualitative and long-term solution for you. solution for you. However, the maintenance of these quality characteristics requires, to agree on a repair flat rate or standard repair price. We communicate honestly and transparently all the information you need. For example, prices, previous and completed work steps, delivery times, etc.
Is there a warranty for the respective repair?
Basically we give 12 months warranty.
