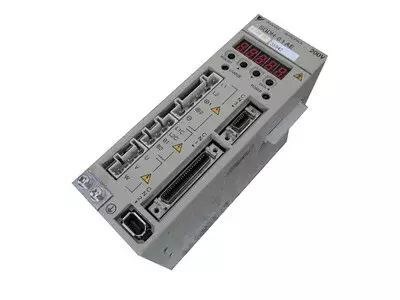

Repair for Yaskawa SGDH-01AE Ver.35942

Servopack

ID: 1516

Buy	Not available
Repair	€ 550.00
Exchange	Not available

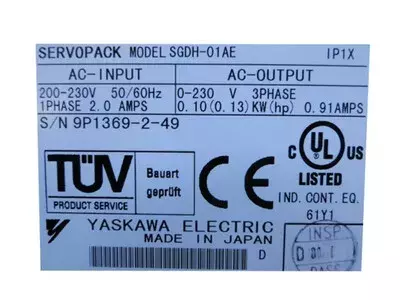

Technical Datasheet (*)

Brand	Yaskawa
Type	Servopack
Model	SGDH-01AE Ver.35942
Country Of Origin	MADE IN JAPAN
Input Current	2.0 AMPS
Input Frequency	50/60Hz
Input Voltage	200-230V
Output Current	0.91AMPS
Output Power	0.10 (0.13) KW (hp)
Output Voltage	0-230 V
Phases	3PHASE

* Note: The provided datasheet values may differ from the actual device.

Price: excl. VAT.
incl. VAT
Shipping calculated separately

Availability	Stock

Repair of Yaskawa Sigma II Servopacks

SGDH SGDM SGDA
SGDF SGDK

Yaskawa Sigma II Servopack

We test and repair Yaskawa Sigma II Servopacks
In addition, we also offer services for Yaskawa servo motors.

We specialize in the following series:

SGDH Σ-ΙΙ 200 Volt series Example: SGDH-10AE, SGDH-75AE
SGDH Σ-ΙΙ 400 Volt series Example: SGDH-05DE, SGDH-30DE
SGDH Σ-II Siemens/Yaskawa series Example: SGDH-2020A11AVY740, SGDH-20EEY338
SGDM Σ-ΙΙ series Example: SGDM-04ADA, SGDM-15DN
SGDA Σ-II series Example: SGDA-08VS, SGDA-02AS
SGDK Σ-II series Example: SGDK-101010AEA-V, SGDK-30AEA

Our repair process is preventive and includes a series of steps to ensure high repair quality.

Fault Analysis and Localization

What can you do?

Handling Parameters

When parameterizing, it is crucial to secure the settings early and to document jumper and key settings as well.

What should you pay attention to when parameterizing?

In most cases, motor parameters are stored in the drive or controller.
Obtain the appropriate documentation or software to set the parameters.
You can find more documentation on this topic at the end of this page or ask us.

The typical repair process for Yaskawa drive modules

The repair process for drive modules includes the following steps:

Preventive overhaul - replacement of all necessary defective and worn parts.
Intensive cleaning.
Comprehensive final and stress tests at our test benches.
Parameter adjustment or restoration of parameters.
Filling out documentation and checklists.

High-quality spare parts for high-quality repairs

For Yaskawa Sigma II Servopacks, we replace:

Electrolytic capacitors
Large buffer capacitors
Relays
Current measuring modules
Optocouplers

Additionally, we replace certain parts that have proven to fail frequently over several repairs and have therefore been statistically selected for replacement.

To counteract shortages and discontinuations, we use processor-oriented software solutions that monitor our inventory. We order some parts in advance, and for series repairs, we even secure enough spare parts for a year to ensure a large stock is always available.

Quality and level of repair

A professional repair requires the use of a test stand. For each new series, specially adapted and complex test equipment is developed. The devices are thoroughly tested for functionality by subjecting them to long-term stress tests.

The test is conducted on a test stand that simulates the processes as in a real processing plant.

The following is tested:

BUS control
POT/NOT (positive and negative over travel)
Encoder connection
Alarm conditions
Speed
Current and voltage consumption
Temperature
Parameters

We continuously expand our repair portfolio with new series

As drive and power electronics are often prematurely discontinued, you may find yourself under pressure to deliver replacements to your customers in a timely manner. We support you in analyzing shortages and work together on optimal solutions.

The typical process includes:

Development of test stations and procedures
Organization of spare parts
Preventive repair at the component level
If necessary, redevelopment or re-engineering of modules or entire devices

Information about the series

SGDH Sigma II Servopack:

SGDH-08AE-S
SGDH-15AE-S
...
