Overview

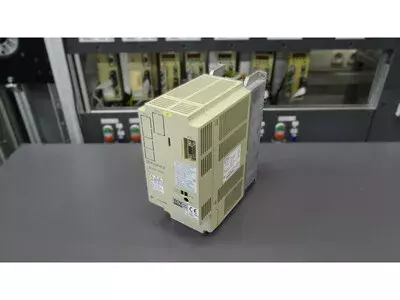

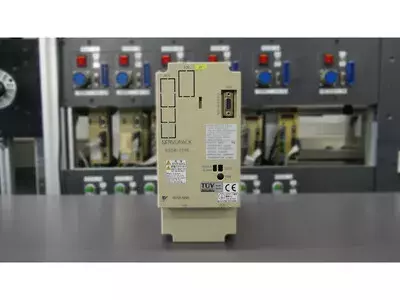

- The Yaskawa SGDB-05VD is a compact, reliable servo amplifier of the Σ-Series. It belongs to the 200V class and is suitable for axes up to 0.45 kW. This version has a standardized analog/compatible command interface (D-Interface). The SGDB-05VD is typically used in CNC machines, handling modules, and automation systems where precise and stable control is required.
- Device category: AC Servo Amplifier (Servopack)
- Series/Class: SGDB (200V class)
- Design: robust, fan-supported, service-friendly
Model Designation
- (based on the official SGDB model code table)
- SGDB = Σ-Series Servopack
- 05 = Power size 0.5 kW (0.45 kW effective according to nameplate)
- V = Supply 200 V (Region/Variant identification)
- D = Command Interface Type: Standard command interface
- (In contrast to 'N' = MECHATROLINK)
- Options (empty suffix) = no additional options installed

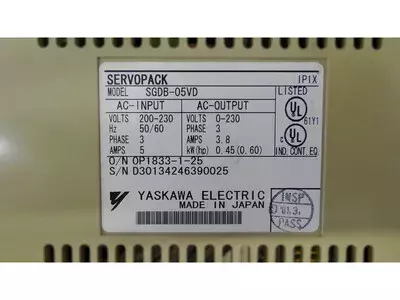

Technical Data
| Feature | Value |
|---|
| Input Voltage | 3~ 200–230 V AC |
| Mains Frequency | 50/60 Hz |
| Input Current | 5.0 A |
| Output Voltage | 0–230 V AC |
| Output Current | 3.8 A |
| Output Power | 0.45 kW (0.60 HP) |
| Phases | 3 |
| Interface | Standard Command Interface (D-Type) |
| Cooling | Convection/Fan cooling |
| Protection Class | IP1X |
| Weight/Dimensions | n. a. |
Connections & Interfaces
- L1 / L2 / L3 – AC Mains Input 200–230 V
- U / V / W – Motor Output
- CN1 – Control Signals (Inputs/Outputs, Enable, Alarms, Reference)
- CN2 – Encoder Connection (e.g., TRD series)
- BR+ / BR– – Brake Resistor Connection
- PE – Protective Earth
- LED/7-Segment Display – Operating and Error Codes
Control Board / Assemblies
| Type | Designation on Board | Quantity | Note |
|---|
| Control Board | SGDB-CAVD (typical) | 1 | Command Interface Board (D-Type) |
| Power Section | n. a. | 1 | IGBT Power Module, Rectifier, Driver Stages |
Alarms & Troubleshooting
| Code | Description | Typical Finding | Check | Remedy |
|---|
| A.10 | Overcurrent / Overheating | Short circuit U/V/W, IGBT fault, thermal switch | Isolation, Temperature, Output stage | Check/replace power section |
| A.30 | Regeneration Error | RB resistor open/defective | Check RB circuit | Connect/replace RB correctly |
| A.32 | Regeneration Overload | Too many stops, RB too small | Evaluate regenerative energy | Use larger resistor |
| A.40 | Overvoltage | Mains voltage too high, regenerative energy | Measure mains | Stabilize supply |
| A.41 | Undervoltage | Supply dip | Measure voltage under load | Check supply line/transformer |
| A.51 | Overspeed | Encoder fault/Phase sequence incorrect | U-V-W, Encoder | Check wiring/encoder |
| A.71 | Short-term Overload | Shock load, blockage | Check mechanics | Free up axis movement |
| A.72 | Continuous Overload | Continuous load too high | Temperature/Current | Adjust load/profile |
| A.84 | Encoder Data Error | Signal unstable, encoder defective | Scope measurement, cable | Check encoder/seal/bearing |
| A.b3 | Current Detection Error | Sensor fault | Current sensor, Gate driver | Repair power section |
Typical Applications
- Machine tools (feed axes, auxiliary axes)
- Industrial robots small axes
- Pick-and-Place systems
- Automated handling modules
- Transfer and feeding systems
Service Notes
- Regularly clean fans and cooling slots
- Preventively check/replace power electronics (IGBTs, capacitors) after years of operation
- Consistently implement cable shielding
- Ensure low-resistance grounding
- Back up parameters and restore them after repair
- Do not perform Megger measurements across encoder/interface lines
Repair Description
- Incoming inspection: Visual check, insulation measurement motor path, DC bus measurement, function test without motor
- Disassembly & Cleaning: Open device, remove dust/oil, renew thermal pads
- Analysis: Check control board (SGDB-CAVD), test IGBT module, measure optocouplers, rectifier, capacitors
- Repair: Replace defective components, resolder thermally stressed areas, preventively renew capacitors/fans
- Testing & Load Test: Test with reference motor 0.45–0.6 kW, monitoring current, temperature, DC ripple, and alarm behavior
- Long-term Test & Conclusion: Continuous operation test, complete documentation of the repair and measurement protocols
