Long-Term Repair Expertise for Yaskawa XtraDrive XD-01-MN01

We have been repairing Yaskawa XtraDrive XD-01-MN01 servo amplifiers for many years – especially for major chip manufacturers.

Why do they still repair such old equipment?

There are at least two key reasons:

1. Integral part of long-established production lines
Large semiconductor manufacturers operate production systems that have evolved and been optimized over decades. Replacing the XtraDrive with a modern drive system would be technically challenging and would require a fundamental redesign and recalibration of the entire control chain. In contrast, repairing key components like the XD-01-MN01 is a cost-effective and practical solution to maintain production capability.

2. Sustainability and environmental awareness
This argument is becoming increasingly relevant. Especially in Germany, environmental responsibility and resource conservation are gaining ground. Customers often say: “Repairing is more economical and sustainable than replacing.”
This mindset strengthens our mission and drives us to continue investing in repair capabilities, additional test environments, and new quality standards.

Hidden faults in the Yaskawa XD-01-MN01

The tricky part: many of the device’s faults are not immediately obvious. When connected to a motor and tested with the standard XtraDrive software, it may appear fully functional.

But under deeper testing – verifying all functions, speeds, and load conditions – problems emerge:
A signal might be missing, the unit may perform poorly at certain speeds, or randomly trigger Alarm 10.

Our approach: customer-specific test environment

We don’t just rely on Yaskawa’s diagnostic software. Instead, we replicate the customer’s control system on our test benches to simulate real-life operation and verify every function of the drive module.

This method sets us apart. That’s why even the biggest names in the industry come to us – seeking tailored, sustainable, and technically precise repair solutions.

or further details such as pricing and delivery times regarding the
Yaskawa XtraDrive XD-01-MN01

For more information about our Yaskawa repairs, please click here.

📞 Please feel free to contact us with any questions regarding your Yaskawa drive technology. Our experienced team is always ready to assist you.

Technical Profile: Yaskawa XtraDrive XD-01-MN01

Device Overview

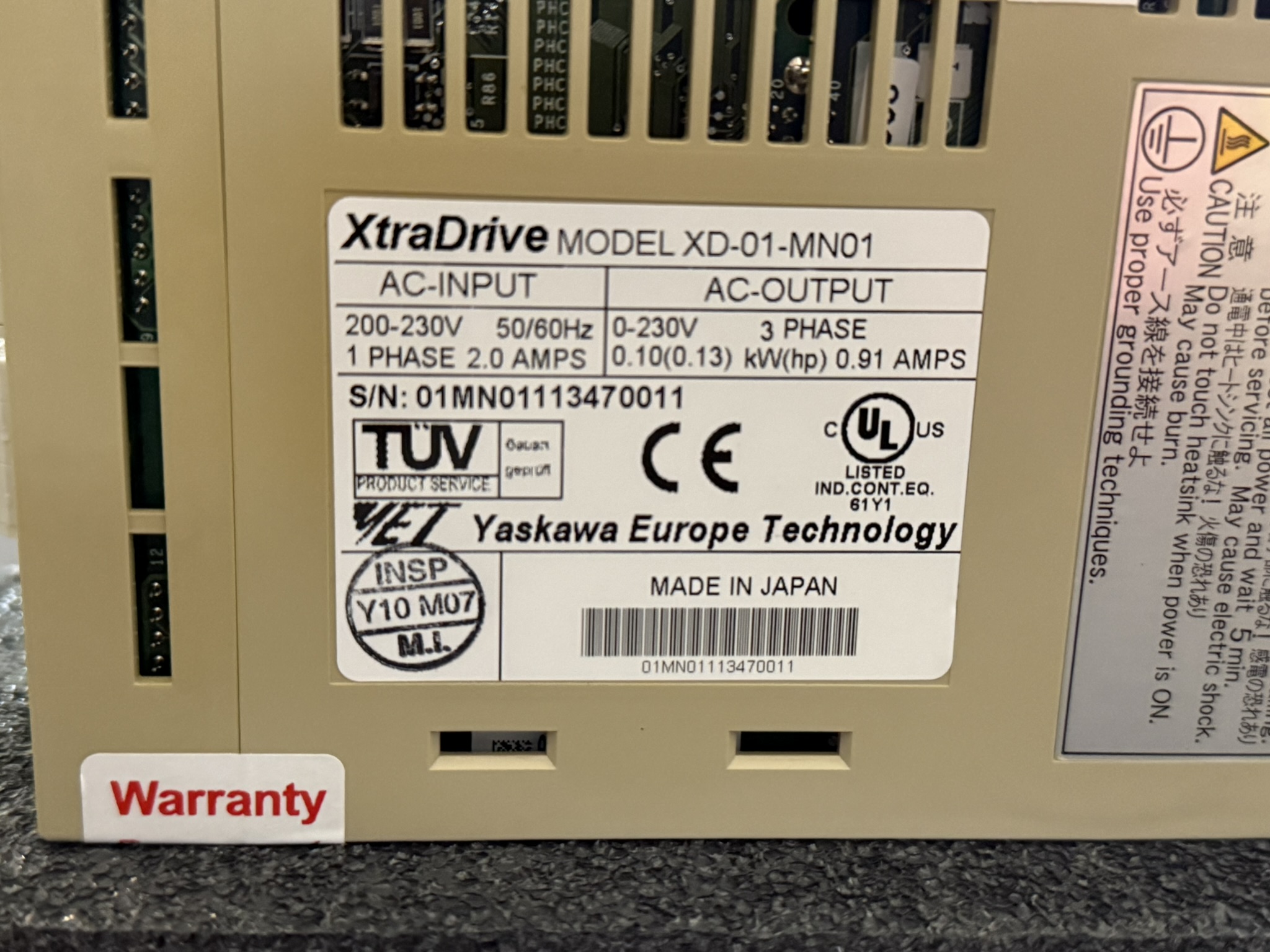

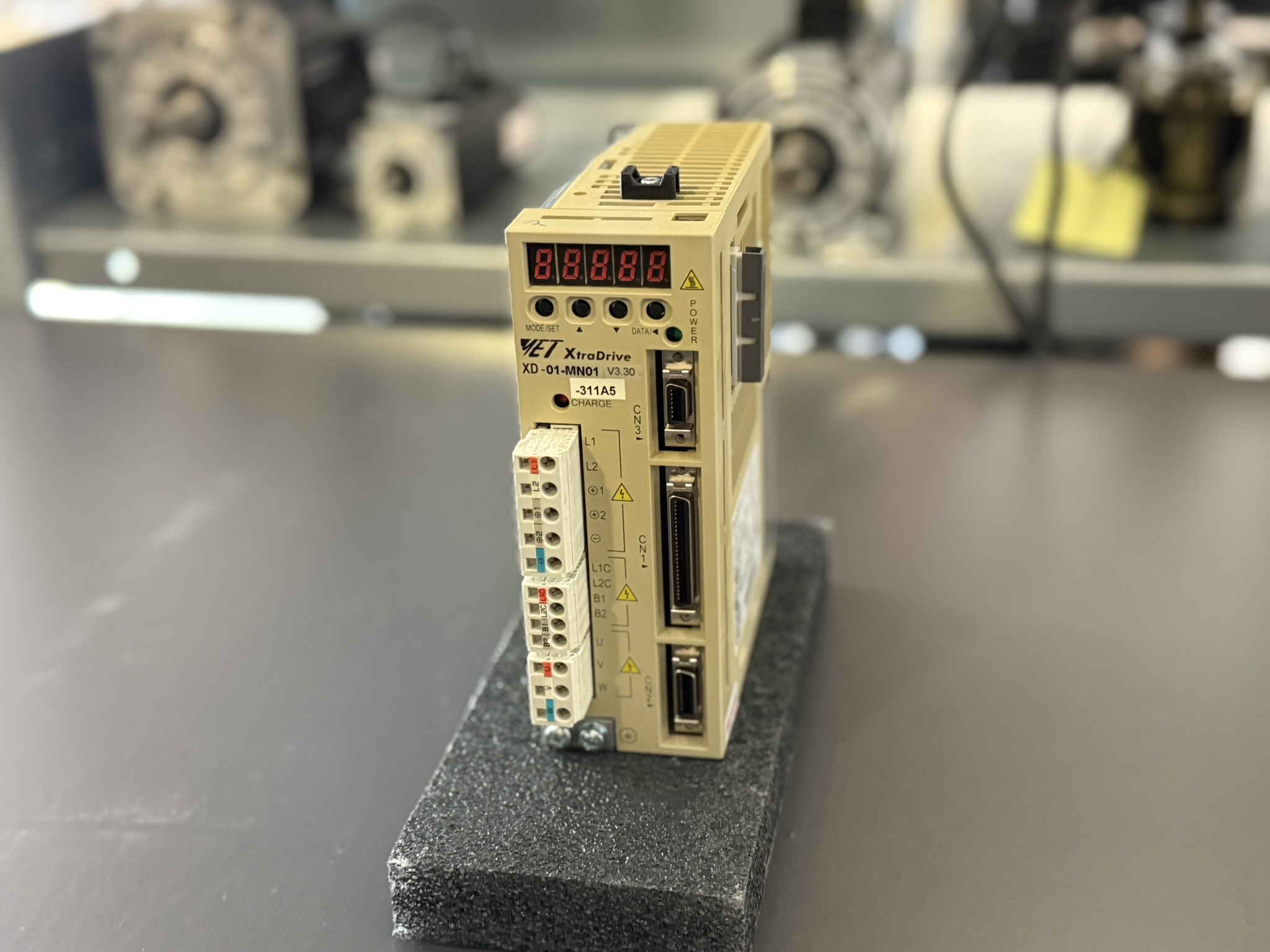

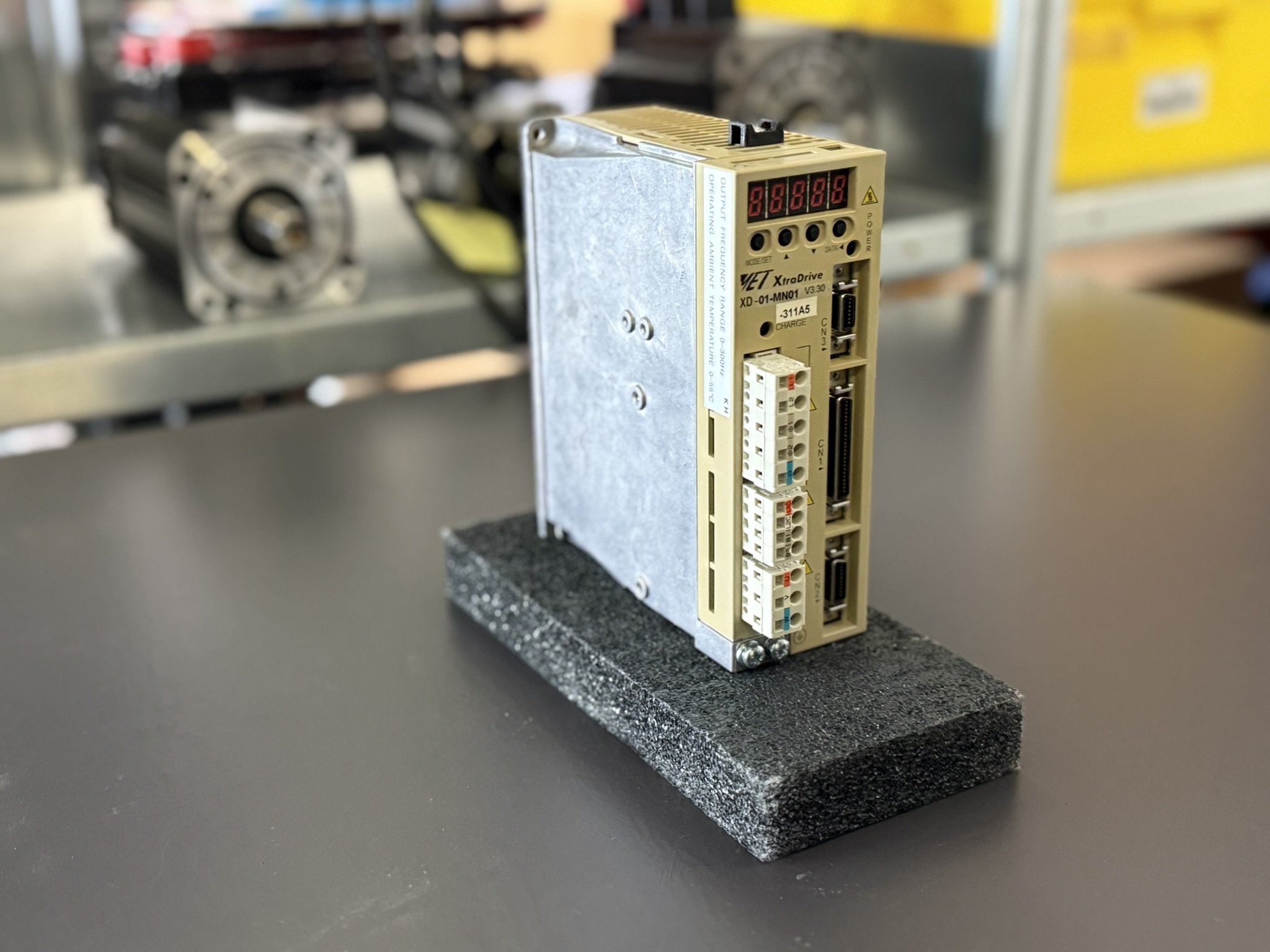

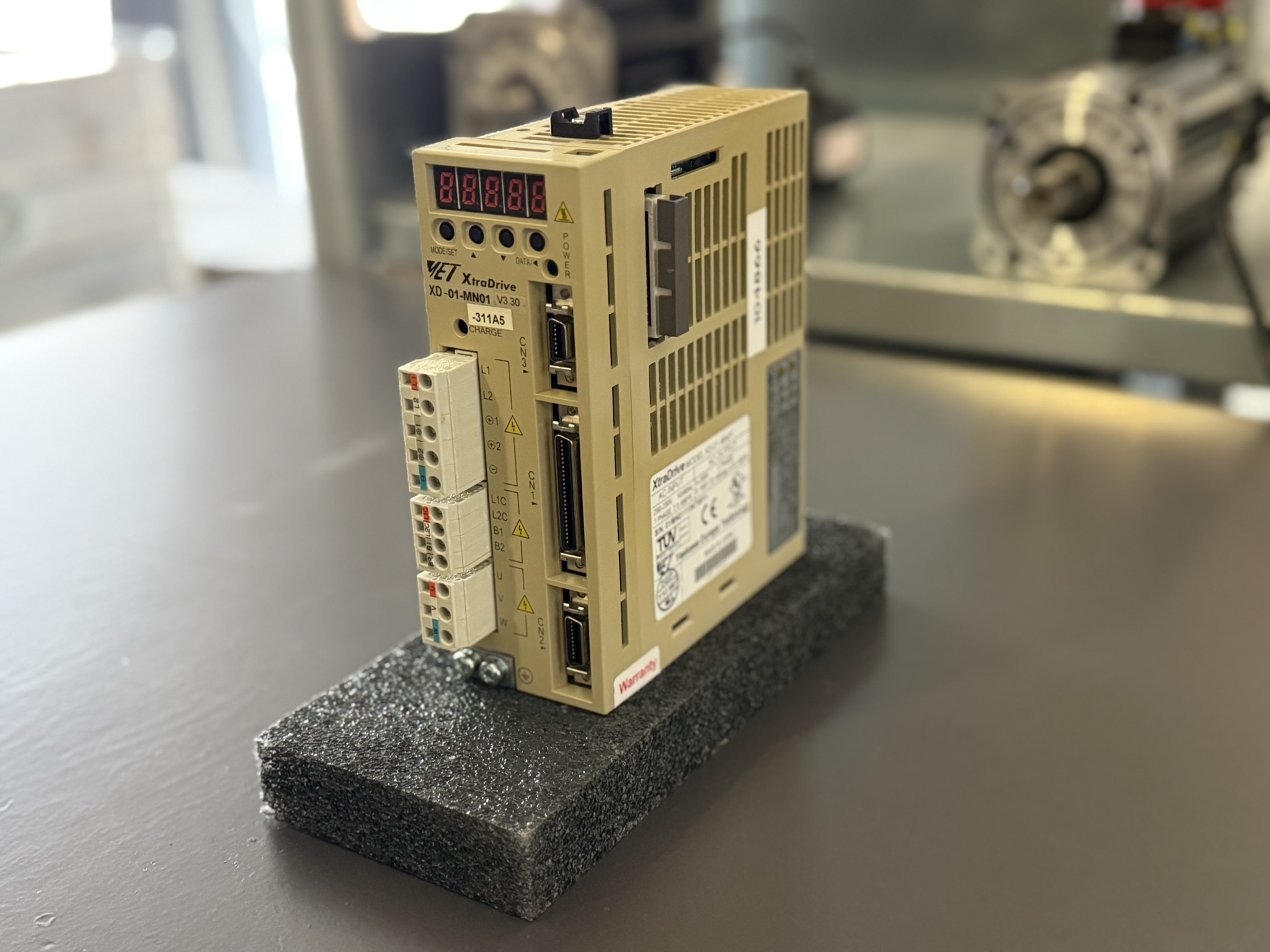

The Yaskawa XtraDrive XD-01-MN01 is a compact AC servo amplifier primarily used in precise industrial applications such as semiconductor production, electronics assembly, and small automated systems. It belongs to the XtraDrive series, known for long-term stability and compatibility with various Yaskawa servo motors.

Technical Specifications (based on nameplate and manual)

Parameter	Value
Model	XD-01-MN01
Input Voltage	200–230 V AC (single-phase)
Input Frequency	50/60 Hz
Input Current	2.0 A
Output Voltage	0–230 V (three-phase)
Output Power	0.10 kW (0.13 hp)
Output Current	0.91 A
Recommended Motor Size	100 W
Certifications	CE, UL, TÜV
Country of Manufacture	Japan
Manufacturer	Yaskawa Europe Technology

Function and Purpose

This drive controls Yaskawa servomotors in a closed-loop system. Supported operation modes include:

• Torque control
• Speed control
• Position control
• Absolute and Incremental encoder support

XtraDrive units support advanced features such as:

• Jogging mode
• Overshoot suppression
• Electronic gearing
• Regenerative braking
• Auto-tuning of loop gains


Troubleshooting & Diagnostics – For Non-Experts

Typical Symptoms & Alarms:

Alarm	Description	Cause & Solution
A.10	Overcurrent or heatsink overheating	Check cooling, reduce load, inspect IGBT stage
A.32	Regenerative overload	Use external braking resistor
A.41	Undervoltage	Ensure input voltage is ≥ 200 V AC
A.51	Overspeed	Motor is spinning too fast – check feedback and control signals
A.C9	Encoder communication error	Check encoder cable, connectors, and compatibility

End-User Maintenance & Diagnostics Tips

Step	What to Do
Visual Inspection	Disconnect power, open casing if needed, inspect for dust, damage, or odor.
Measure Input Voltage	Voltage between L1 and L3 should be 200–230 V AC.
Motor Output Checks	Ensure U/V/W terminals are correctly wired and tight.
Software Diagnosis	Use XtraDrive PC software to check alarms, parameter settings, and feedback.
Under Load Testing	Some errors only occur under real operational conditions, not in idle mode.

Compatible Motors

The XD-01-MN01 is designed to drive 100 W class Yaskawa motors, such as:

• SGMAH-01AAA
• SGMPH-01AAA
• SGMGH-01ACA

Alarm Code Summary (Excerpt)

Alarm Code	Meaning	Suggested Action
A.10	Overcurrent / Overheating	Improve cooling, reduce load
A.32	Regenerative overload	Use external braking resistor
A.41	Undervoltage	Stabilize input power
A.51	Overspeed	Check feedback loop, input signal errors
A.C9	Encoder communication error	Check cable connections and shielding
A.d0	Position error overflow	Adjust gain or encoder ratio
A.F1	Phase loss (for 3-phase input only)	Check input wiring
