26.05.2025 by Viktor Siebert
Practical Example: Repair Instead of Replacement – Yaskawa Varispeed 626VM3C CIMR-VMC22P2
At a mid-sized manufacturing facility, the frequency inverter on a filling line repeatedly triggered error code F-100, indicating output overcurrent. The drive had served reliably for over ten years. After several faults, the maintenance team decided to procure an identical replacement unit. Despite proper wiring and careful parameter setup, the new inverter refused to operate – the machine would not start as expected.
After careful consideration, the team opted to repair the old unit. Their reasoning: If it had already worked reliably for a decade, a well-refurbished unit might last another ten years. The drive was sent to the machine manufacturer for evaluation. Two weeks later came a disappointing message: The unit was declared unrepairable due to an alleged lack of spare parts.
With no working solution in hand, the customer was left stranded – until they found us through a recommendation. We had already successfully repaired several devices of this exact series and were familiar with the common weaknesses. We also knew why the replacement unit would not work in the machine: This model includes hidden parameters that a standard user cannot read or transfer – even with full parameter backup.
The customer then sent us the replacement device for correct parameter setup. As a result, we were not only able to repair the faulty drive but also ensured that the spare unit would be ready for immediate use in case of future failure. Since then, the system has been running stably – and the customer knows: In the event of a problem, they now have a reliable solution within reach.

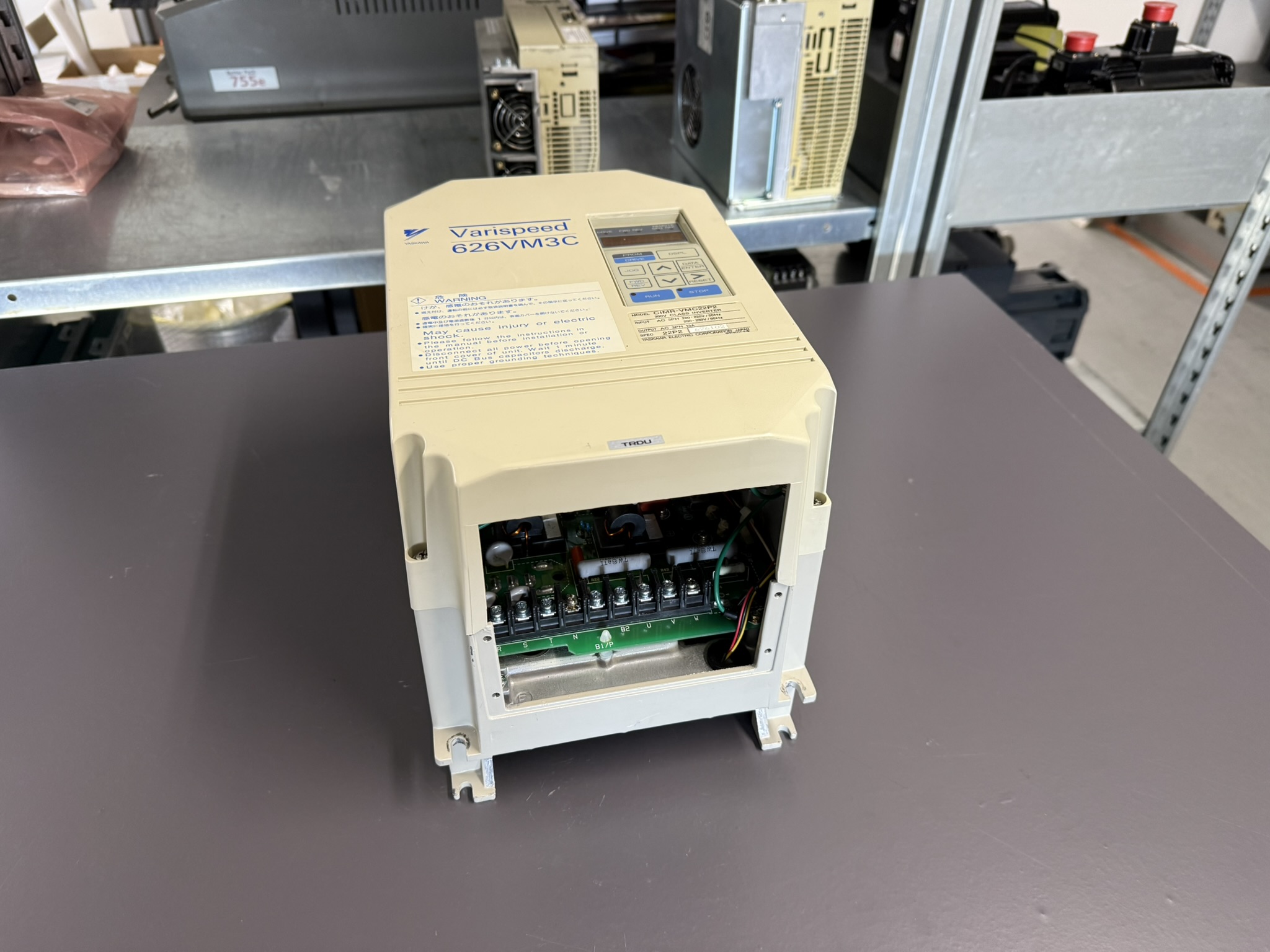

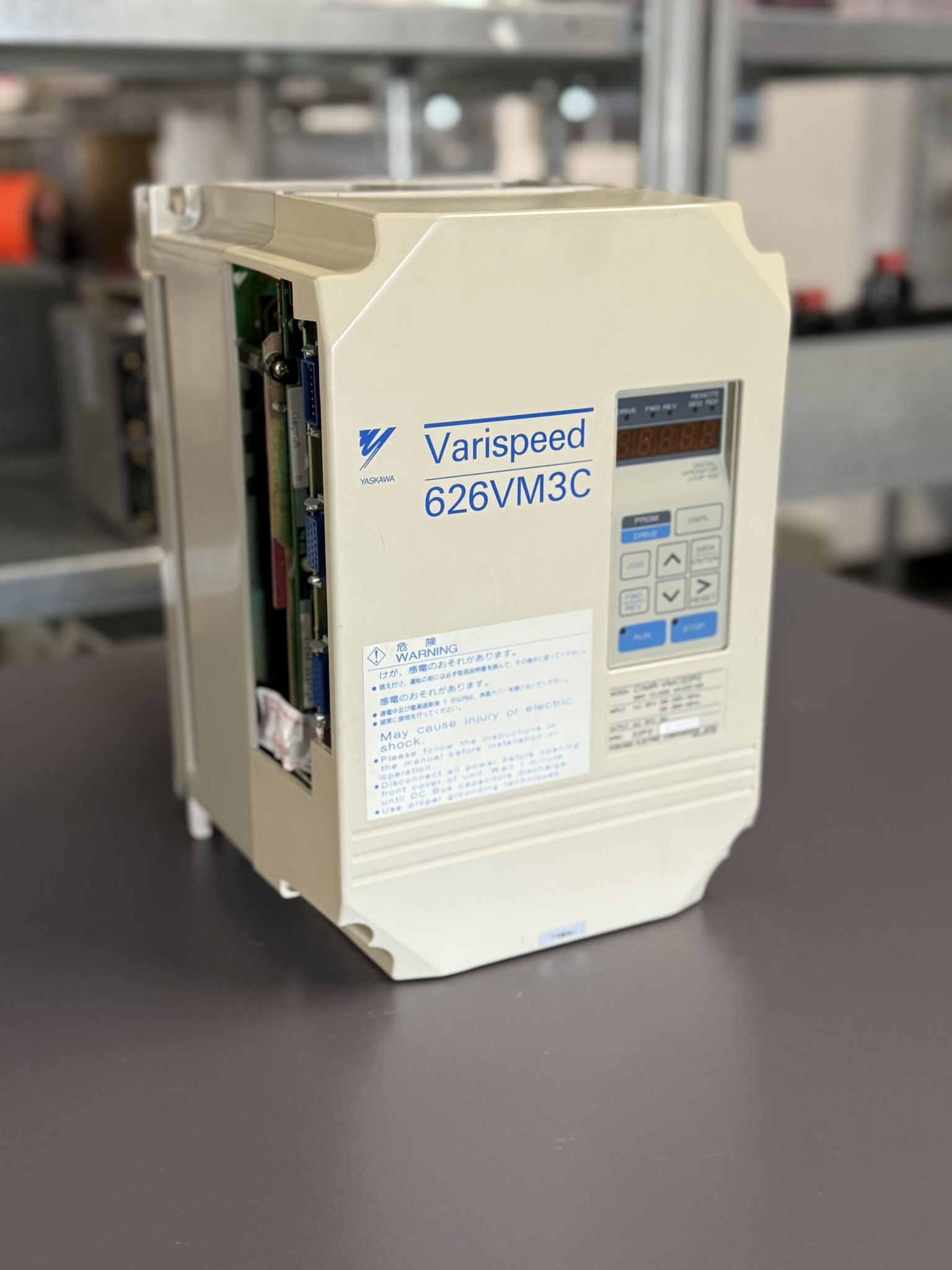

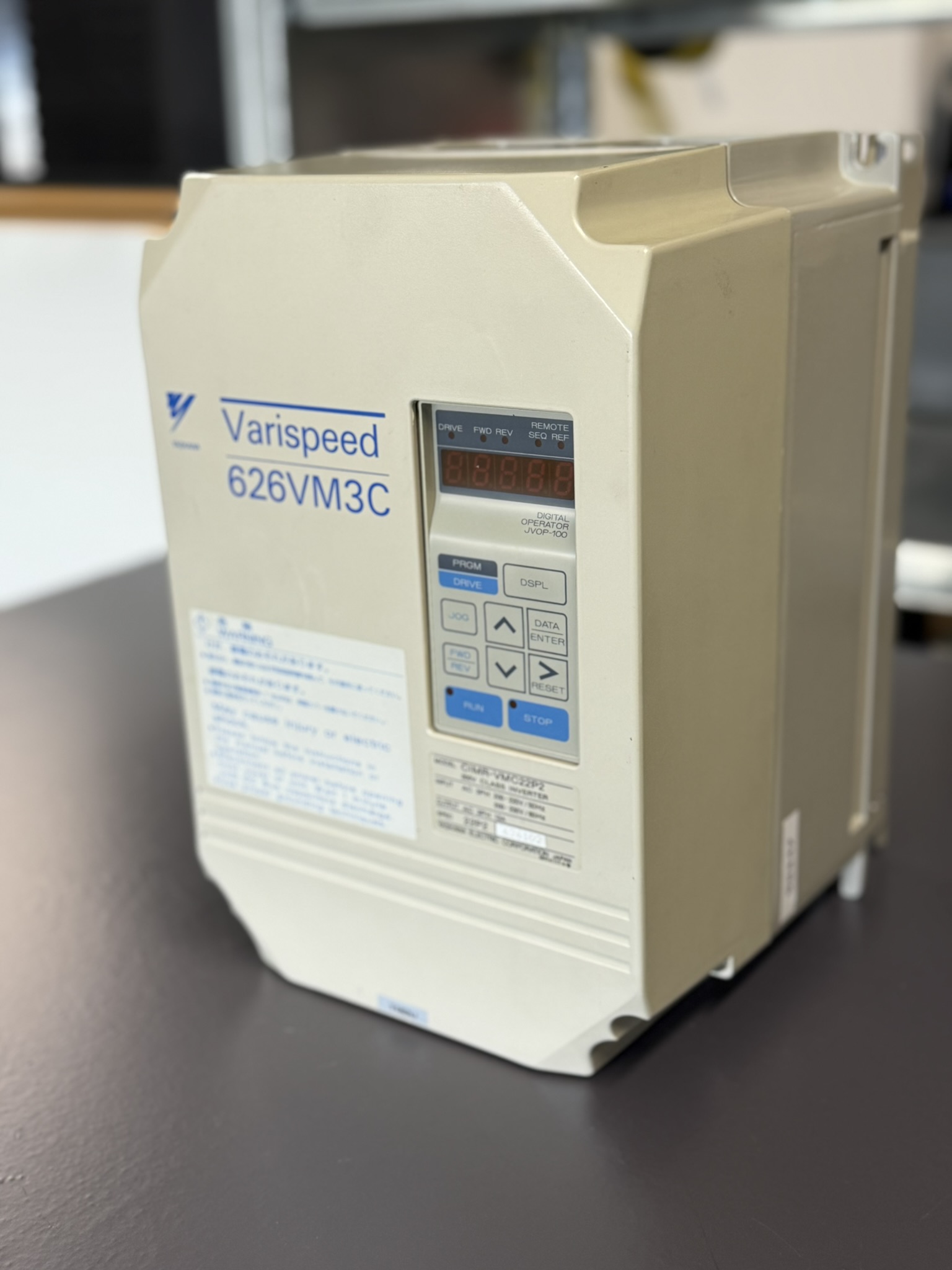

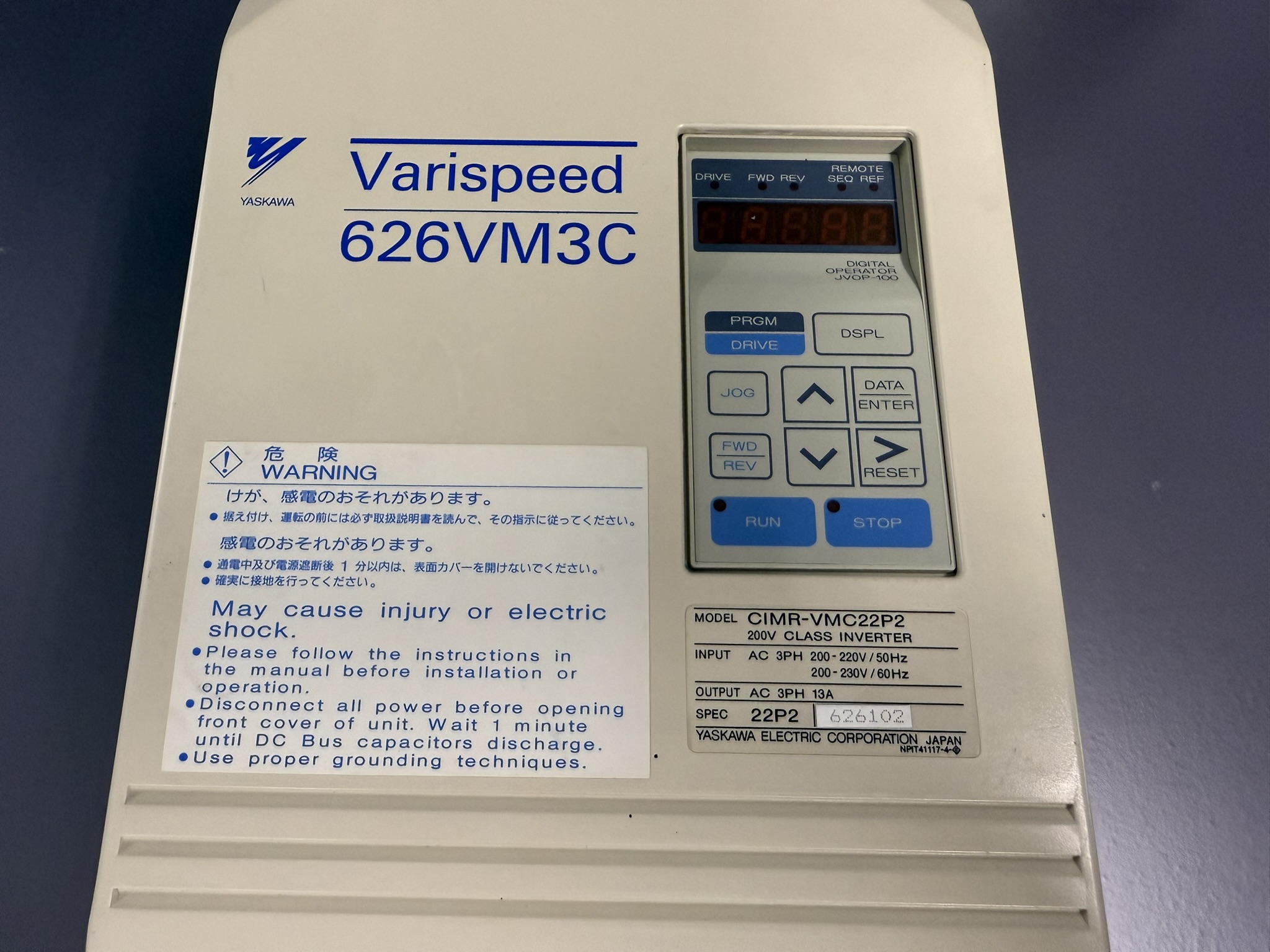

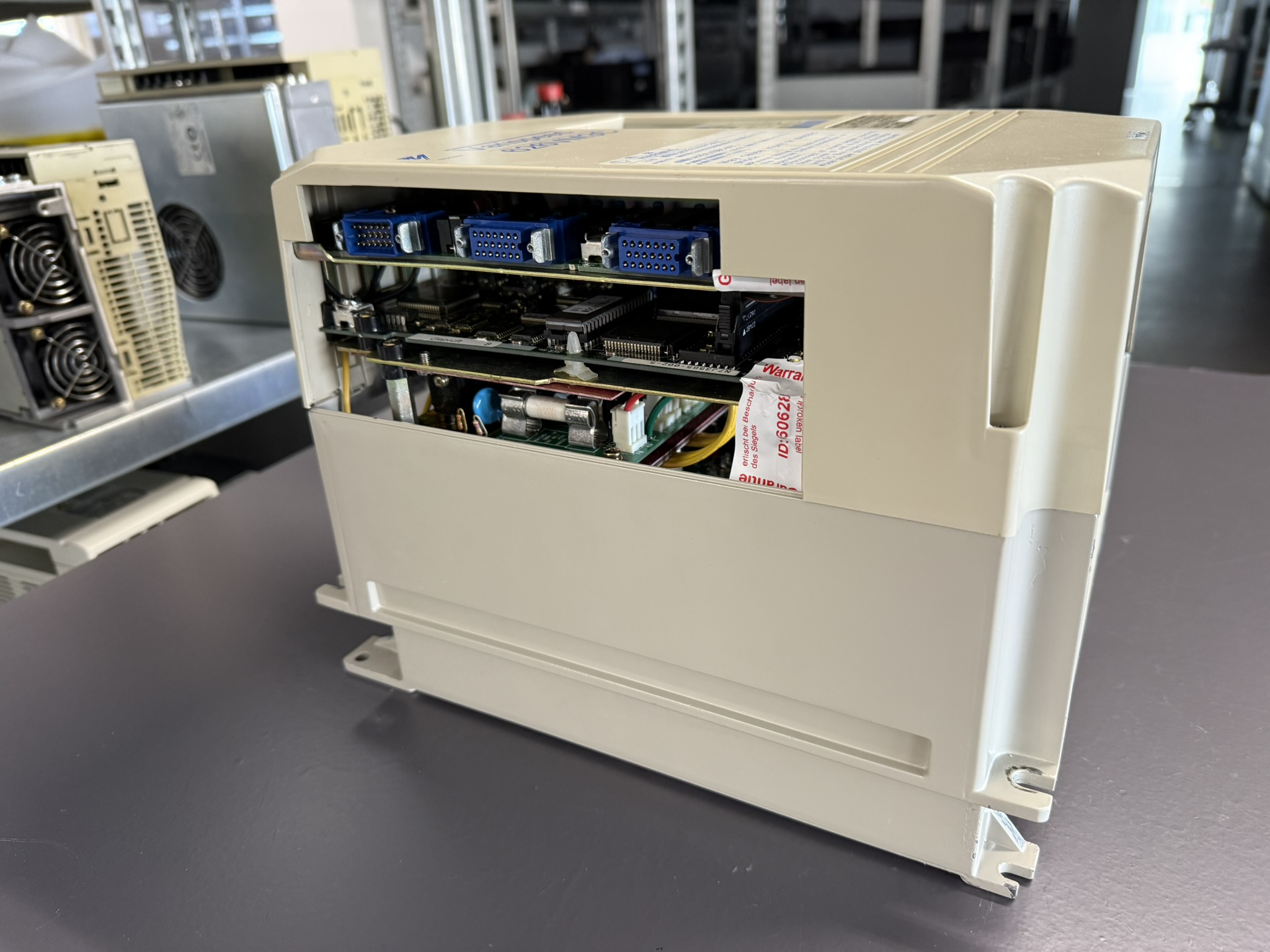

Device Data: Yaskawa Varispeed 626VM3C CIMR-VMC22P2
| Parameter | Value |
|---|
| Input Voltage / Current | 3× 200–220 V AC (50/60 Hz), approx. 11 A |
| Output Voltage / Current | 3× 0–230 V AC (variable frequency) / 13 A (rated output current) |
| Power | 2.2 kW (3 HP) |
| Weight | approx. 7 kg |
| Dimensions (W×H×D) | 204.5 × 304 × 225 mm |
| Environment | 0–55 °C, 5–95% RH, indoor use only, non-corrosive, below 1000 m elevation |
Typical Application Environments
The 626VM3C is commonly used in machine tools, filling and packaging lines, conveyor systems, and automated production machinery. Its compact design, reliable vector control, and strong protection features make it ideal for retrofit projects and maintenance of existing systems.
Functionality
The frequency inverter converts constant grid frequency into variable output frequency and voltage, allowing variable-speed operation of three-phase motors. The integrated vector control maintains consistent torque across all speed ranges. Features include ramp control, braking resistor support, and extensive diagnostics.
Key Alarm Codes and Solutions
| Error Code | Meaning | Cause | Solution |
|---|
| F-100 | Output overcurrent | Short circuit, motor fault, excessive load | Check motor/cables, verify parameter settings |
| F-302 | Fan error | Fan blocked or defective | Replace fan, ensure adequate cooling airflow |
| F-400 | DC bus overvoltage | Power surge, regenerative braking | Install braking resistor, check supply conditions |
| F-700 | Motor overload | Overload, mechanical blockage | Inspect mechanics, adjust acceleration/deceleration times |
| F-904 | Heatsink overtemperature | Ambient too hot, insufficient ventilation | Improve ventilation, monitor ambient temperature |
| F-C00 | Encoder signal missing | Encoder not connected or faulty | Check encoder and wiring |
| F-A01 | Main fuse blown | Internal short circuit | Replace fuse, have device inspected |
