Production Downtime Caused by Mitsubishi MDS-B-V24-0505 Servo Drive Unit in Two Independent CNC Machines
An industrial customer reported the nearly simultaneous failure of two identical Mitsubishi Servo Drive Units type Mitsubishi MDS-B-V24-0505 from two different machines. Both systems suddenly stopped operating without warning. The affected CNC machines were no longer able to initialize the servo system or enable the axes. Particularly unusual was the fact that both units came from different production lines and operated independently.
During the initial conversation, it became immediately clear that the customer was under considerable time pressure. The machines were production critical and the downtime caused immediate manufacturing losses. Due to the identical failure symptoms, there was strong suspicion of a typical age related series defect within the MDS-B-V24 series.

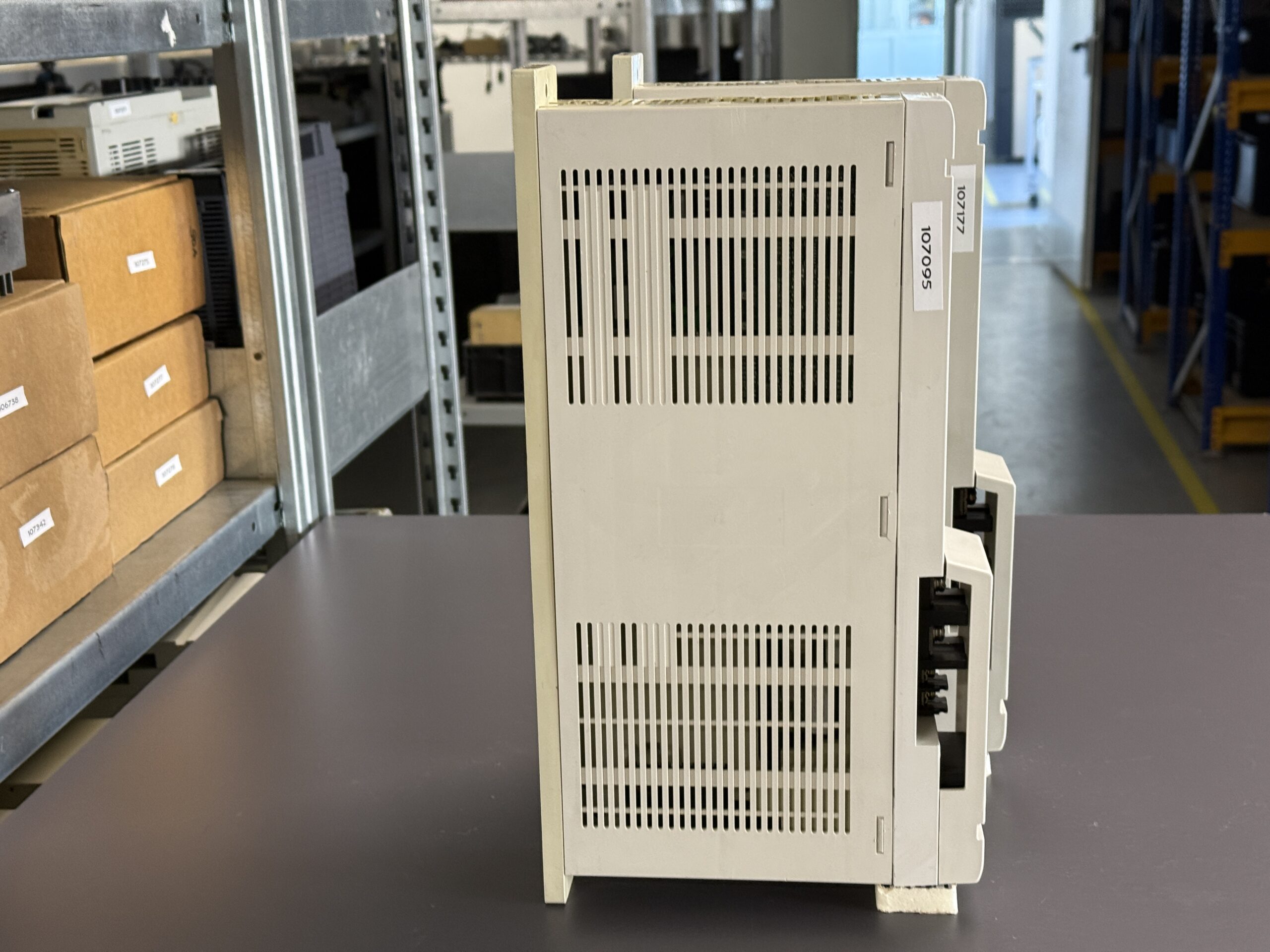

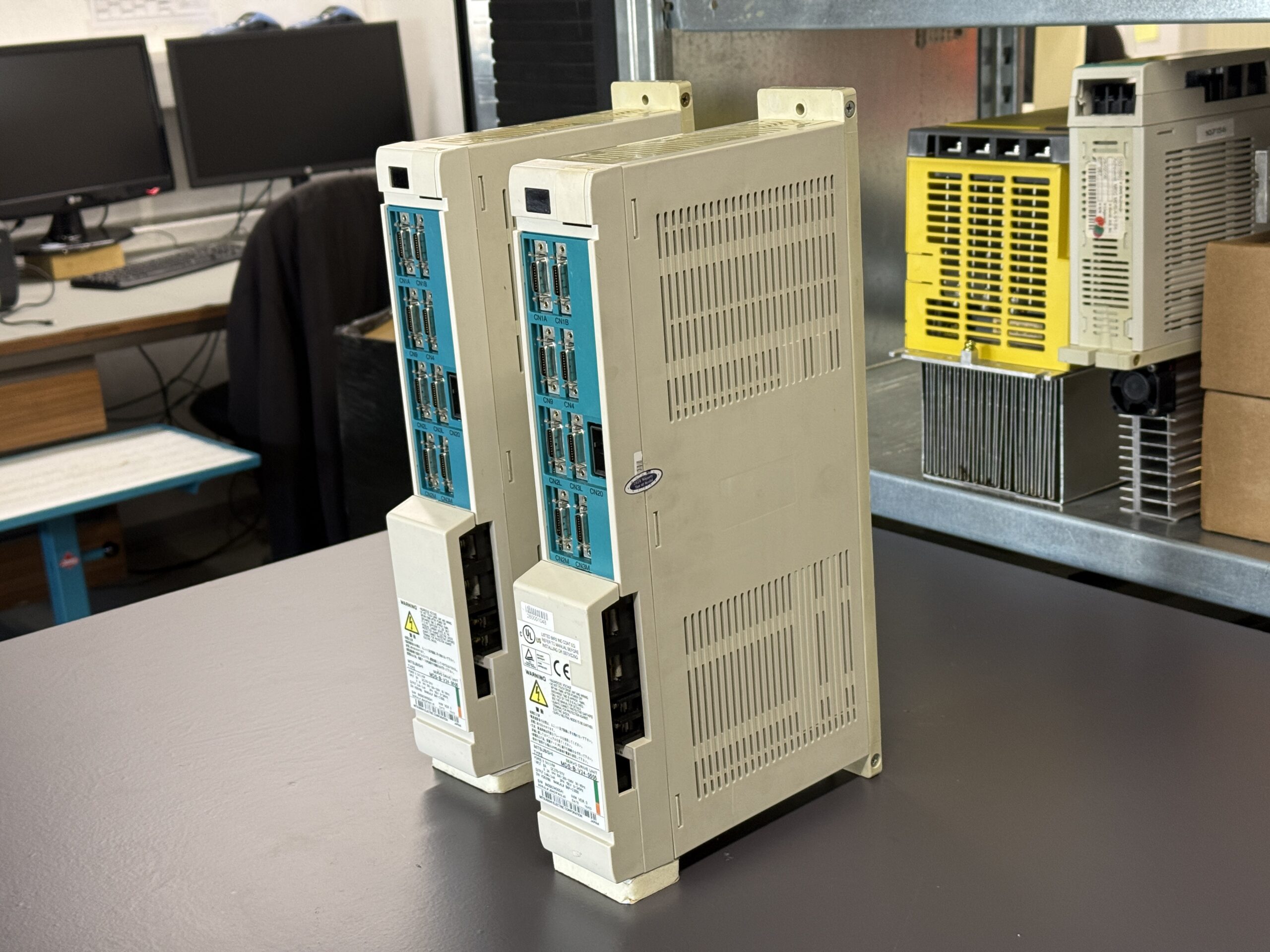

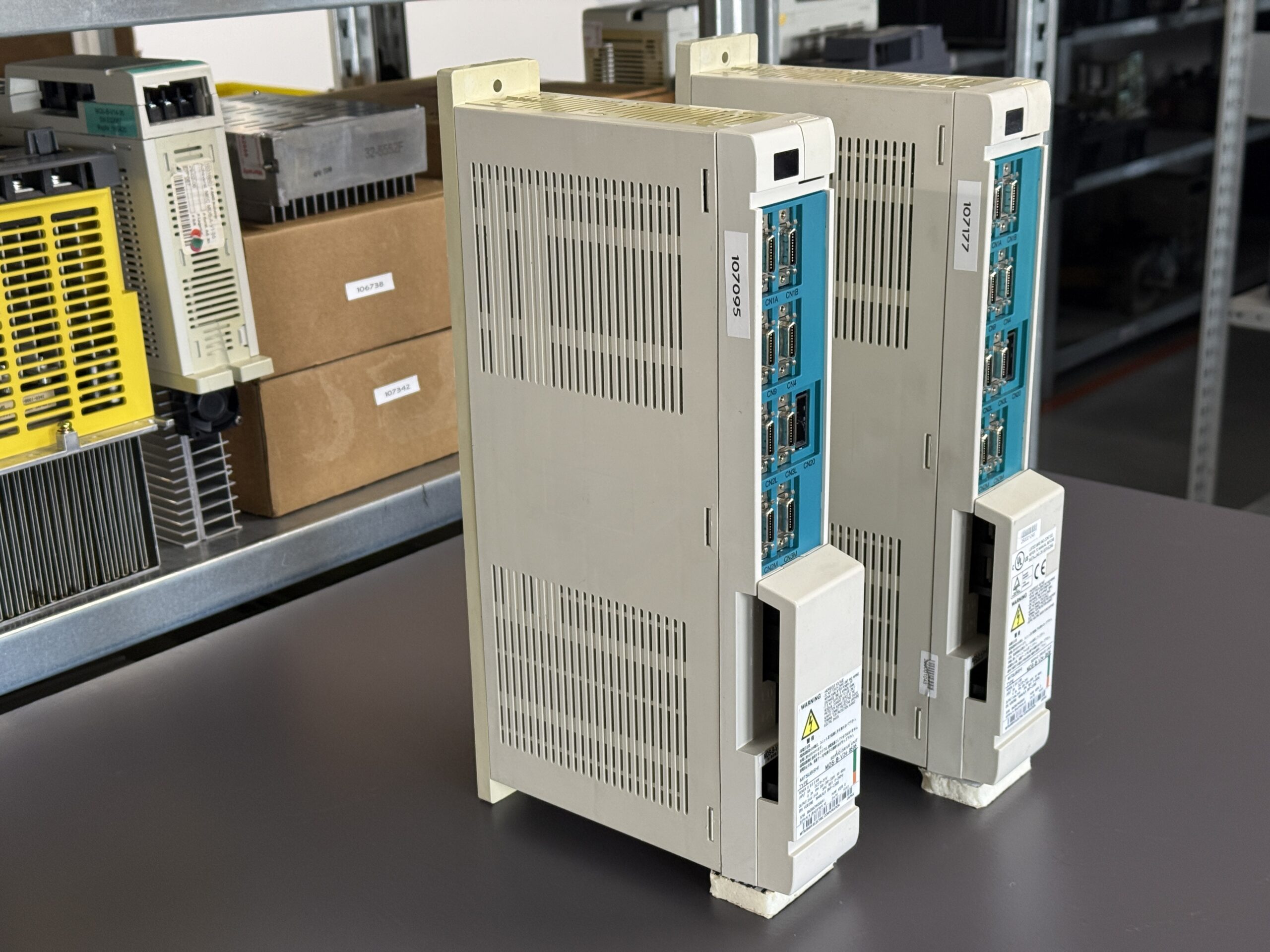

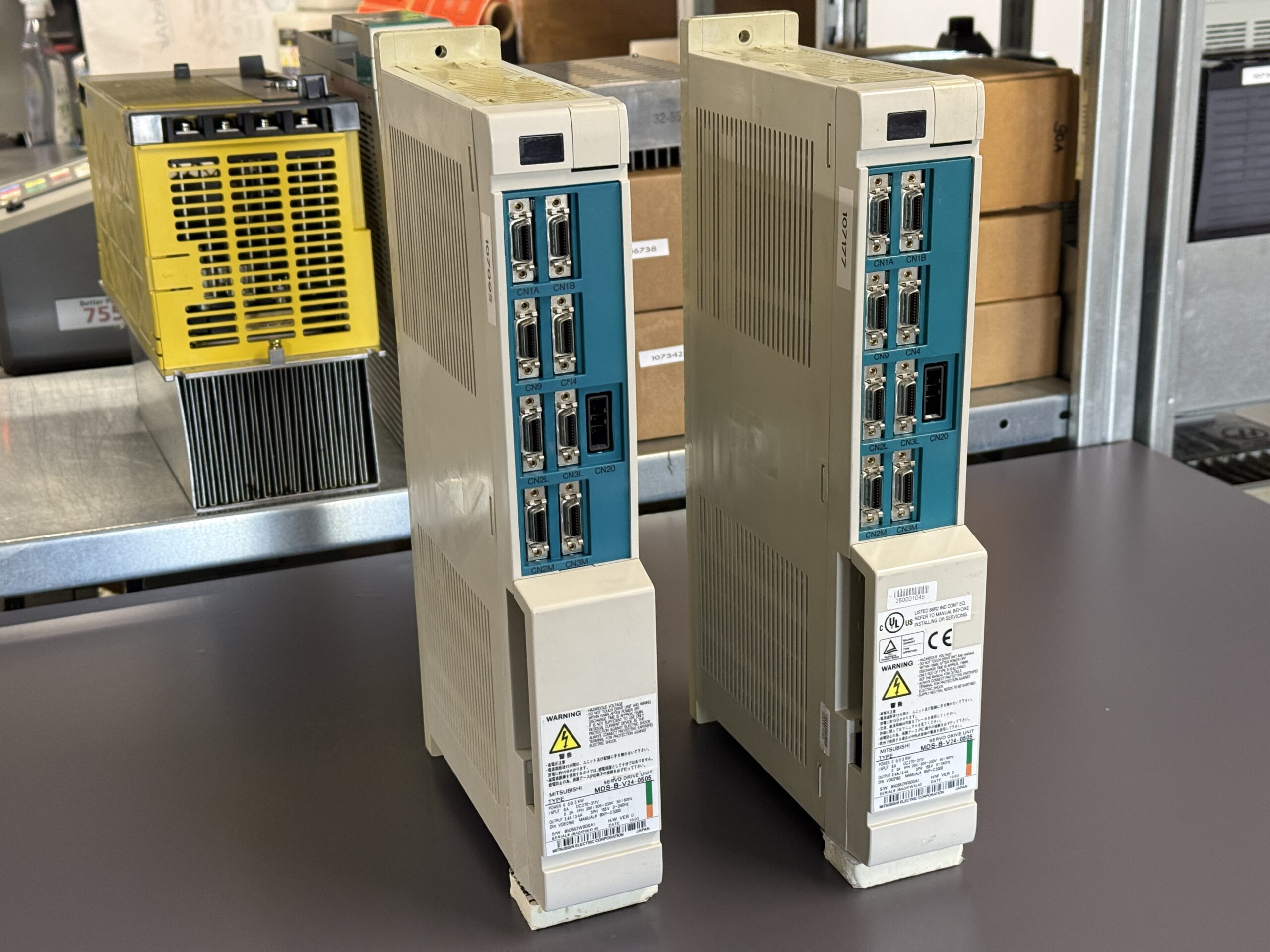

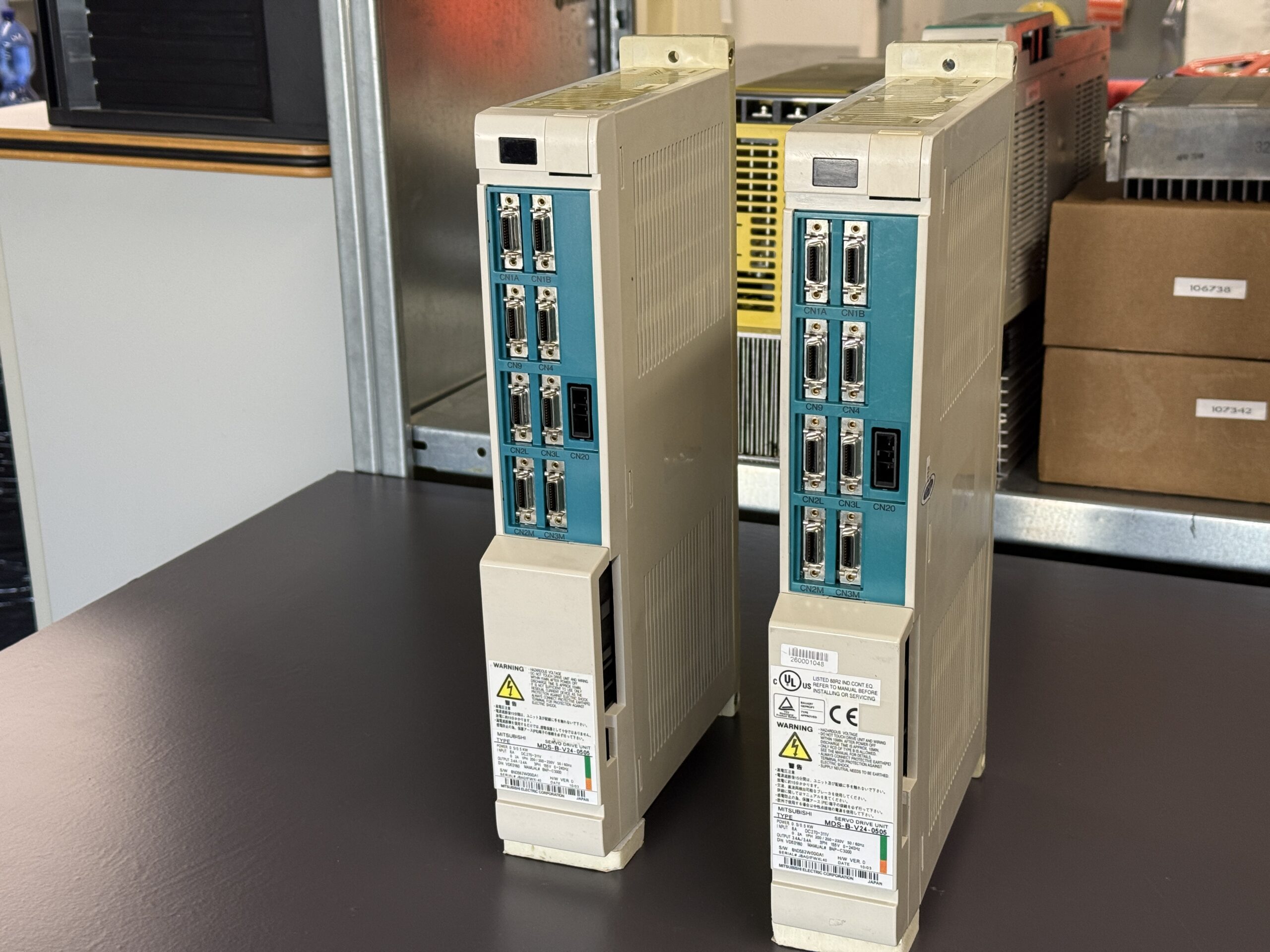

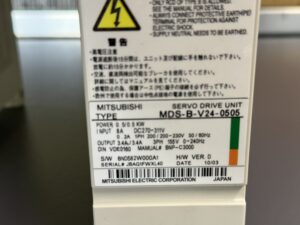

The supplied nameplates clearly identified the units as Mitsubishi MDS-B-V24-0505 Servo Drive Units with a power rating of 0.5/0.5 kW and production date 10/03. According to the component documentation, the power board and control board were equipped with RK155B-V24-0505 and BN634A810G51A assemblies.
The analysis was carried out based exclusively on the supplied service manuals, alarm tables and technical documentation.
Initial Diagnosis of the Servo Drive
During the initial visual inspection, both units already showed typical signs of thermal stress. The following points were particularly noticeable:
- discoloration in the power stage area
- aged electrolytic capacitors in the DC link circuit
- elevated thermal stress on the power semiconductors
- contaminated cooling areas
- heavily stressed connectors
Initially, neither MDS-B-V24-0505 unit was able to generate servo enable. The systems failed during initialization. LED diagnostics indicated internal power stage faults and communication problems, matching the alarm descriptions in the Mitsubishi MDS-D/DH alarm tables.
Additionally, the DC bus voltage was measured. The values were outside the stable operating range. The behavior corresponded to typical failure patterns caused by aging DC link capacitors and thermally stressed power modules.
The parallel failure of two identical units strongly indicated age related wear within the power section.
Actual Root Cause
After complete disassembly and electrical testing, several technical root causes were identified:
- aged DC link capacitors with increased ESR
- thermally stressed power semiconductors in the IPM section
- damaged gate driver circuits
- microcracks in thermally stressed solder joints
- unstable supply voltages in the control section
- elevated ripple currents in the power supply
- contact problems caused by connector aging
- thermally stressed regeneration circuitry
Particularly critical was the thermal stress in the RK155B-V24-0505 power assembly. Long term thermal cycling resulted in material fatigue and unstable voltage conditions.
The Mitsubishi MDS alarm tables describe these exact typical industrial failure patterns:
| Alarm | Meaning |
|---|
| 32 | Power module error / overcurrent |
| 33 | Overvoltage |
| 3B | Power module overheat |
| 30 | Over regeneration |
| 10 | Insufficient voltage |
Repair Measures on the Mitsubishi MDS-B-V24-0505
The repair process was performed entirely at component level.
The following work was carried out:
- replacement of aged electrolytic capacitors
- testing of power semiconductors
- inspection of IGBT driver circuits
- reworking of thermally stressed solder joints
- cleaning of heat sinks
- replacement of critical connectors
- verification of DC bus voltage stability
- load testing under simulated axis operation
- thermal endurance testing
- feedback signal verification
- power supply testing
Special focus was placed on thermal stability of the power stage. After repair, the units were operated under load for several hours.
Additionally, all ventilation and cooling areas were cleaned to reduce future thermal overload risks.
Final Testing and Return Shipment
After completion of the repair, final testing was carried out on an industrial servo test bench.
The following tests were performed:
- initialization
- servo enable
- dynamic response
- DC bus voltage stability
- load transitions
- thermal behavior
- communication stability
- overcurrent response
- brake chopper function
- long term operation under thermal load
After repair, both Mitsubishi MDS-B-V24-0505 units operated stably without any further alarm conditions.
Following successful final testing, both units were returned to the customer within a short time frame so that production could resume quickly.
Customer Feedback
“Both machines started operating reliably immediately after reinstallation. We were especially impressed by the fast fault analysis despite the identical failures in two completely different systems.”
More details about our Mitsubishi repair services can be found here:
Mitsubishi drive Repair by Industrypart
📞 Feel free to contact us with any questions about your Mitsubishi drive technology.
Our expert team is happy to help!
Technical Specifications Mitsubishi MDS-B-V24-0505
| Feature | Value |
|---|
| Manufacturer | Mitsubishi Electric |
| Model | MDS-B-V24-0505 |
| Device Type | Servo Drive Unit |
| Power | 0.5 / 0.5 kW |
| Input Voltage | DC270–311V |
| Input Current | 6A |
| Supply | 1PH 200/200–230V 50/60Hz |
| Output | 3PH 145V 0–240Hz |
| Output Current | 3.4A / 3.4A |
| Hardware Version | D |
| Production Date | 10/03 |
| Manual Reference | BNP-C3000 |
| Country of Origin | Japan |

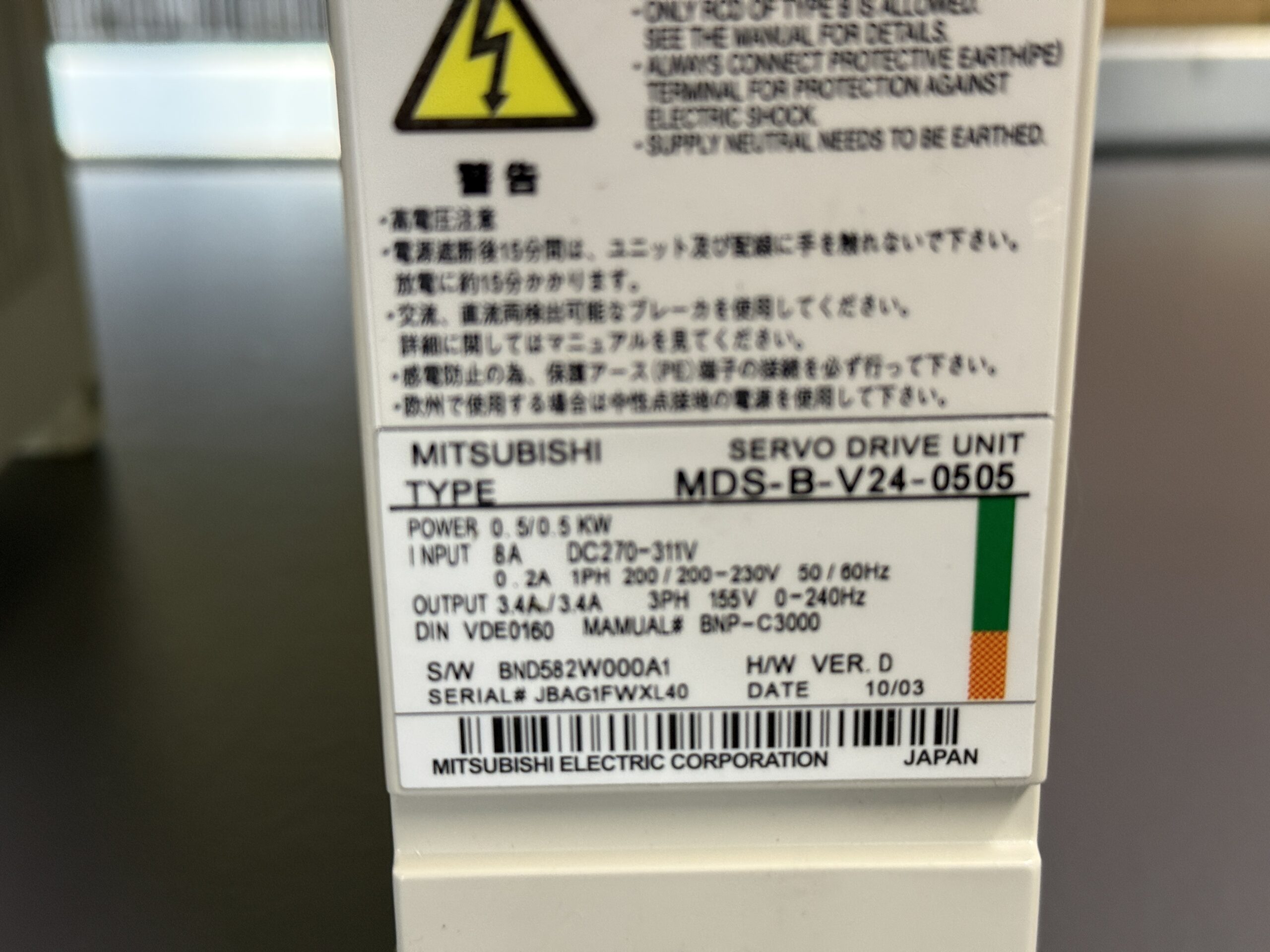

The values were taken directly from the supplied nameplate.
Operating Conditions
| Parameter | Value |
|---|
| Ambient Temperature | 0 to +55°C |
| Humidity | max. 90% non-condensing |
| Installation | control cabinet |
| Cooling | forced air cooling |
| Vibration Resistance | industrial environment |
| Protection Conditions | low dust environment recommended |
| Power Supply | 200–230VAC |
| Grounding | mandatory |
Cooperation With Other Devices
The Mitsubishi MDS-B-V24-0505 Servo Drive typically operates together with:
- Mitsubishi CNC controls
- servo motors with incremental encoders
- spindle drives
- MDS series power supplies
- regeneration units
- axis modules
- encoder systems
- industrial fieldbus systems
- CNC axis systems
The supplied Mitsubishi and Yaskawa documentation also describe typical encoder and feedback systems as well as multiphase power architectures.
Functional Description of the Servo Drive
The Mitsubishi MDS-B-V24-0505 is an industrial CNC servo amplifier designed for precise control of machine tool axis drives.
Its main functions include:
- current control
- speed control
- position control
- encoder evaluation
- overcurrent protection
- overtemperature protection
- DC bus monitoring
- regeneration management
- communication monitoring
The power stage generates motor supply voltages via PWM controlled power semiconductors. At the same time, the control system continuously monitors current, temperature and feedback signals.
The alarm and protection functions are designed to protect both the motor and the machine from damage.
Alarm and Error Codes Mitsubishi MDS Series
| Alarm | Fault Name | Meaning | Reset | Corrective Action |
|---|
| 10 | Insufficient voltage | DC bus undervoltage | PR | Check power supply |
| 17 | A/D converter error | Current feedback fault | PR | Check power stage |
| 24 | Grounding | Ground fault motor cable | PR | Measure insulation |
| 30 | Over regeneration | Regeneration overload | PR | Check braking resistor |
| 31 | Overspeed | Excessive motor speed | PR | Check feedback |
| 32 | Power module overcurrent | Power stage overcurrent | PR | Check IGBT/IPM |
| 33 | Overvoltage | DC bus overvoltage | PR | Check power supply |
| 3A | Overcurrent | Motor overcurrent | PR | Check motor and load |
| 3B | Power module overheat | Power stage overtemperature | PR | Check cooling |
| 46 | Motor overheat | Motor overheating | NR | Check load and ventilation |
| 50 | Overload 1 | Motor/drive overload | NR | Reduce load |
| 51 | Overload 2 | Continuous overload | NR | Check acceleration |
| 88 | Watchdog | CPU/system fault | AR | Check electronics |
Main Assemblies of the Mitsubishi MDS-B-V24-0505
| Assembly | Designation | Function | Inspection Notes |
|---|
| Control Board | RK112A-12 / BN634A980G51 | regulation and communication | check thermal stress |
| Power Board | RK155B-V24-0505 | power control | inspect IGBT section |
| DC Link | DC bus section | voltage stabilization | inspect capacitors |
| Power Supply | internal supply section | control voltages | check ripple |
| Heat Sink | thermal management | heat dissipation | clean thoroughly |
| Encoder Interface | feedback system | position feedback | verify signal quality |
Preventive Measures for the Customer
To prevent future failures of Mitsubishi MDS systems, the following recommendations were provided:
- regular control cabinet cleaning
- cooling fan inspection
- thermal imaging inspections
- preventive capacitor replacement
- connector inspection
- annual insulation testing
- cleaning of heat sinks
- verification of power quality
- regeneration unit inspection
Older MDS systems are especially sensitive to thermal stress and voltage fluctuations.
Conclusion
The simultaneous failure of two Mitsubishi MDS-B-V24-0505 Servo Drives clearly demonstrated the typical aging effects found in industrial power electronics used in CNC systems.
Through targeted assembly analysis, component level repair and extensive load testing, both units were successfully restored to reliable operation. As a result, the customer was able to resume production within a very short time.
Regular maintenance and thermal inspections significantly extend the lifetime of servo drives and reduce unexpected production downtime.
