24.06.2026 by Viktor Siebert

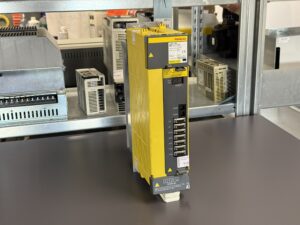

Repair of a Fanuc A06B-6154-H011#H590 αiSP 11HV Spindle Amplifier: Production Downtime Caused by Alarm 03 in the Power Section
Unexpected Spindle Failure in Production.
A few weeks ago, we received a Fanuc A06B-6154-H011#H590 αiSP 11HV Spindle Drive Unit for inspection. The customer reported a complete machine stoppage because the spindle control was no longer operational immediately after power-up. Alarm 03 was permanently displayed on the module’s 7-segment display.
In modern Fanuc Alpha i spindle amplifiers, this fault often leads to an immediate production stop because the spindle cannot be enabled and machining programs cannot be started.
The initial fault description already indicated a possible defect in the DC link circuit or the power section of the spindle amplifier.
Initial Diagnosis

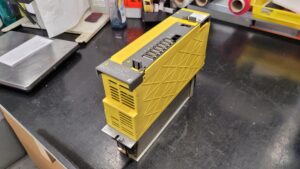

After arrival, the module underwent a comprehensive visual inspection.
The following areas were examined:
• Housing condition and connectors
• Power section and DC link circuit
• Condition of the power semiconductors
• Internal power supply sections
• Heat sink and cooling fan assembly
• Internal fuses and protection circuits
For this series, fault code 03 is described as “DC Link Fuse Blown” and typically indicates a failure within the DC link circuit or the power stage itself.
Initial measurements already revealed abnormalities within the power section.
Root Cause Analysis
The detailed investigation revealed several interconnected failure mechanisms:
• Activation of the DC link fuse
• Overload of the power stage
• Damage to power semiconductors in the main current path
• Stress on adjacent driver and protection circuits
• Thermal ageing caused by long-term operation
• Increased load caused by intensive spindle acceleration and deceleration cycles
Alarm 03 was not caused by the fuse itself. The fuse was only a consequence of a deeper failure within the power section.
Repair Measures
After completing the diagnostics, the unit was fully refurbished.
The following work was carried out:
• Complete cleaning of the module
• Removal of dust and contamination deposits
• Inspection of all power assemblies
• Replacement of damaged components in the power path
• Verification of gate drive circuits
• Inspection of current sensing circuits
• Examination of DC link components
• Thermal inspection of all cooling surfaces
• Verification of all protection functions
• Load testing under realistic operating conditions
In addition, several preventive measures were implemented to improve the long-term reliability of the amplifier.
Final Testing and Return Shipment
After repair, the Fanuc A06B-6154-H011#H590 was tested on our dedicated test bench.
The following functions were verified:
• Spindle startup
• Acceleration and deceleration cycles
• Current consumption
• Thermal behavior
• Protection functions
• Communication functions
• Long-term operation under load
After successfully completing all tests, the unit was approved for return shipment.
To mentioned Fanuc Drive: Fanuc A06B-6154-H011#H590 Spindel Drive αiSP module
More details about our Fanuc repair services can be found here:
Fanuc drive Repair by Industrypart
📞 Feel free to contact us with any questions about your Fanuc drive technology.
Our expert team is happy to help!
Technical Specifications
| Parameter | Value |
|---|
| Manufacturer | Fanuc Ltd. |
| Model | A06B-6154-H011#H590 |
| Description | αiSP 11HV Spindle Amplifier Module |
| Input Voltage | 565 – 679 VDC |
| Maximum Output Voltage | 480 VAC |
| Rated Output Current | 23 A |
| Power Rating | 13.2 kW |
| Device Class | Alpha i Spindle Amplifier |
| Manual Number | B-65282 |
| Country of Origin | Japan |
The technical data is based on the nameplate of the submitted unit.
Operating Conditions
| Parameter | Value |
|---|
| Installation Environment | Control cabinet |
| Cooling Method | Forced ventilation |
| Contamination Level | Clean industrial environment recommended |
| Humidity | Non-condensing |
| Maintenance | Regular cleaning recommended |
| Operating Temperature | According to manufacturer specifications |
Integration with Other Equipment
Typical combinations for this series include:
| Component | Description |
|---|
| Fanuc αi Spindle Motors | Main spindle drive |
| Fanuc CNC Controls | Series 16i, 18i, 21i, 30i |
| Fanuc Power Supply Modules | Power supply |
| Fanuc Servo Amplifier Modules | Axis drives |
| Fanuc FSSB Network | Communication between CNC and drives |
Functional Description
The Fanuc A06B-6154-H011#H590 belongs to the Alpha i spindle amplifier series.
Its primary function is to convert spindle speed and torque commands from the CNC control into precise motor control signals.
The amplifier processes:
• Speed commands
• Load requirements
• Motor feedback signals
• Protection functions
• Temperature monitoring
• Current regulation
The integrated protection functions continuously monitor:
• Overcurrent
• Overvoltage
• Overtemperature
• Communication faults
• Sensor faults
• Power stage faults
Alarm and Fault Codes
| Alarm | Fault Name | Meaning | Reset | Recommended Action |
|---|
| 01 | Motor Overheat | Motor overheating | After cause removal | Check cooling system |
| 02 | Excessive Speed Deviation | Speed deviation | After cause removal | Check feedback system |
| 03 | DC Link Fuse Blown | DC link fuse activated | After repair | Inspect power section |
| 07 | Overspeed | Excessive motor speed | After cause removal | Check speed sensor |
| 09 | Main Circuit Overheat | Power stage overheating | After cooling | Check fan operation |
| 11 | DC Link Overvoltage | DC link overvoltage | After cause removal | Check braking circuit |
| 12 | DC Link Overcurrent | Overcurrent condition | After cause removal | Check motor and power stage |
| 24 | Serial Communication Error | Communication failure | After cause removal | Check communication bus |
| 73 | Motor Sensor Disconnected | Sensor feedback missing | After cause removal | Check encoder |
| 88 | Radiator Fan Stopped | Cooling fan failure | After cause removal | Replace fan |
Preventive Measures for the Customer
| Action | Recommendation |
|---|
| Control cabinet cleaning | Every six months |
| Fan inspection | Annually |
| Air filter replacement | According to contamination level |
| Thermal inspection | Annually |
| Connector inspection | Annually |
| Load profile monitoring | Regularly |
| Long-term operational documentation | Recommended |
Conclusion
This repair case of the Fanuc A06B-6154-H011#H590 clearly demonstrates that Alarm 03 is often caused by deeper failures within the power section. Simply replacing the fuse rarely solves the underlying issue. Only a complete analysis of the DC link circuit, power semiconductors and driver circuitry can ensure a reliable long-term repair. After successful testing, the repaired spindle amplifier was returned to production and restored machine availability.
