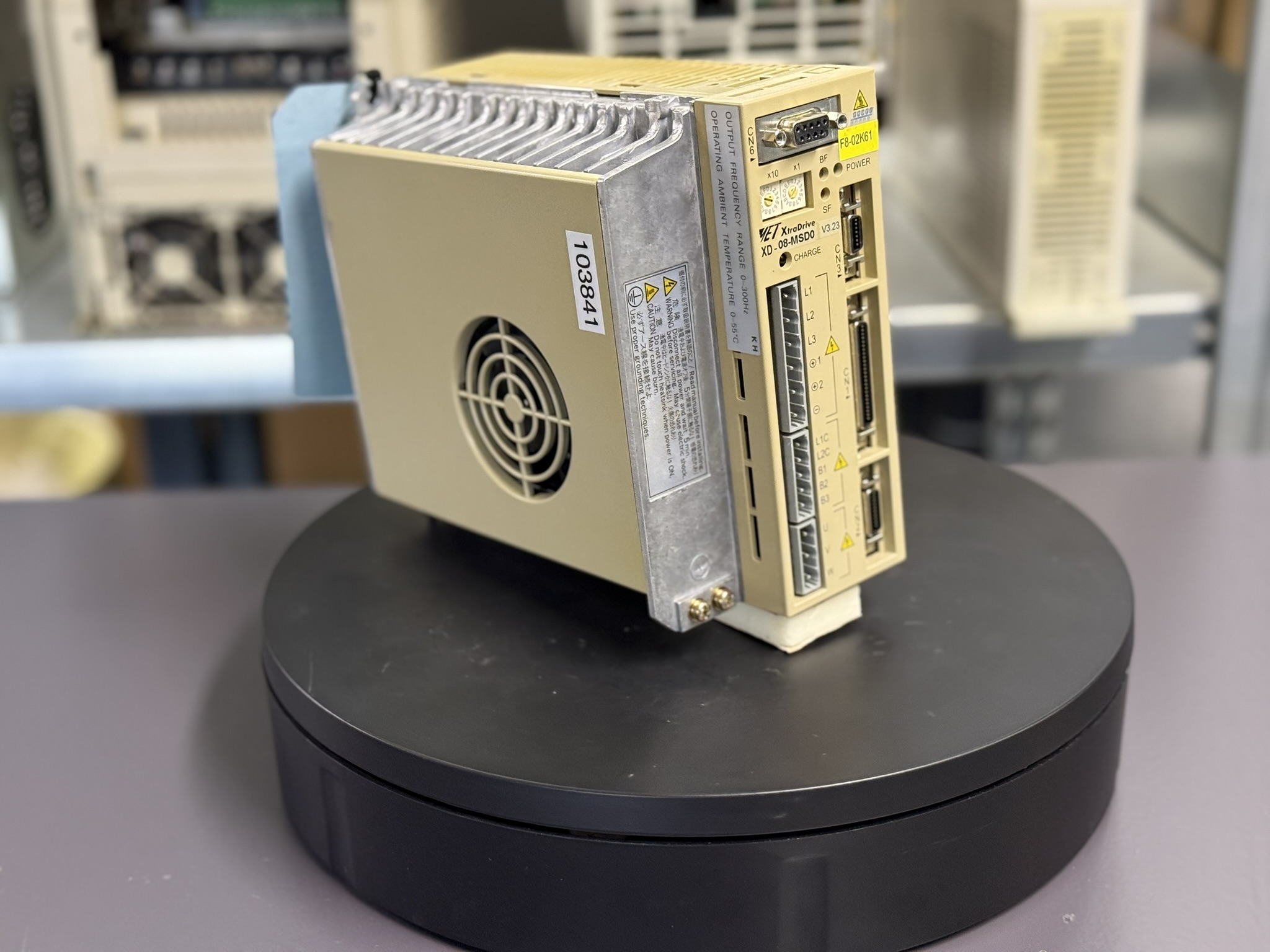

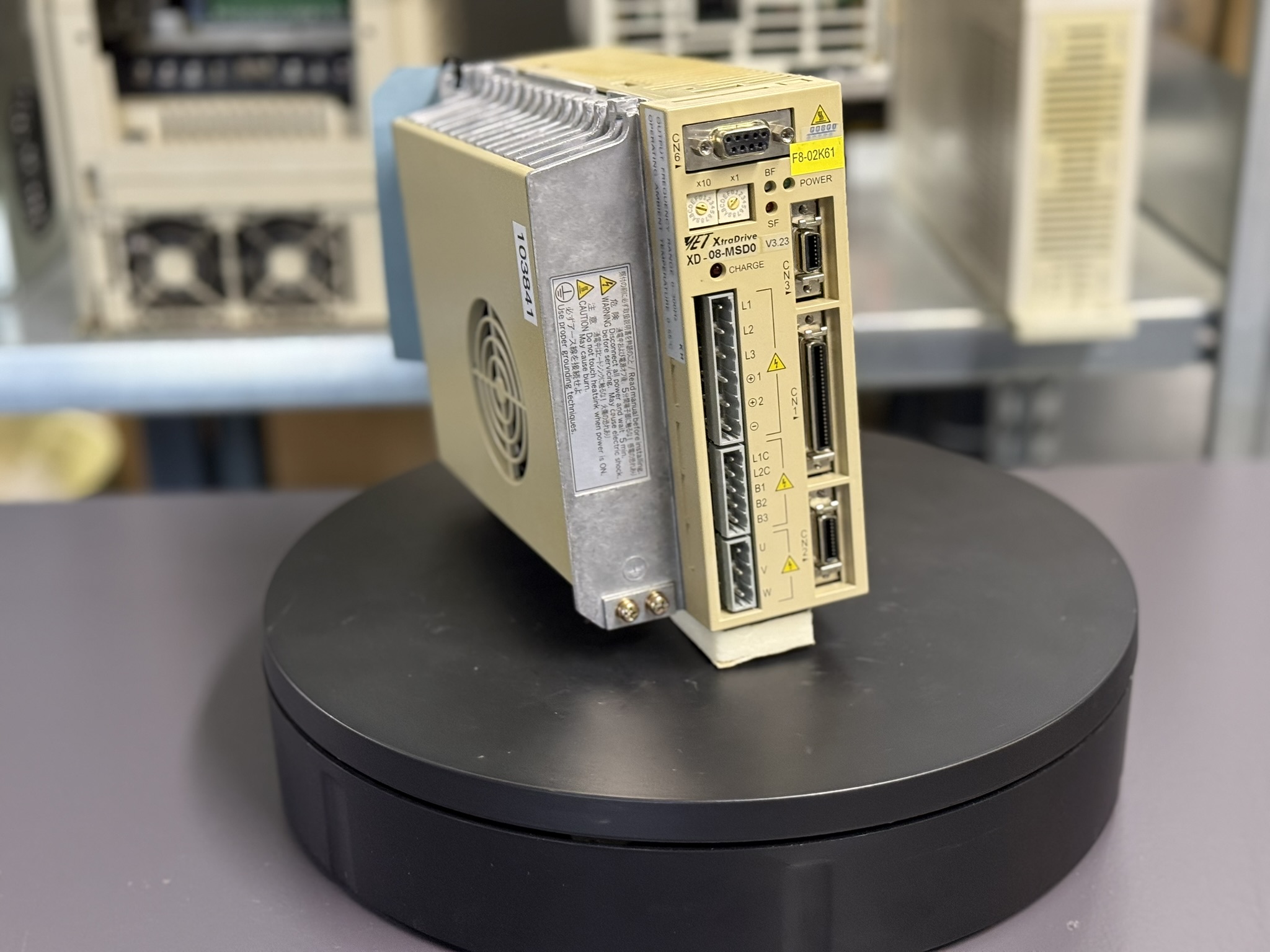

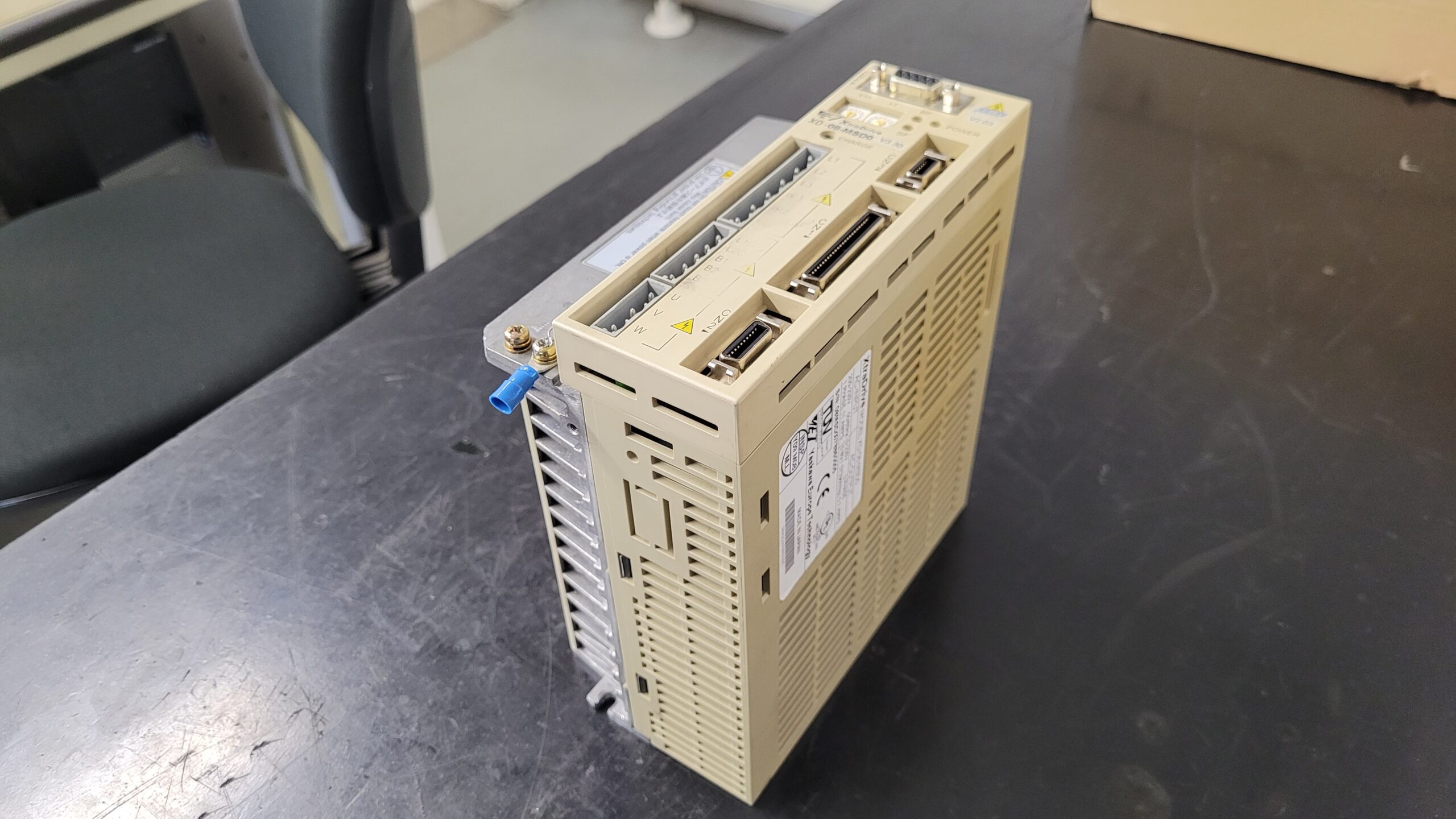

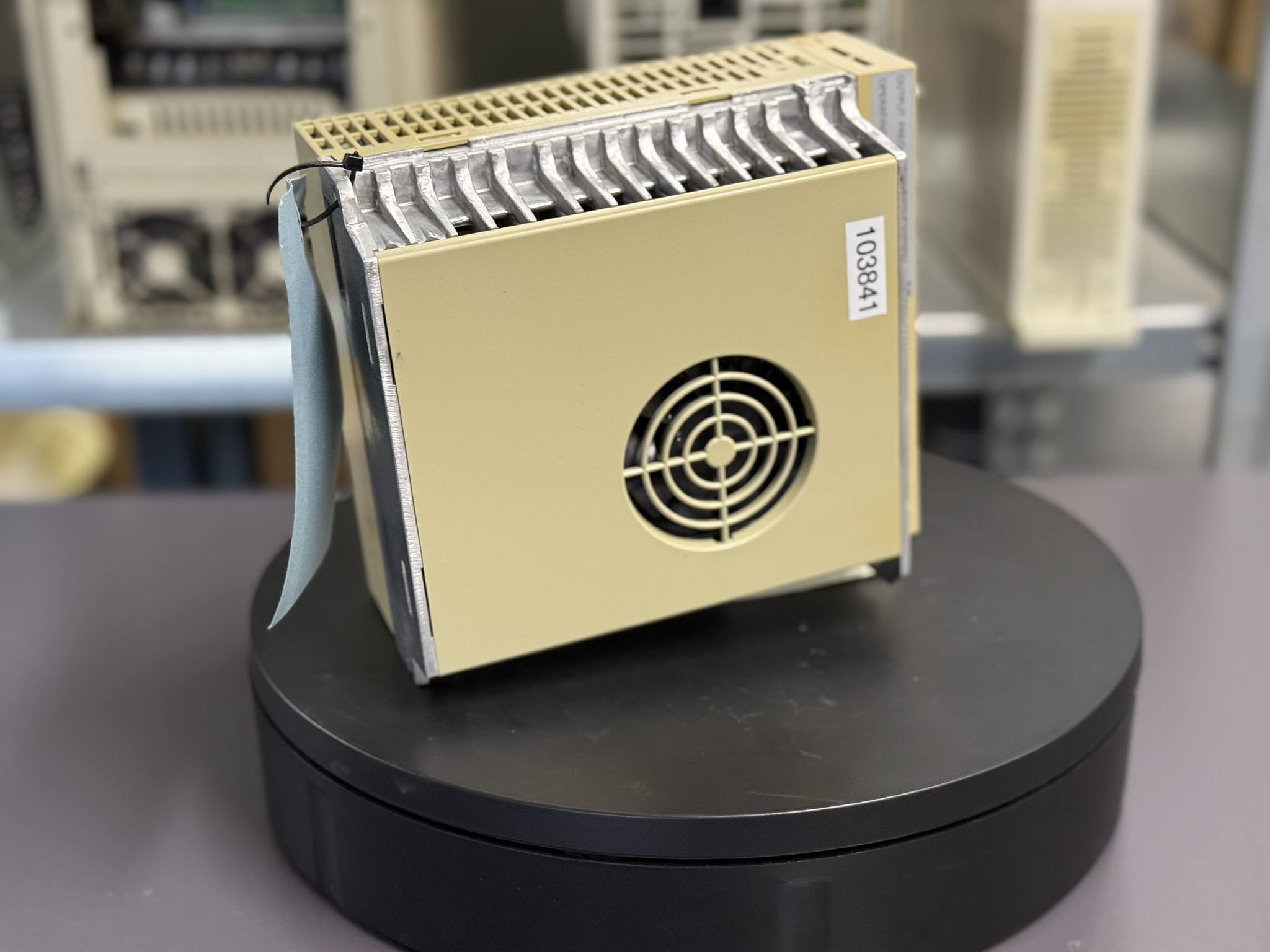

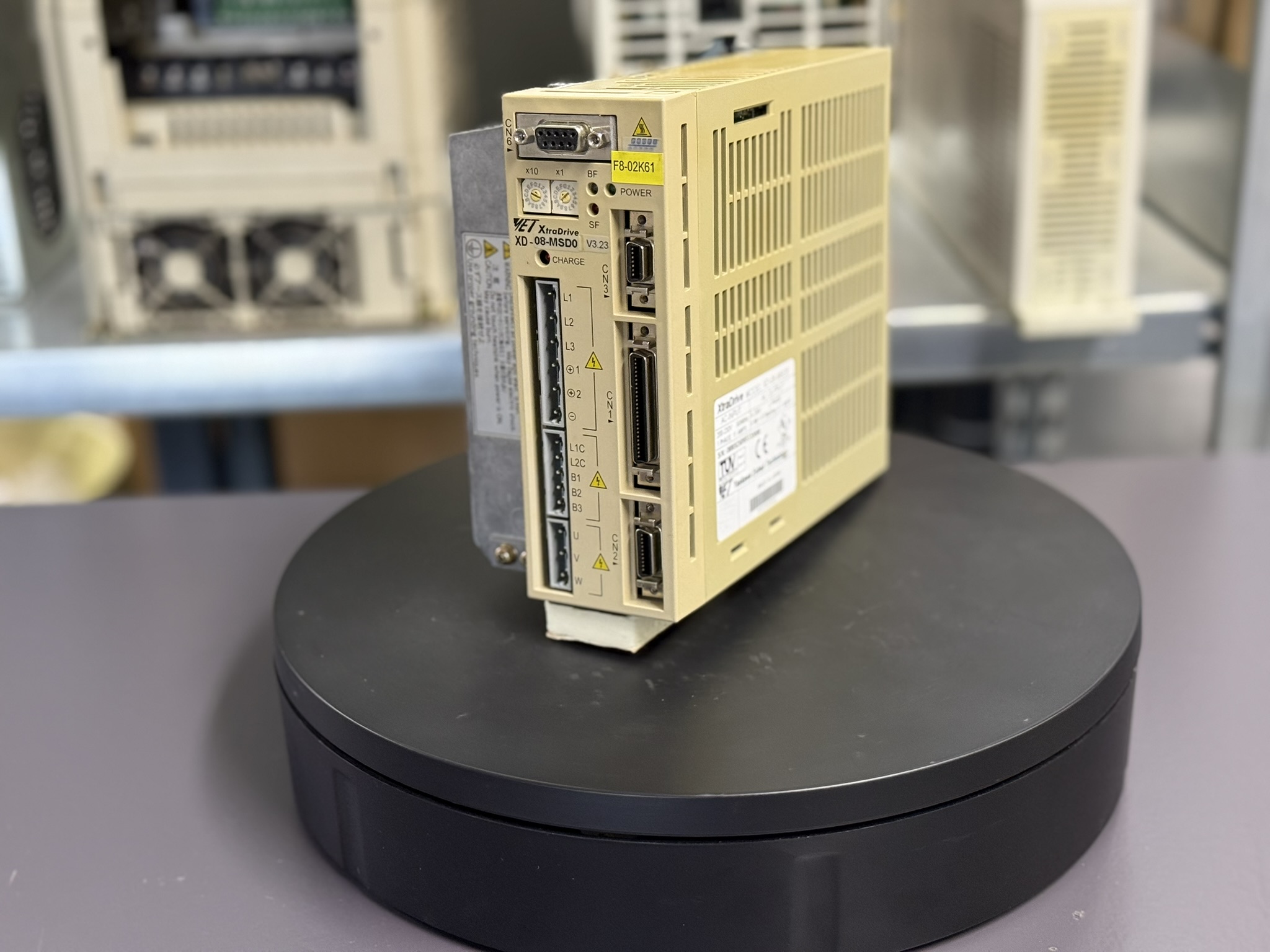

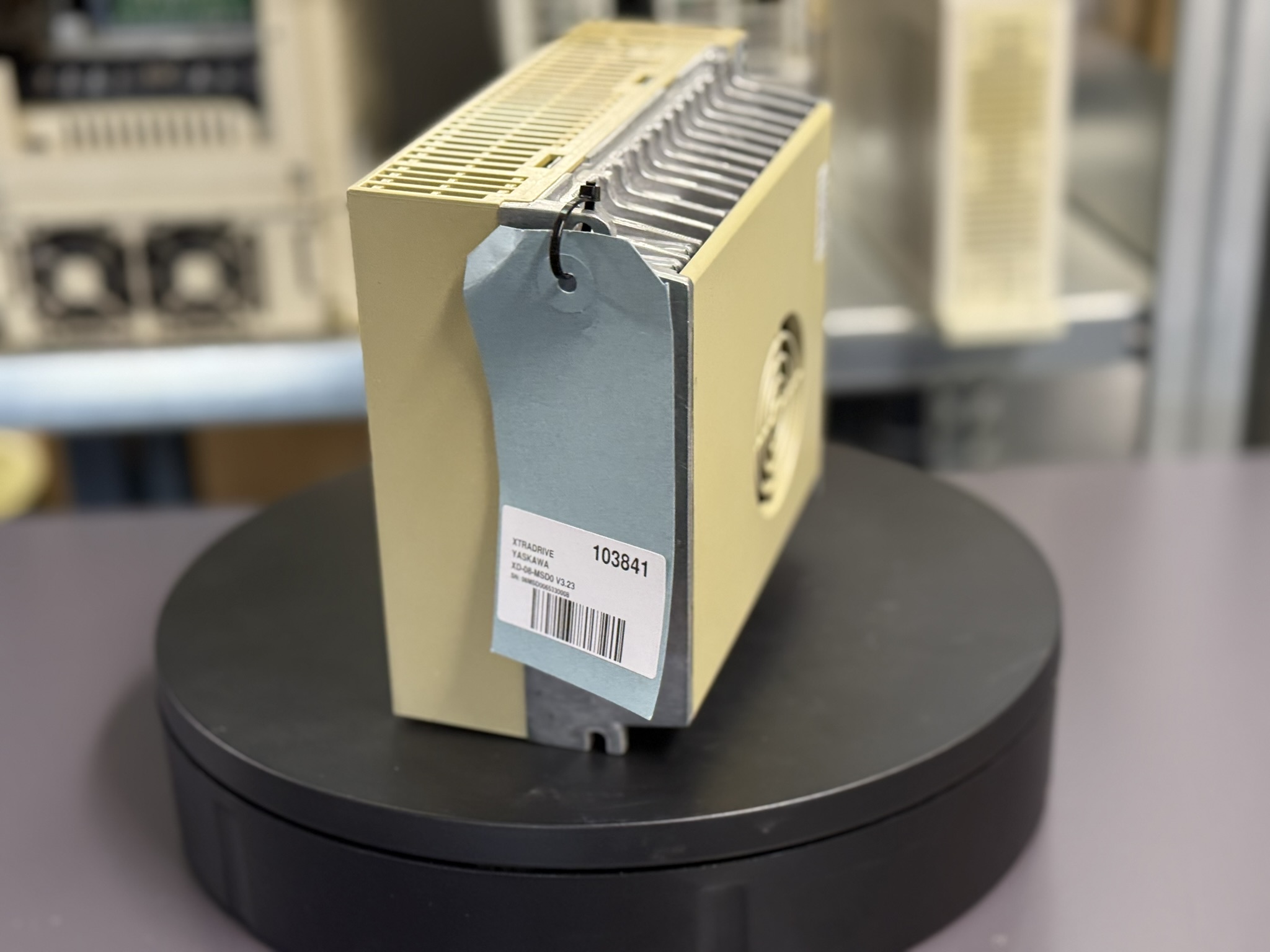

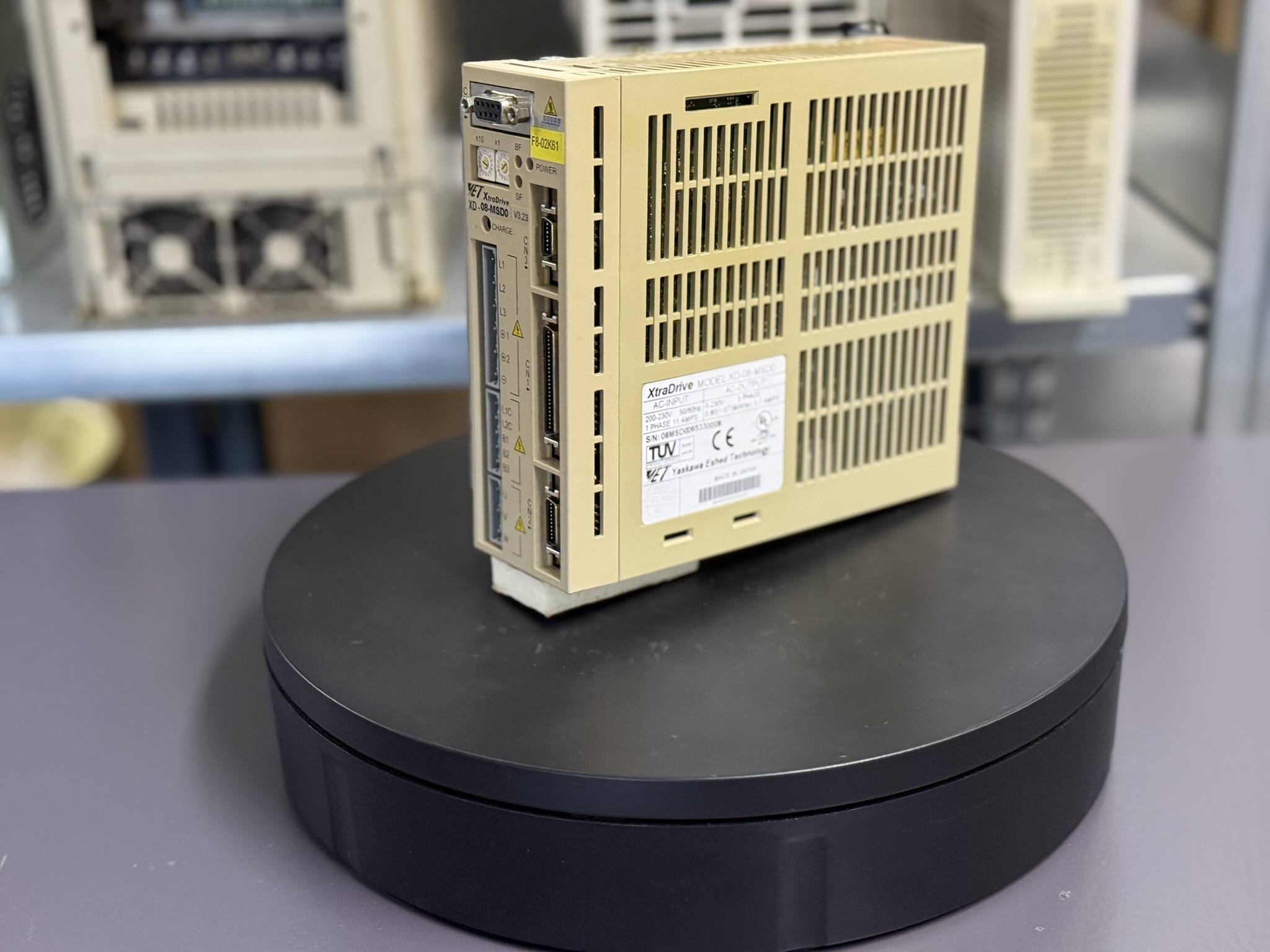

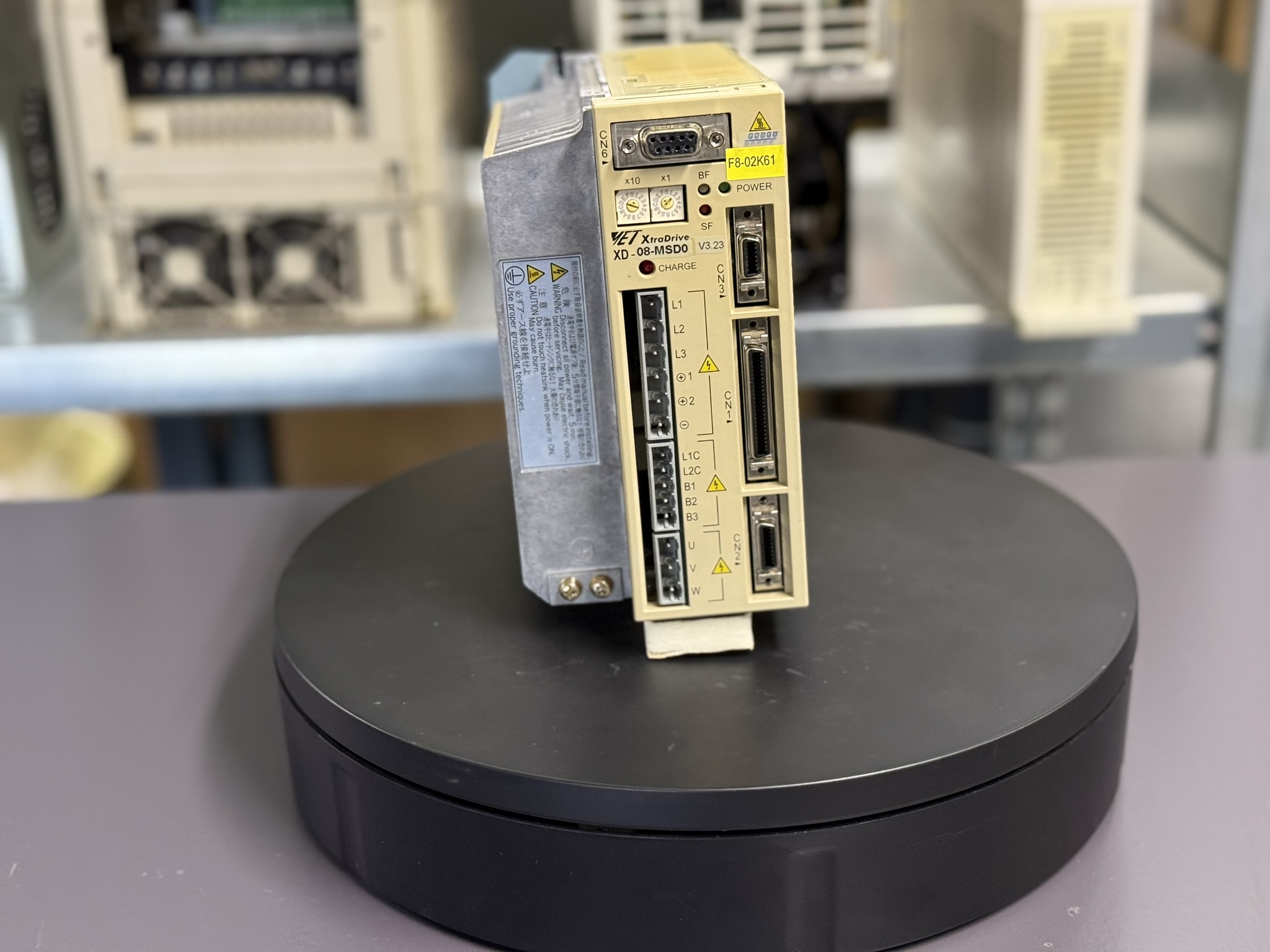

The customer sent us a Yaskawa XtraDrive XD-08-MSD0 Servopack that failed to process pulse commands correctly.
While manual JOG operation and analog control worked flawlessly, the machine remained inactive in automatic mode.
The fault only appeared under production conditions – a classic intermittent control issue that ordinary bench tests could not reveal.

Before contacting us, the customer had gone through a long and costly journey: suspecting the controller, then replacing cables, encoder, and motor.
Even a competitor’s workshop declared the unit “fully functional.”
Still unconvinced, the customer turned to us after a recommendation from another satisfied client.

At our facility, the amplifier was connected to our dedicated Yaskawa test bench, which supports not only torque and position tests but also real-time pulse signal tracing using oscilloscope diagnostics.
Within minutes, the true fault became apparent. Preventing the unit from reading pulse trains correctly.
The amplifier was fully disassembled, thoroughly cleaned, and inspected.
We replaced the faulty components, including:

• Input operational amplifier and level-shifter ICs
• Several electrolytic capacitors (preventive replacement)
• Signal coupling resistors in the input stage

After reassembly, the drive underwent a 2-hour endurance and load test in all modes (analog, pulse, and JOG).
The amplifier passed all tests with stable performance.

The customer was delighted, after months of searching, the machine was finally running again.
Since the Yaskawa XtraDrive series is no longer manufactured and unavailable on the open market, this successful repair saved substantial cost and downtime.

Such defects are typical of aging signal-path components that behave normally in idle but fail under real load.
Thanks to our extensive experience with these units, we could identify and resolve the fault quickly and permanently.

Preventive Measures for the Customer

• Clean air vents and heatsink fins every 6–12 months
• Inspect encoder and signal cables for wear and secure connections
• Replace cooling fans after approx. 4 years of operation
• Check electrolytic capacitors every 5–6 years
• Test pulse and analog input functionality during scheduled maintenance
• Measure brake circuit voltage and inspect for discoloration or heat marks

Routine inspection every 3–5 years significantly extends lifespan and prevents costly production downtime.

Conclusion

The repair of the Yaskawa XtraDrive XD-08-MSD0 once again demonstrated the importance of specialized testing to detect faults that remain hidden in standard diagnostics.
Regular maintenance and targeted signal analysis protect the electronics and ensure long-term machine productivity.

For further details such as pricing and delivery times regarding the Yaskawa XtraDrive XD-08-MSD0

For more information about our Yaskawa repairs, please click here.

📞 Please feel free to contact us with any questions regarding your Yaskawa drive technology. Our experienced team is always ready to assist you.

Technical Profile

Operating Environment & Compatible Equipment

The XtraDrive XD-08-MSD0 Servopack is typically used in CNC machining centers, pick-and-place robots, precision manufacturing machines, and automated production lines.
It is often found in systems originally built by Yaskawa Eshed Technology or OEMs such as Robotech, Isel, IAI, Yamaha, and Mitsubishi.

Compatible Motors:

• Yaskawa servo motors of the SGMAH, SGMPH, and SGMSH series (200 V class, ≤ 0.85 kW)
• Encoder systems with absolute or incremental feedback (17–20 bit)
• Controllers supporting pulse, analog, or jog control modes

Environmental Conditions:
Temperature 0–40 °C, humidity ≤ 85 % rH (non-condensing).
Installation in a clean, vibration-free control cabinet with sufficient airflow is recommended.

Functional Description

The XtraDrive XD-08-MSD0 is a compact AC servo amplifier designed for precise torque, speed, and position control of the connected servo motor.

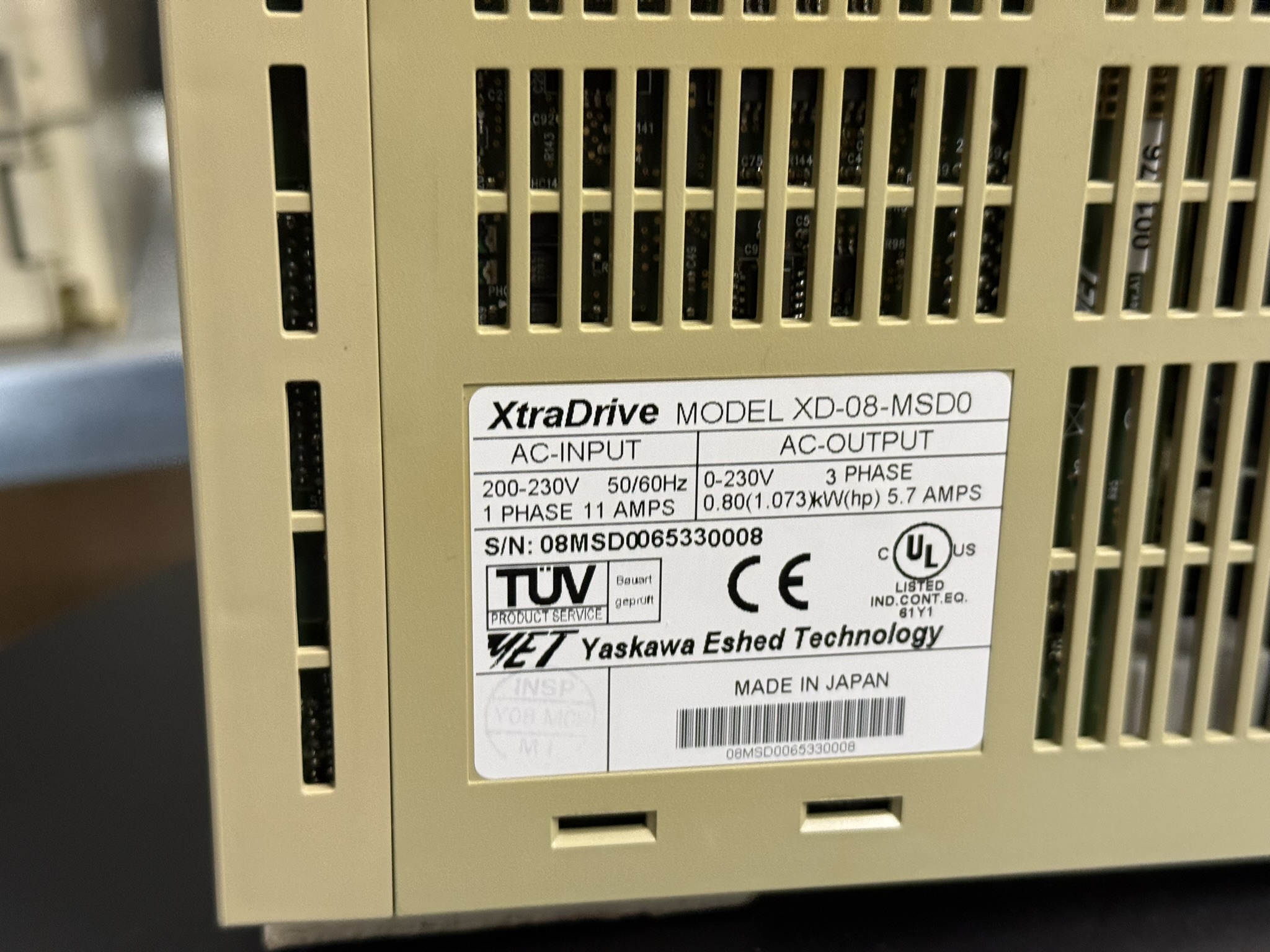

It converts single-phase 230 V AC input into a controlled three-phase output voltage.
Through pulse, analog, or serial interfaces, the controller’s setpoints (from PLC, CNC, or robot control) are transformed into finely modulated PWM signals that drive the motor windings with high precision.

Core Functions:

• Pulse Control: for precise position and speed reference commands
• JOG Mode: manual motor testing without external control
• Protection Features: overcurrent, overvoltage, overheat, encoder error, undervoltage
• Fault Detection: automatic shutdown under unsafe operating conditions
• Regulation Loops: position, velocity, and current loops with PID structure
