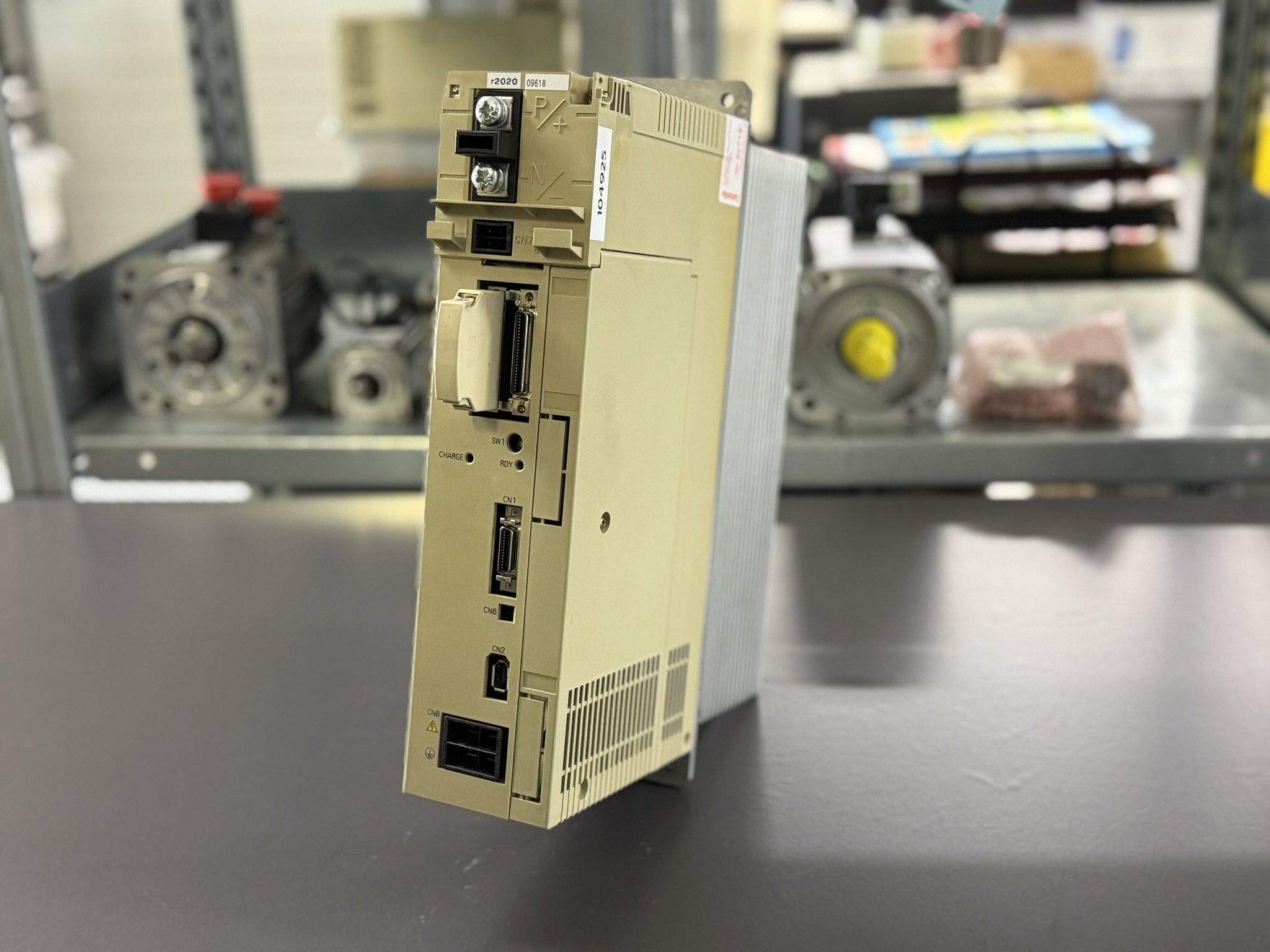

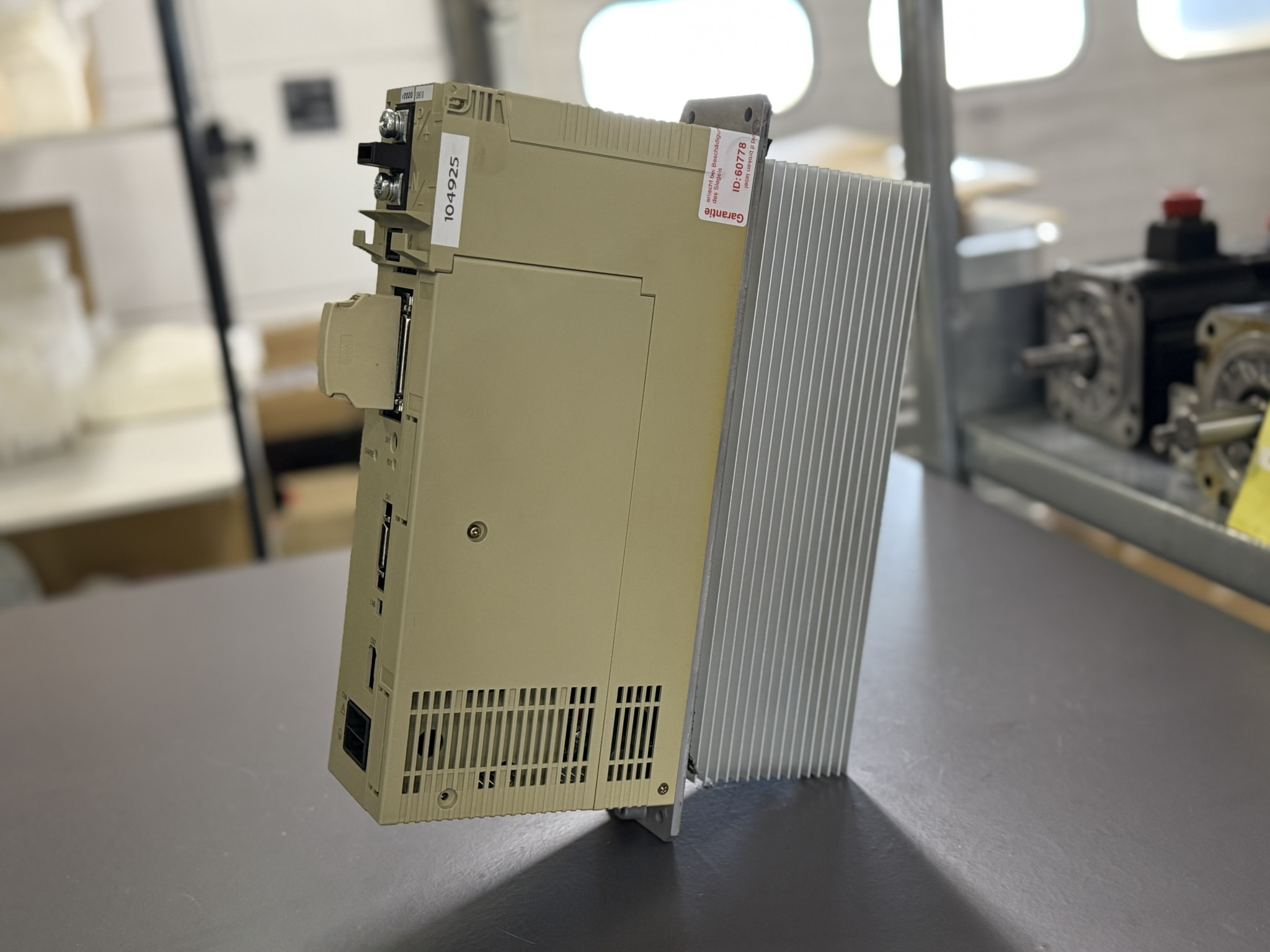

Yaskawa SGDK-50AEA AC Servopack Hauptansicht
04.07.2025 by Viktor Siebert
Case Study: Yaskawa SGDK-50AEA. Why the Replacement Drive Didn’t Work

A customer from Italy contacted us with a pressing issue: his Matsuura CNC machine had gone down due to a fault in the Yaskawa SGDK-50AEA Servopack.

In a hurry to get the machine running again, he purchased a used replacement unit online, same model, same type. But after installation, the drive didn’t work at all.

Frustrated and without support from the machine manufacturer, he turned to us. One of our experienced sales engineers quickly suspected a parameter compatibility issue and offered the customer a full analysis.

What the customer sent us:

  • The original (defective) Servopack from the Matsuura machine
  • The used replacement unit purchased online

In our lab, we performed:

  • A full visual and diagnostic inspection
  • A detailed parameter comparison between both units

The solution:

The replacement unit was actually not defective. But it came from a completely different machine type. Its internal parameter set was incompatible with the application on the customer’s Matsuura machine.

Typical mismatches included:

  • Motor tuning values
  • Torque and speed limits
  • Encoder feedback configuration
  • Control loop parameters

These differences prevented the drive from operating, or even initializing correctly.

We extracted the parameter set from the original unit and cloned it to the replacement device. After final testing and full load simulation, the drive was returned in perfect working condition.

The result:

  • The machine was back in operation
  • The customer learned: A drive is not plug-and-play parameters matter
  • A follow-up order is already in discussion

Takeaway:

Yaskawa drives like the SGDK-50AEA require machine specific parameter configurations, tailored to motor, encoder, mechanical setup, and application logic.

Installing a “compatible looking” drive without verifying the parameter set will fail even if the hardware is fine.

Our service covers:

  • Drive repair
  • Parameter analysis and extraction
  • Cross-device comparison
  • Safe reprogramming and full load testing

Additional Information: Yaskawa SGDK-50AEA Servopack

For further details on our Yaskawa repair services, please visit here.

📞 Please feel free to contact us if you have any questions regarding your Yaskawa drive technology. Our experienced team is always available to assist you.

Alarm Messages & Troubleshooting – Yaskawa SGDK-50AEA

Alarm CodeDescriptionSolution
0x02EEPROM data errorInitialize the unit or reload the control settings
0x03Main circuit detecting element errorCheck the main power circuit and internal protection elements
0x10Overcurrent / Short circuitInspect output cables, motor, and insulation
0x20Fuse blownReplace fuse, identify and eliminate root cause (e.g., short circuit)
0x40Over-voltage in the DC busStabilize DC bus voltage and check supply voltage quality
0x41Low voltageVerify incoming power supply voltage
0x60Tune-up incomplete (with encoder connected)Check encoder signals and connections, repeat automatic tune-up
0x81Overspeed detected at the motorCheck encoder accuracy and configured speed limits
0xC5Motor magnetic pole detection errorRe-initialize encoder or verify correct motor type
0xF1Missing power line phase detectedCheck phase sequence and power cable connections
0xF2Power frequency deviationMeasure and verify power frequency (should be 50/60 Hz ±5%)

Device Data – Yaskawa SGDK-50AEA

ParameterValue
ModelSGDK-50AEA
DC Input Voltage270–325 V
DC Input Current20.7 A
AC Output Voltage0–230 V
Output Phase3-phase
AC Output Current32.9 A
Rated Output Power5.0 kW (approx. 6.7 HP)
ManufacturerYaskawa Electric, Japan

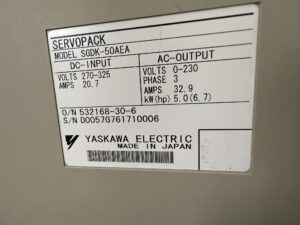

Nameplate IdentifiersS/N: D0057G761710006O/N: 532168-30-6
