25.09.2025 by Viktor Siebert
Repair case Mitsubishi Spindle Drive MDS-C1-SPM-110 no function, no display

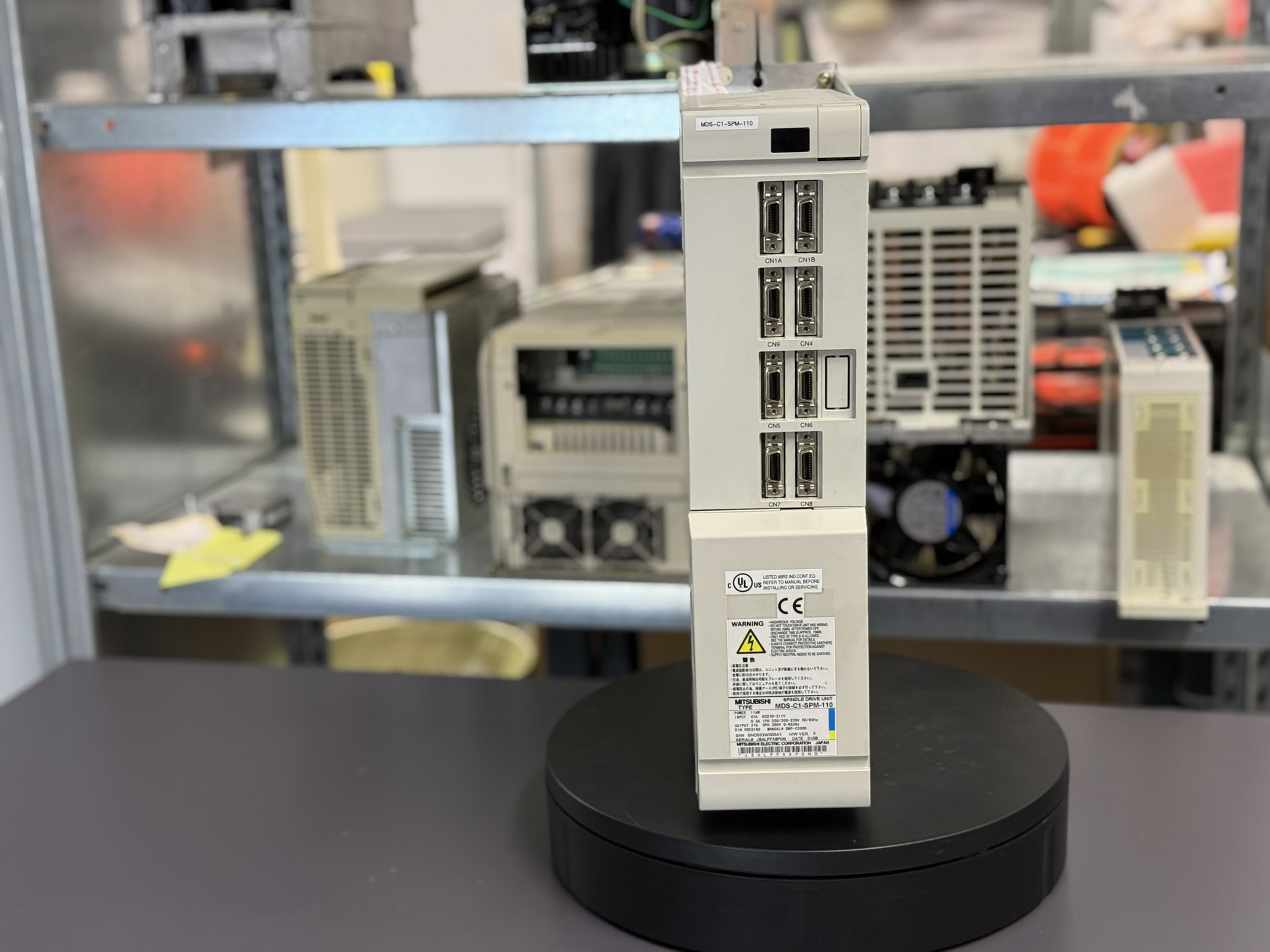

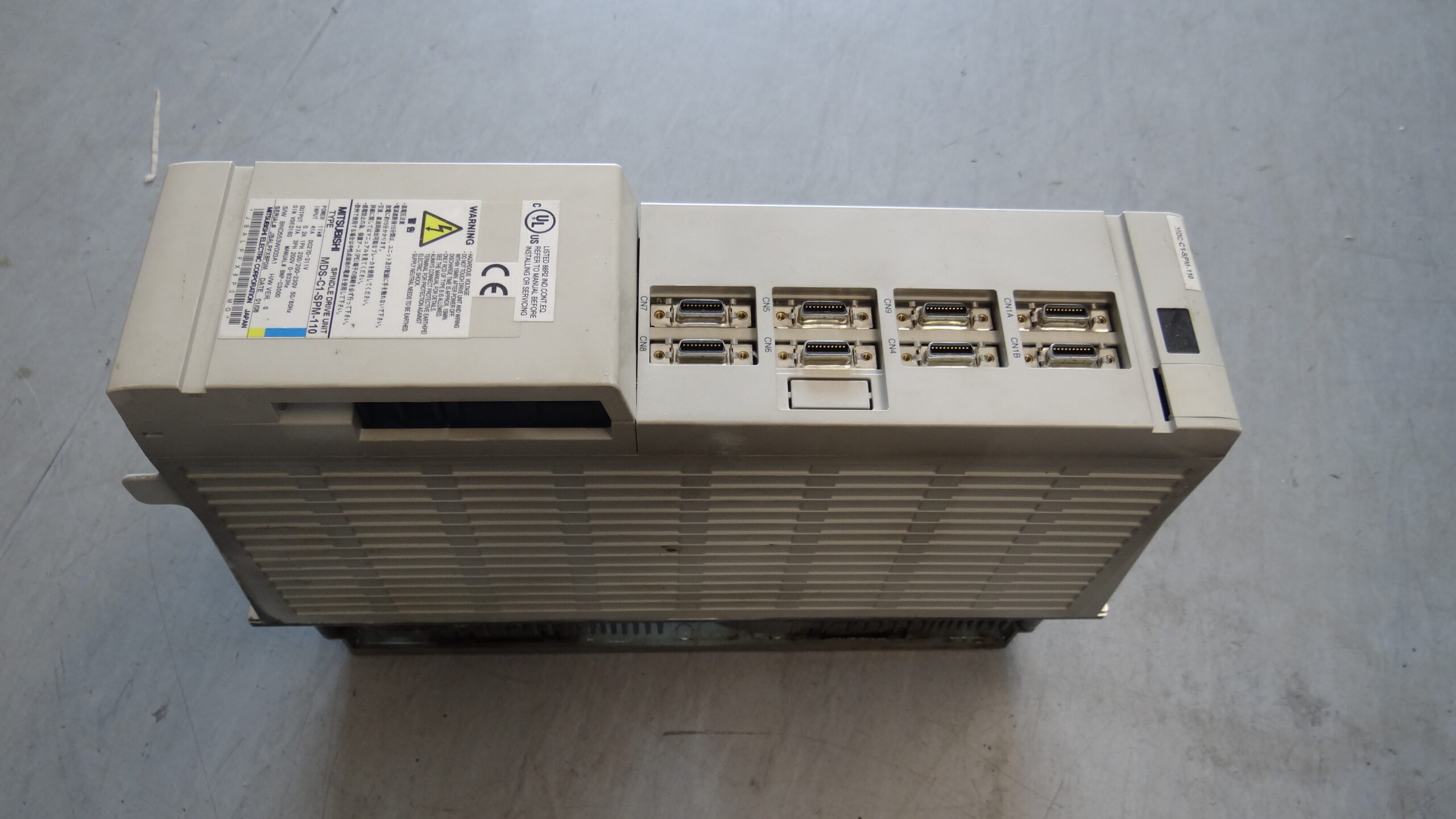

The submitted MDS-C1-SPM-110 had completely failed.
The customer reported that the machine fuses kept tripping. Only after removing the drive could the CNC system be restarted.
Inspection revealed no LED indicators, no operation. Inside, we found severe destruction in the power module. The internal power supply was also damaged. Such failures typically occur when the IPM shorts out, causing secondary damage.
The repair process included:
- Full disassembly with documentation.
- Cleaning of PCBs and heatsinks.
- Replacement of power module (IPM, driver ICs, PSU components).
- Preventive replacement of capacitors, optocouplers, connectors.
- Installation of new fans.
- Intermediate testing (insulation measurement, signal tracing).
Final load tests at the test bench:
- Simulated machining cycles.
- Thermal monitoring.
- Signal verification.
- Hours of load operation.
The drive was successfully restored and returned with a full test protocol.
Preventive Measures for Customers
- Regular fan and filter replacement (every 12–24 months).
- Cabinet cleaning to prevent dust buildup.
- Annual insulation measurements.
- Check all connectors and cables, especially motor and encoder.
- Inspect seals against humidity ingress.
- Preventive replacement of capacitors and relays after 7–10 years.
Conclusion
This case shows:
A defective spindle drive can block an entire CNC system. Through professional repair with preventive replacement, functionality and long-term stability were restored.
Regular maintenance saves costs, protects machines, and minimizes downtime.
To mentioned Mitsubishi Drive: Mitsubishi Spindle Drive MDS-C1-SPM-110
More details about our Mitsubishi repair services can be found here:
Mitsubishi drive Repair by Industrypart
📞 Feel free to contact us with any questions about your Mitsubishi drive technology.
Our expert team is happy to help!

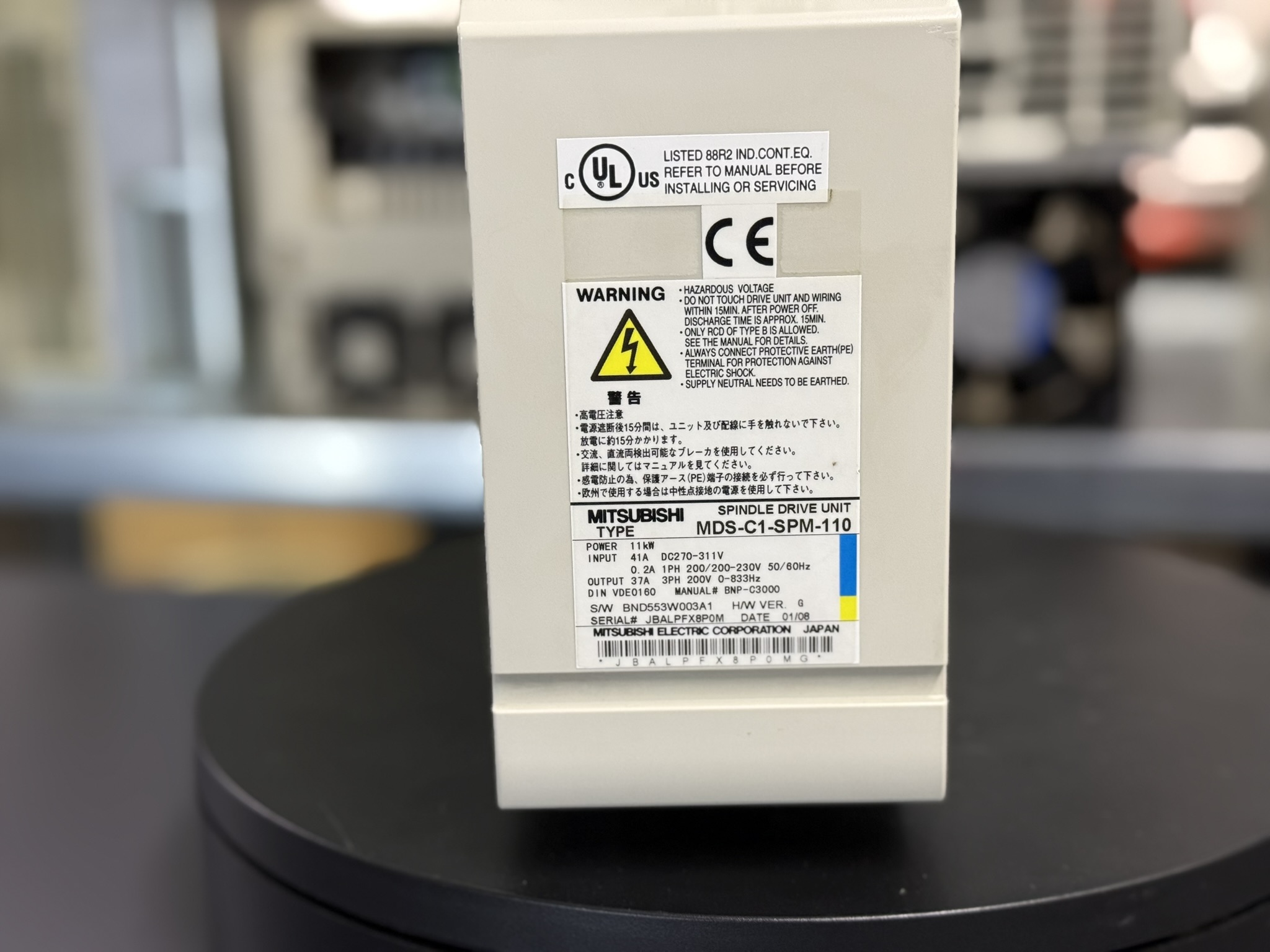

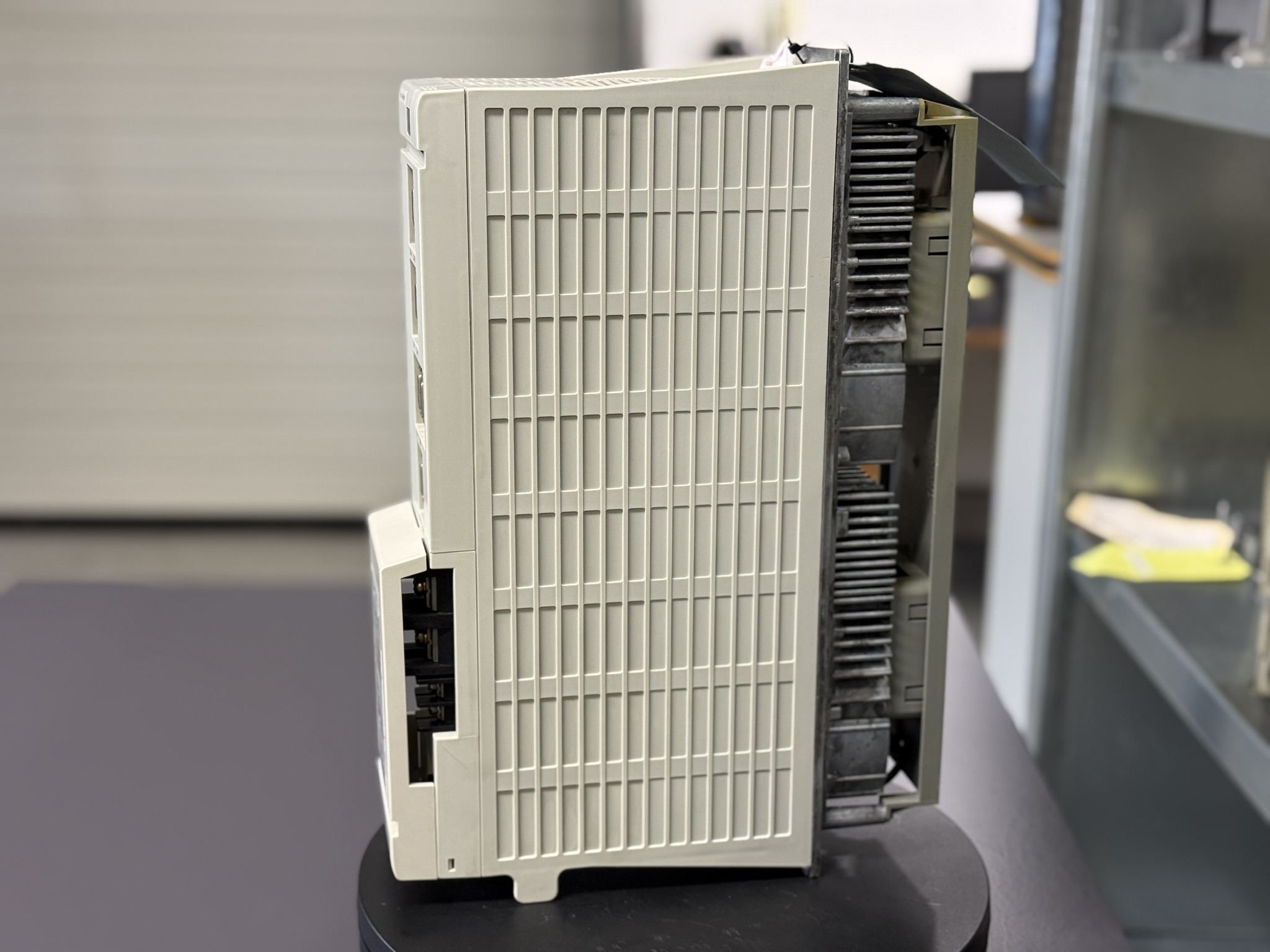

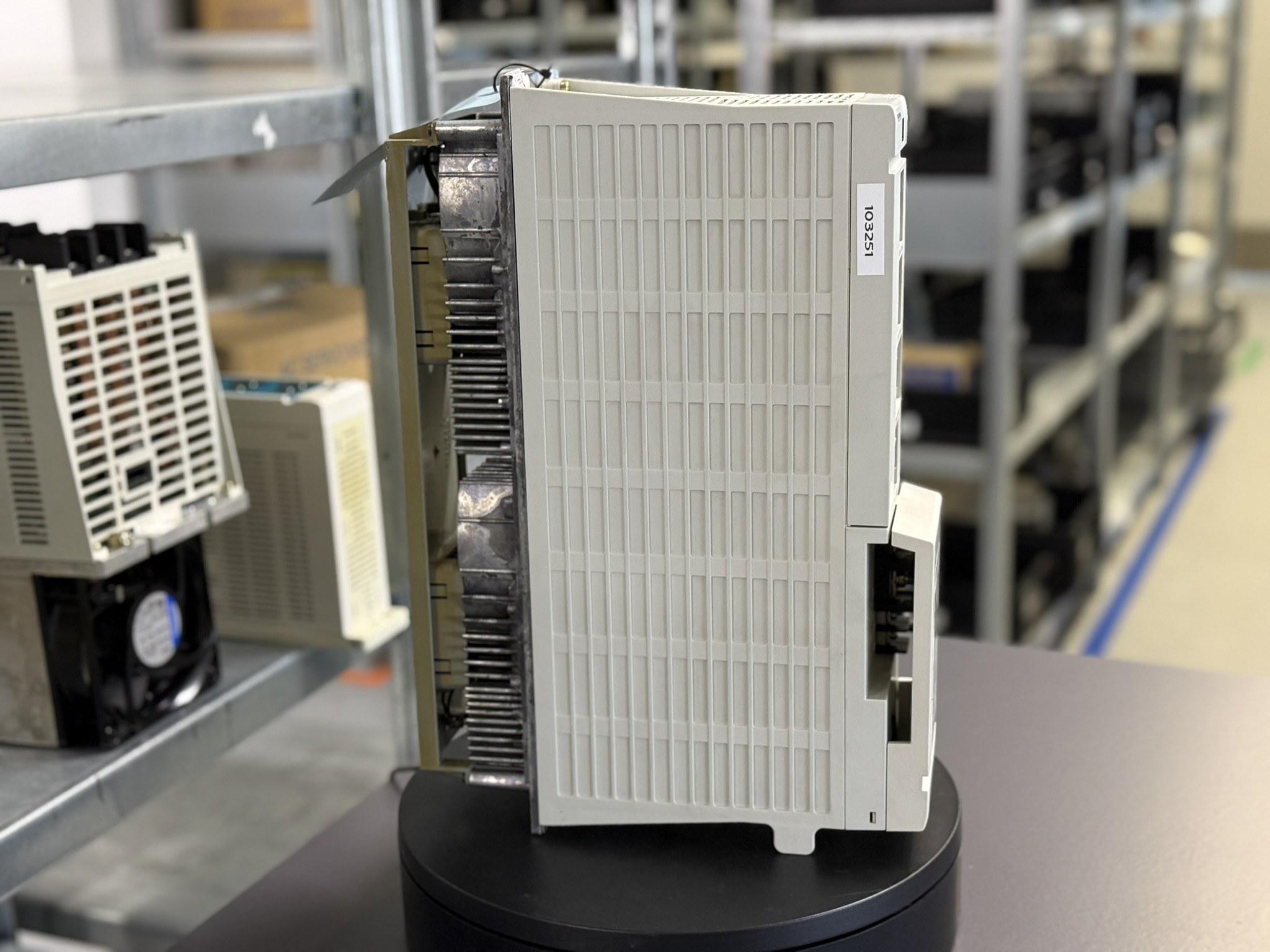

Technical Summary of the Unit
| Parameter | Value |
|---|
| Model | MDS-C1-SPM-110 |
| Type | Spindle Drive Unit |
| Manufacturer | Mitsubishi Electric Corporation, Japan |
| Rated Power | 11 kW |
| Input Voltage DC | 270–311 V |
| Input Current | 41 A |
| Input Voltage AC | 1-phase 200/200–230 V, 50/60 Hz, 0.2 A |
| Output Current | 37 A |
| Output Voltage | 3-phase 200 V |
| Output Frequency | 0–833 Hz |
| Weight | approx. 12 kg (estimated) |
| Cooling | Fan cooling |
| Protection Class | IP20 (estimated) |
| Manual No. | BNP-C3000 |
Application Environment & Compatible Devices
- Typical machines: CNC machining centers, lathes, milling machines (e.g. Mazak).
- Controllers: Mazatrol, Mitsubishi CNC C1 series.
- Compatible motors: Mitsubishi spindle motors up to approx. 11 kW.
- Environment:
- Operating temp.: 0–40 °C
- Humidity: 20–90 % (non-condensing)
- Installation in control cabinet with sufficient ventilation
Functional Description
The MDS-C1-SPM-110 is a spindle drive unit designed for precise speed control of high-performance spindle motors.
Key functions:
- Drives 3-phase spindle motors up to 11 kW.
- Wide frequency range (0–833 Hz) for flexible machining.
- Integrated protection against overcurrent, overheating, and overvoltage.
- Encoder feedback for precise torque and speed control.
- Communication with CNC via internal bus systems.
Alarm Messages & Troubleshooting
| Code | Error Description | Cause | Solution |
|---|
| 12 | Memory error | Fault in memory IC | Replace drive or memory board |
| 17 | A/D converter error | A/D IC fault | Replace drive |
| 21 | No signal | Encoder feedback failure | Check cable, connector, encoder |
| 25 | Absolute position lost | Battery discharged or cable defect | Replace battery, check cable |
| 27 | Scale CPU error | Error in linear scale detection | Check scale connection |
| 32 | Power module overcurrent | IPM short circuit or motor failure | Inspect power module, test motor |
| 42 | Feedback error 1 | U/V/W feedback signal missing/distorted | Check encoder, inspect cables |
| 46 | Motor temperature high | Overload, blocked cooling | Clean cooling paths, check fans |
| 50 | Overload 1 | Continuous overload | Check mechanics, reduce load |
| 58 | Collision detection | Mechanical crash or block | Inspect machine, analyze causes |
Components
| Part | Model designation | Qty |
|---|
| Control board | RK311C-21 or BN638A170G51 A | 1 |
| Power board | RL122B-SP or BN638A153G51 A | 1 |
| Power module | BKO-NC1207 H93 or A2-SP110 | 1 |
| Fan unit | approx. 2 pieces, mounted on rear | 1 |
| Heat sink | Aluminum block with power semiconductors | 1 |
