02.05.2025 by Viktor Siebert
MR-J40A-D33: Deceptively Real, But Not Compatible?
What’s the Real Story Behind Mitsubishi’s MR-J40A-D33 Servo Amplifier? We Show Why Many Replacement Units from the Far East Fail in Practice. And How We Can Still Help.
Special Version with a Hidden Difference

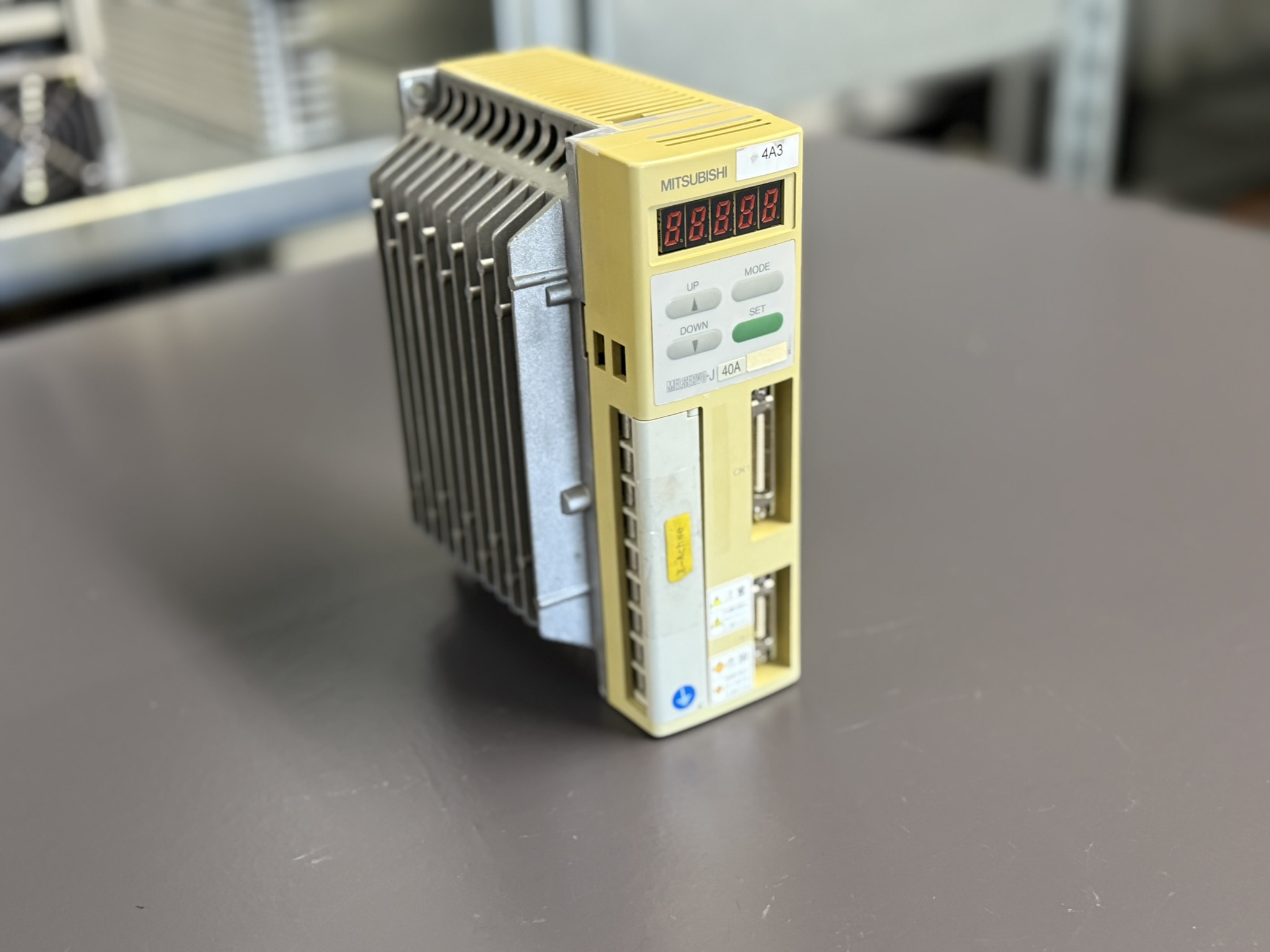

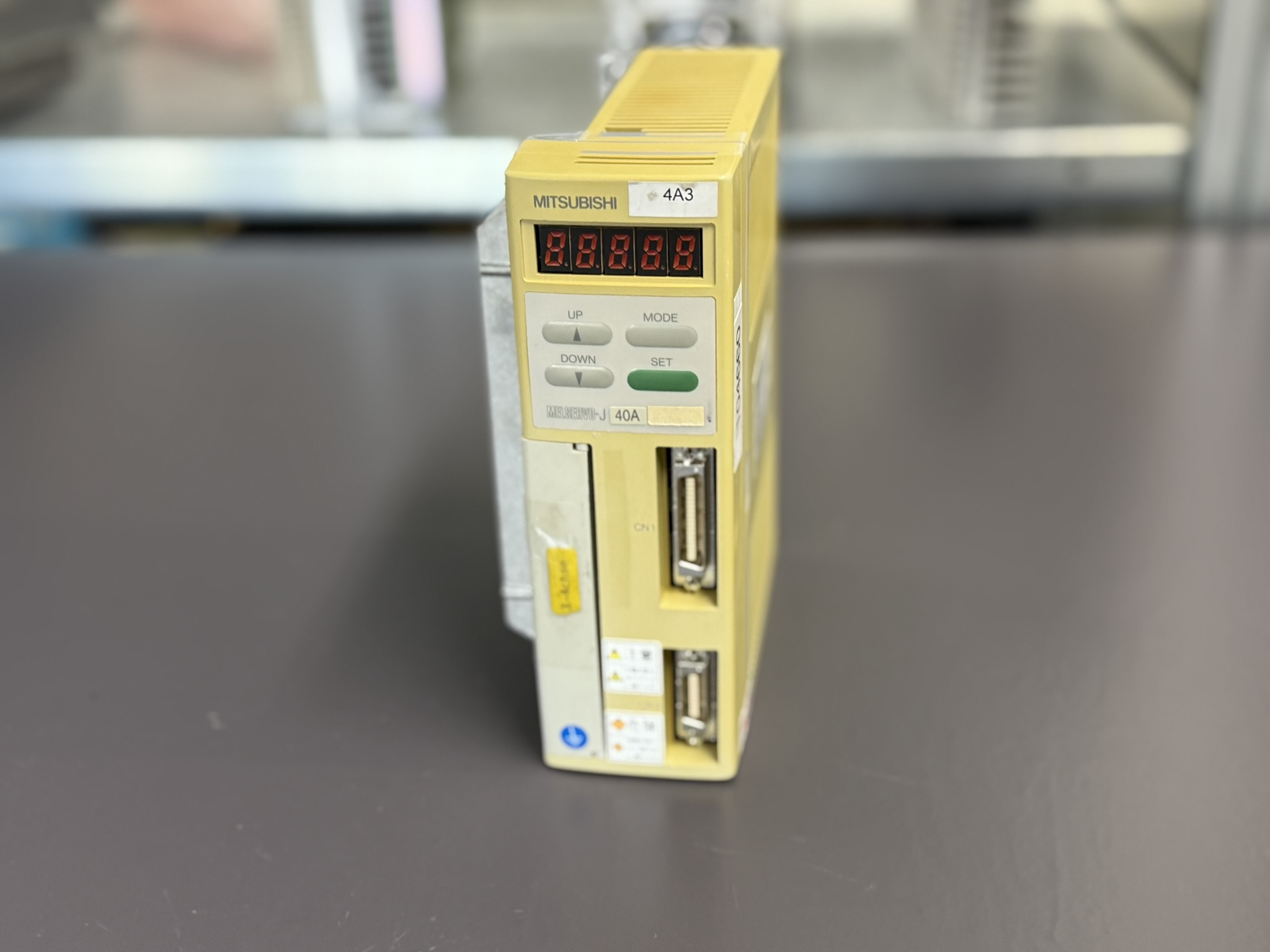

The Mitsubishi MR-J40A-D33 is a special drive module that appears outwardly identical to the standard MR-J40A model. However, the difference lies in the specific version: the suffix “D33” indicates a special variant that Mitsubishi developed specifically for certain machines and applications. In this version, not only are there software adjustments – a completely different communication board has also been installed.
Risk of Confusion with the Standard Model
Although the device corresponds 100% externally to the MR-J40A, it differs significantly internally, especially at the communication level. It is precisely this difference that repeatedly leads to problems in practice when seemingly identical replacement devices are used.
Counterfeits from China. A Frequent Source of Error
Numerous MR-J40A-D33 devices are offered on the market, particularly from China. However, many of these are relabeled standard models or counterfeits. In some cases, only the type designation has been changed, while the crucial internal board does not correspond to the original. These devices do not function reliably or do not function at all in machines with special requirements.
Start of Our Repair Support A
machine manufacturer contacted us after Mitsubishi discontinued production and official service for this model. Due to the high demand and recurring problems, we began to specifically repair MR-J40A-D33 devices. Today, we have extensive experience with this variant and can not only repair it but also fully test and preventively maintain it.
Original Devices Difficult to Obtain
Procuring original MR-J40A-D33 servo amplifiers is challenging. They are only available used – usually when machines are being dismantled. Everything else offered online is, in many cases, counterfeit or manipulated devices with a changed type designation.
Our Own Tests Prove: Functionality Often Not Given
We have carried out several test purchases of such devices. Not a single one contained the original communication board. In many cases, customers sent us devices for inspection that were advertised as “new.” Unfortunately, we could not help here, as the properties did not match the required version.
Our Own Tested Devices in Stock
To still be able to offer our customers a reliable solution, we have stocked some tested MR-J40A-D33 devices. These come from verified sources and have been fully tested by us. This allows machines to be put back into operation quickly – without the risk of failure due to counterfeits or incompatible hardware.
Our Advice on Device Purchase
If you need an MR-J40A-D33, we strongly recommend looking closely when purchasing. Ask the dealer whether it is actually the original version. If possible, have the internal components shown to you and clarify return options before placing an order. If you need support with the repair, testing, or replacement of this model, please do not hesitate to contact us.
Overview: Price and Delivery Time for Mitsubishi MR-J40A-D33 Servo Drive
Other Modells:
Mitsubishi MR-J10A-D33 Servo Drive
Mitsubishi MR-J60A-D33 Servo Drive
Mitsubishi MR-J200A-D33 Servo Drive
Mitsubishi MR-J350A-D33 Servo Drive
You can find more information about our Mitsubishi repair services here
📞 Feel free to contact us if you have any questions regarding your Mitsubishi drive systems. Our experienced team is always happy to assist you.

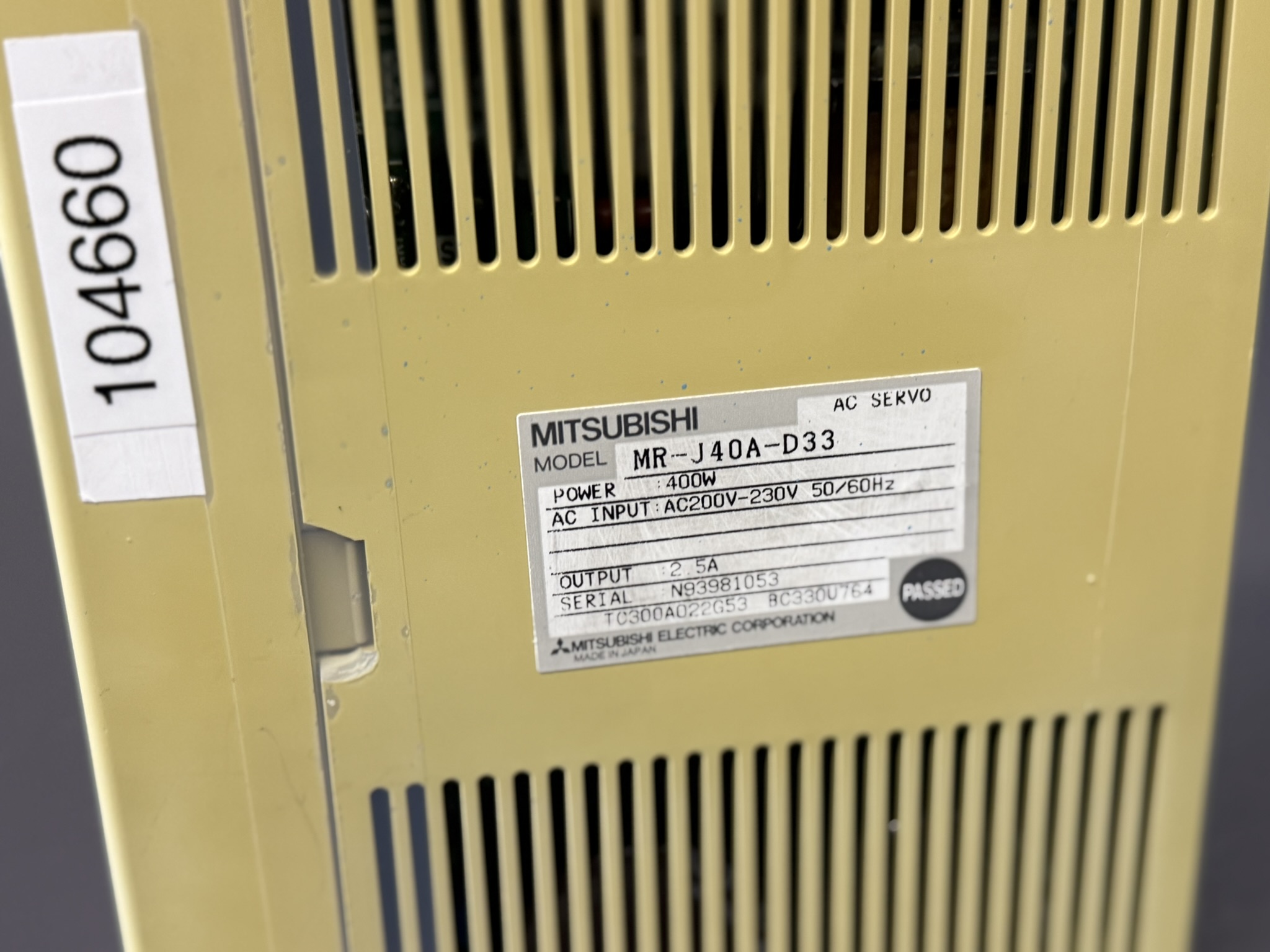

Technical Specifications
| Parameter | Value |
|---|
| Manufacturer | Mitsubishi Electric |
| Device Type | AC Servo Amplifier |
| Model | MR-J40A-D33 |
| Series | MELSERVO-J |
| Power | approx. 0.4 kW |
| Input Voltage | 3-phase 200–230 V AC |
| Output Voltage | motor-specific |
| Rated Current | approx. 2.5 A |
| Control Type | Position or speed control |
| Feedback | Encoder via servo motor |
| Cooling | Air cooling |
| Protection Class | Cabinet installation |
| Ambient Temperature | approx. 0 to 55 °C |
| Mounting | Vertical in control cabinet |
| Origin | Japan |
| Product Status | Discontinued |
Operating Environment and Applications
Typical machines: CNC, handling, packaging
Typical years: 1990s to early 2000s
Typical applications: positioning, feed axes
Clean cabinet environment, stable power supply and proper grounding are essential.
Thermal load should be kept low, as older units react more sensitively.
Functional Description
The servo amplifier converts mains power into controlled motor movement.
The power stage generates motor currents.
The control section processes command values and feedback.
The encoder provides position feedback.
Enable is done via servo ON signal.
In case of fault, the power stage is shut down.
Thermal and electrical protection functions prevent damage.
Signal monitoring detects communication faults.
These functions are safety relevant, as they directly influence motor movement.
Alarm Messages and Troubleshooting
| Alarm Code | Description | Possible Cause | Recommended Action |
|---|
| AL10 | Undervoltage | supply voltage too low | check mains supply and control voltage |
| AL12 | Memory error 1, RAM / ROM | internal memory fault | check parameters, repair drive |
| AL15 | Memory error 2, EEPROM | parameter memory fault | check saved data, repair drive |
| AL16 | Polarity detection error | encoder, motor connection or detection fault | check motor, encoder cable and wiring |
| AL17 | PCB error, A/D error | internal control board fault | inspect and repair control electronics |
| AL30 | Over-regeneration | braking energy too high | check regenerative resistor and load cycle |
| AL31 | Overspeed | motor speed too high | check command signal, feedback and parameters |
| AL32 | Overcurrent | short circuit, power stage or motor issue | check motor, cable and power section |
| AL33 | Overvoltage | DC bus voltage too high | check mains, braking circuit and regeneration |
| AL35 | Command frequency error | pulse command frequency too high or unstable | check controller output and wiring |
| AL37 | Parameter error | incorrect parameter setting | check and correct parameters |
| AL45 | Fin overheating | heatsink temperature too high | check cooling, cabinet temperature and load |
| AL50 | Overload | load too high or mechanical stiffness | check mechanics and motor load |
| AL52 | Excessive difference | position deviation too high | check mechanics, encoder and gain settings |
| AL90 | Screen changed during servo ON | display or mode changed while servo enabled | switch servo OFF before changing screen/mode |
Assembly Overview
| Assembly | Functional Name | Function | Inspection / Repair Notes |
|---|
| Control board | J-C19A | control and communication | critical for D33 version |
| Display board | J-F01B | operation and display | check signal stability |
| Power board | J-P03D | power stage | check thermal condition |
