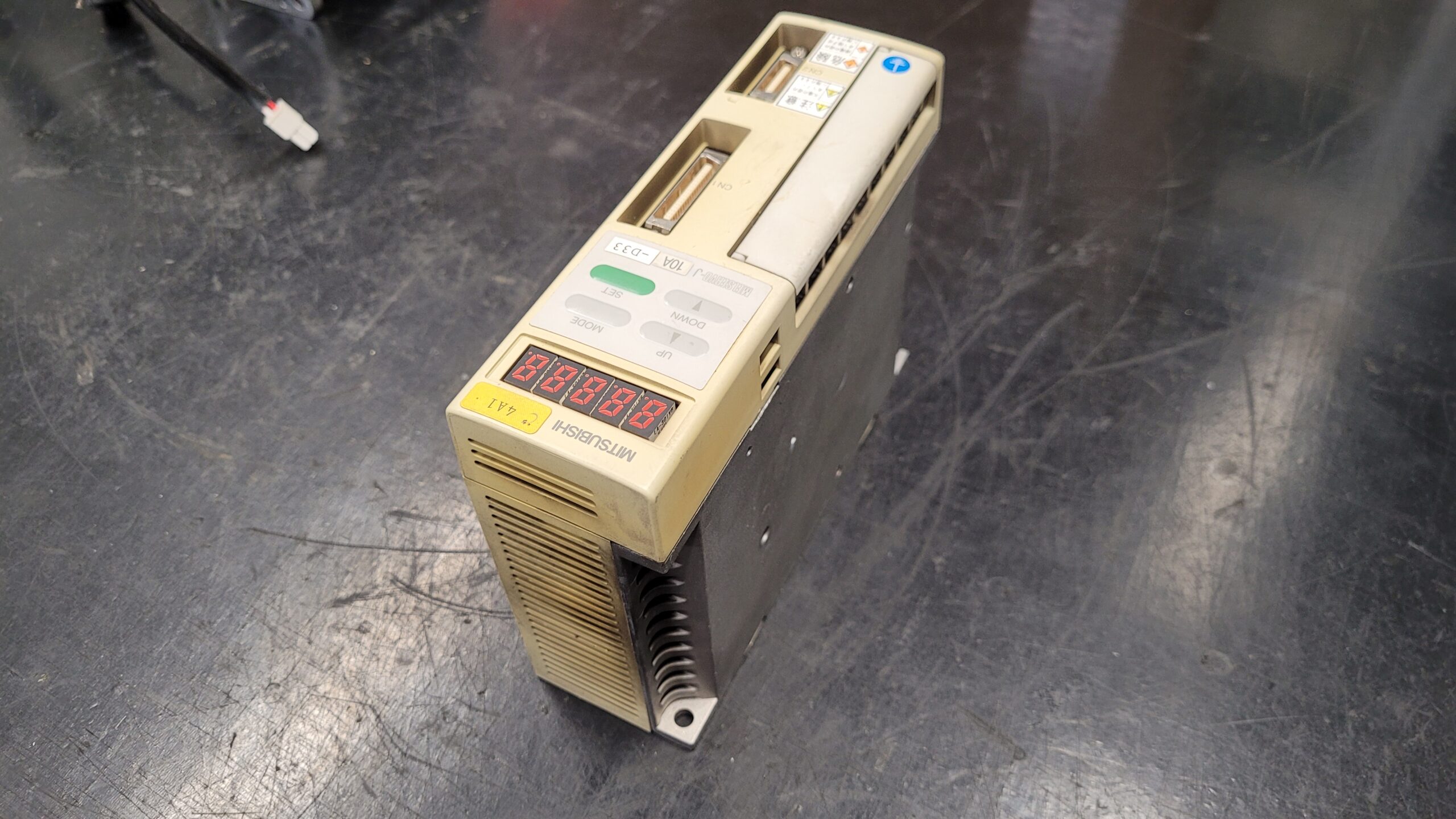

The Mitsubishi MR-J10A-D33 AC Servo Drive Unit is a specially designed servo amplifier used in selected wire EDM machines. Its design differs significantly from standard models, especially in the control board, which was developed exclusively for communication with the control system of this specific machine series.

The Customer Case

A well-known automotive supplier contacted us with the question of whether we could repair servo packs from this series. Like many of our customers, he follows a sustainable company policy and wanted to focus on repair or replacement. A retrofit was out of the question for his production environment, as it would have exceeded any reasonable cost limits.

On the phone he said, “It has to be worth it after all.” During the conversation, we learned that he had previously purchased several devices internally – but none of them worked. In his desperation, he had even dismantled a functioning machine to obtain spare parts. He operates five machines of the same type, with which he is very satisfied and which he intends to continue using for special applications. The real challenge lies solely in the drive modules and motors.

The Problem with Spare Parts from the Internet

Over the years, the customer had accumulated a collection of defective or incompatible drive modules. Many of these units were not original but standard models that had been re-labeled and sold as D33 versions. This practice is something we know from many other cases and it regularly leads to malfunctions.

The D33 version is designed exclusively for a specific machine configuration. Its control board is fundamentally different from the standard model and only in this special configuration can it communicate flawlessly with the machine control. Using a standard device without the appropriate D33 extension is technically impossible.

Our Repair Process

Every repair at our facility begins with a detailed visual inspection and documentation of all visible defects. The device is then electrically analyzed on a dedicated test bench. We record all operating parameters, check the communication interfaces, and measure the power stages.

Defective components such as power transistors, capacitors, or control electronics are replaced with original parts. Special attention is given to the control board, as it represents the key difference from the standard version. After the repair, the unit is cleaned in an ESD-protected area to remove dust, particles, and any possible contamination on the circuit tracks.

Testing Capabilities

We have test setups that simulate real machine operation. In these tests, the MR-J10A-D33 is run with a matching control unit and a test motor. We measure torque, speed, communication, and thermal behavior. Load changes are also simulated to verify performance under production conditions. Only when all target values are met does the unit receive our approval.

Conclusion

This case clearly shows the importance of relying on professional repairs and original components. Attempting to use standard units as specialized models without technical understanding not only leads to production downtime but often to additional damage. With our experience and the right testing capabilities, we ensure that the Mitsubishi MR-J10A-D33 works reliably again in the wire EDM machine after repair, securing the customer’s production in the long term.

More Info & Contact

To mentioned Mitsubishi Drive: Mitsubishi MR-J10A-D33 AC Servo Drive Unit

More details about our Mitsubishi repair services can be found here:
Mitsubishi drive Repair by Industrypart

We regularly repair similar models, including:
MR-J20A-D33
MR-J40A-D33
MR-J200A-D33

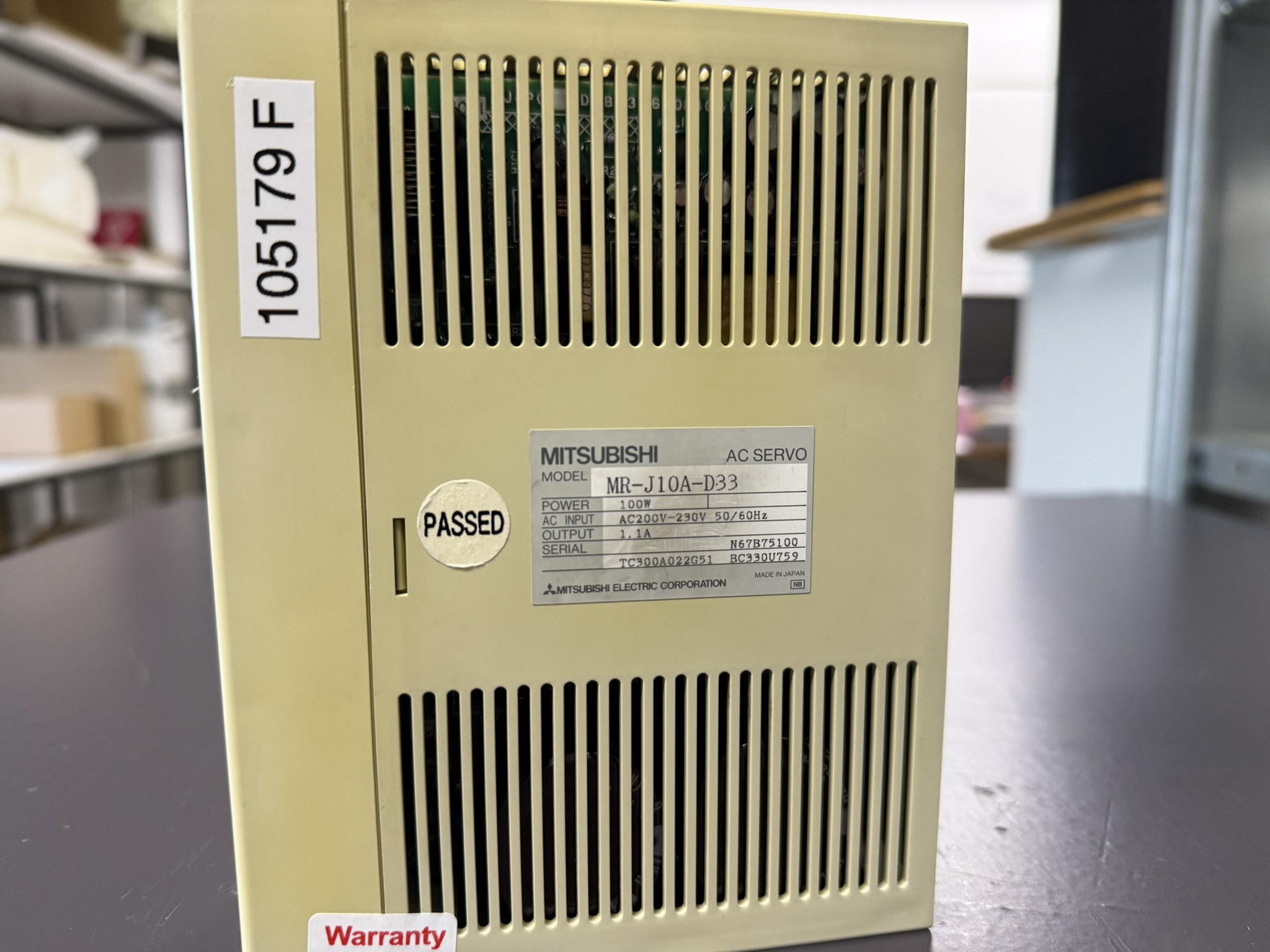

Device Data

Operating Environment and Compatible Devices

The MR-J10A-D33 is used in precision CNC and wire EDM machines where a dedicated communication board is required for the machine controller.

• Typical environment: Production halls, climate-controlled workshops, environments with regulated temperature and humidity
• Compatible motors: HA-FE, HA-SE, HA-ME series (depending on application)
• Permissible ambient temperature: 0–55 °C (no freezing)
• Permissible humidity: ≤ 90 % RH, non-condensing

Functional Description

The MR-J10A-D33 is a servo amplifier with position and speed control for operating AC servo motors. The D33 model contains a specially adapted control board that is only compatible with certain machine controllers. The servo amplifier performs the following:

• Power supply and regulation for the servo motor
• Communication with the machine controller via proprietary interfaces
• Protective functions against overcurrent, overvoltage, overtemperature, and communication errors
• Position and torque control for highly precise motion sequences
