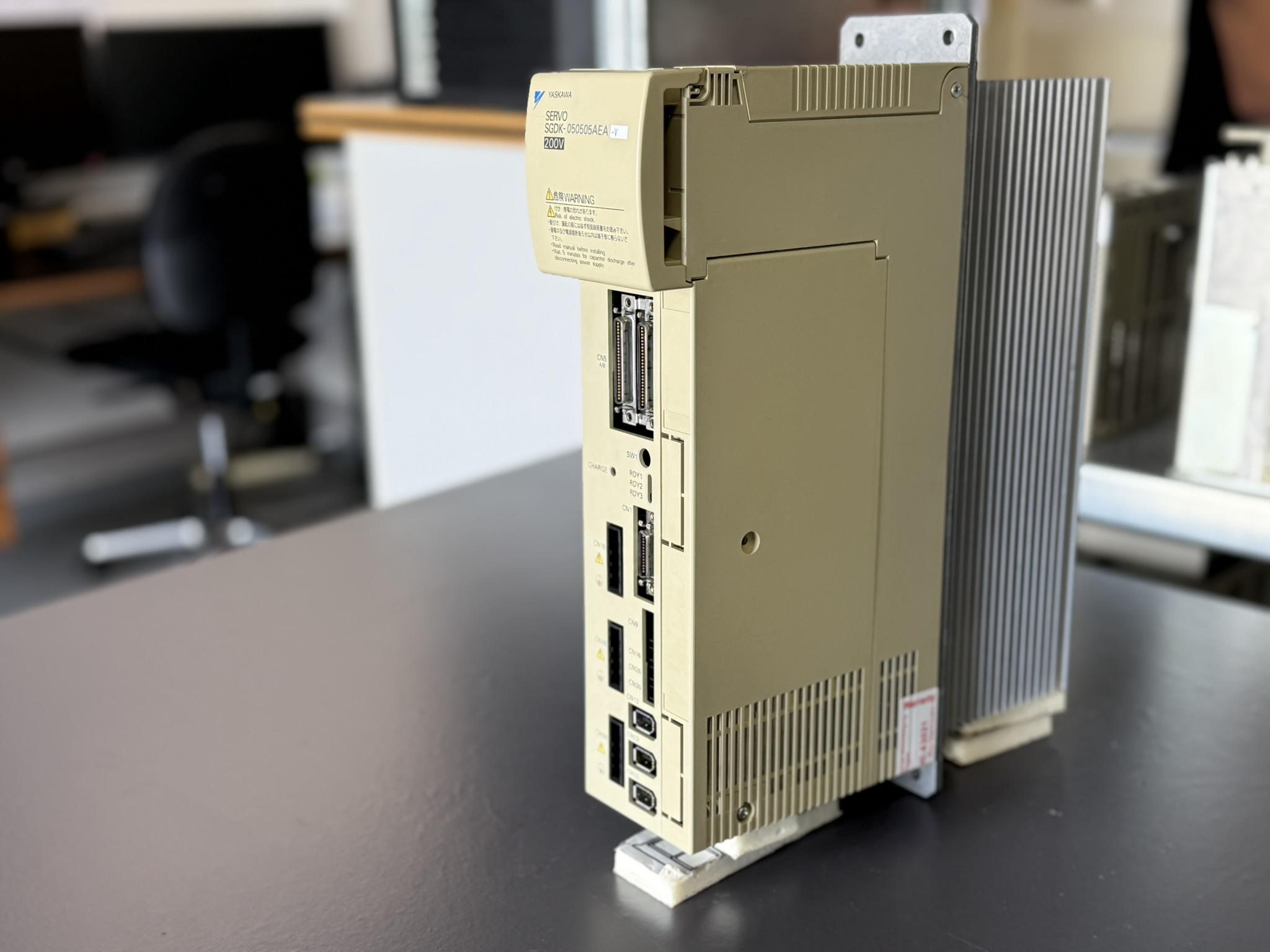

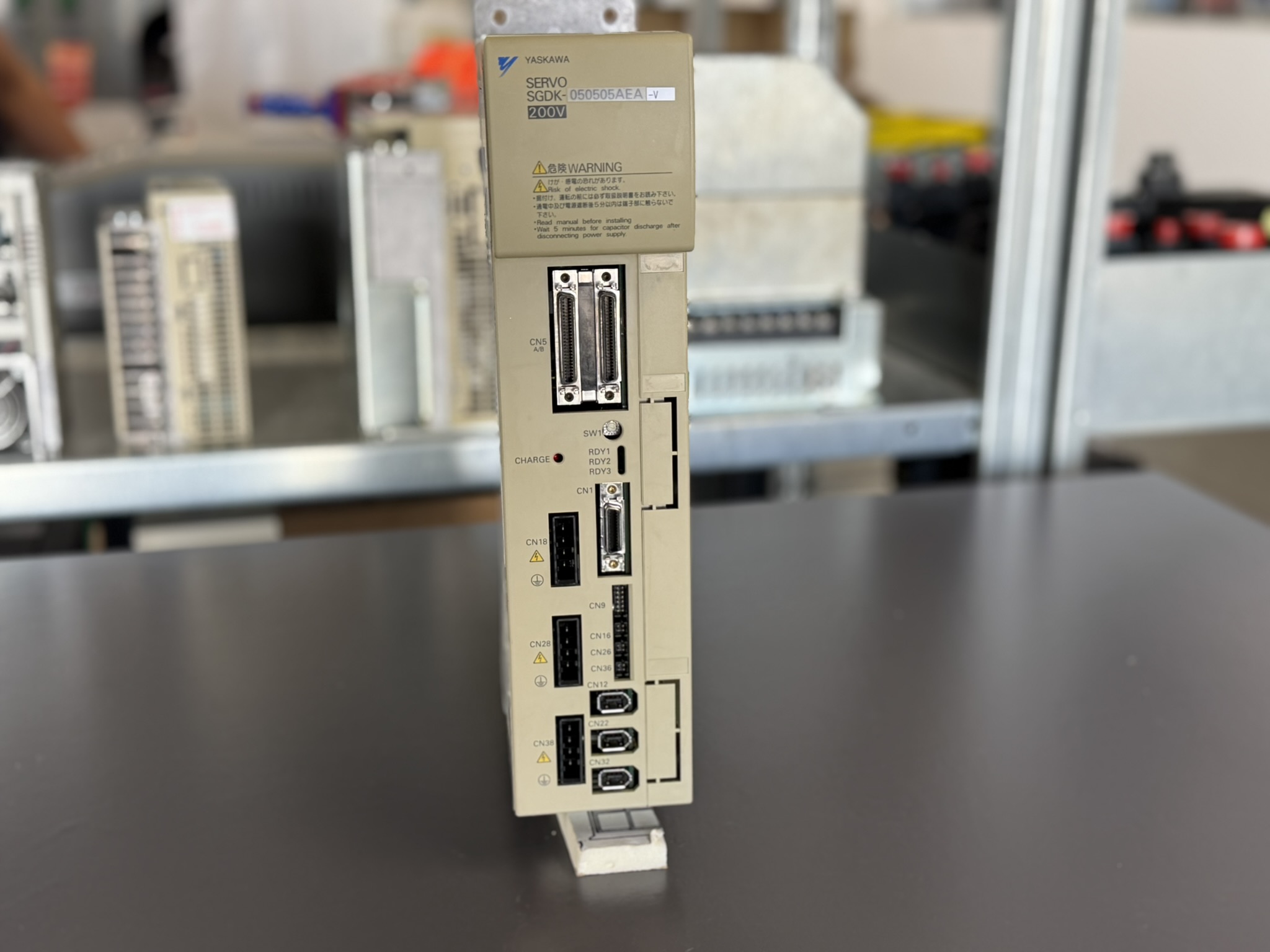

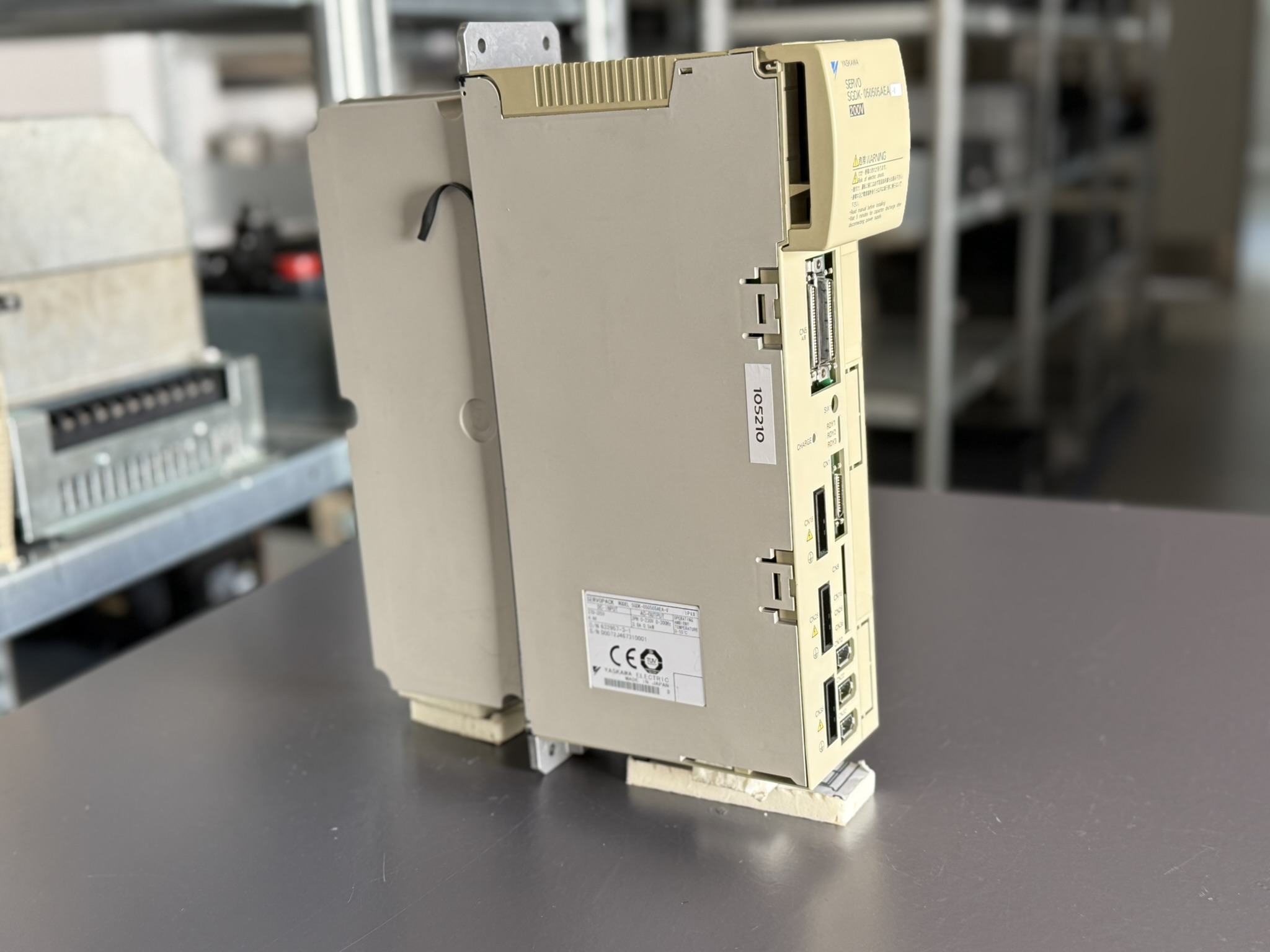

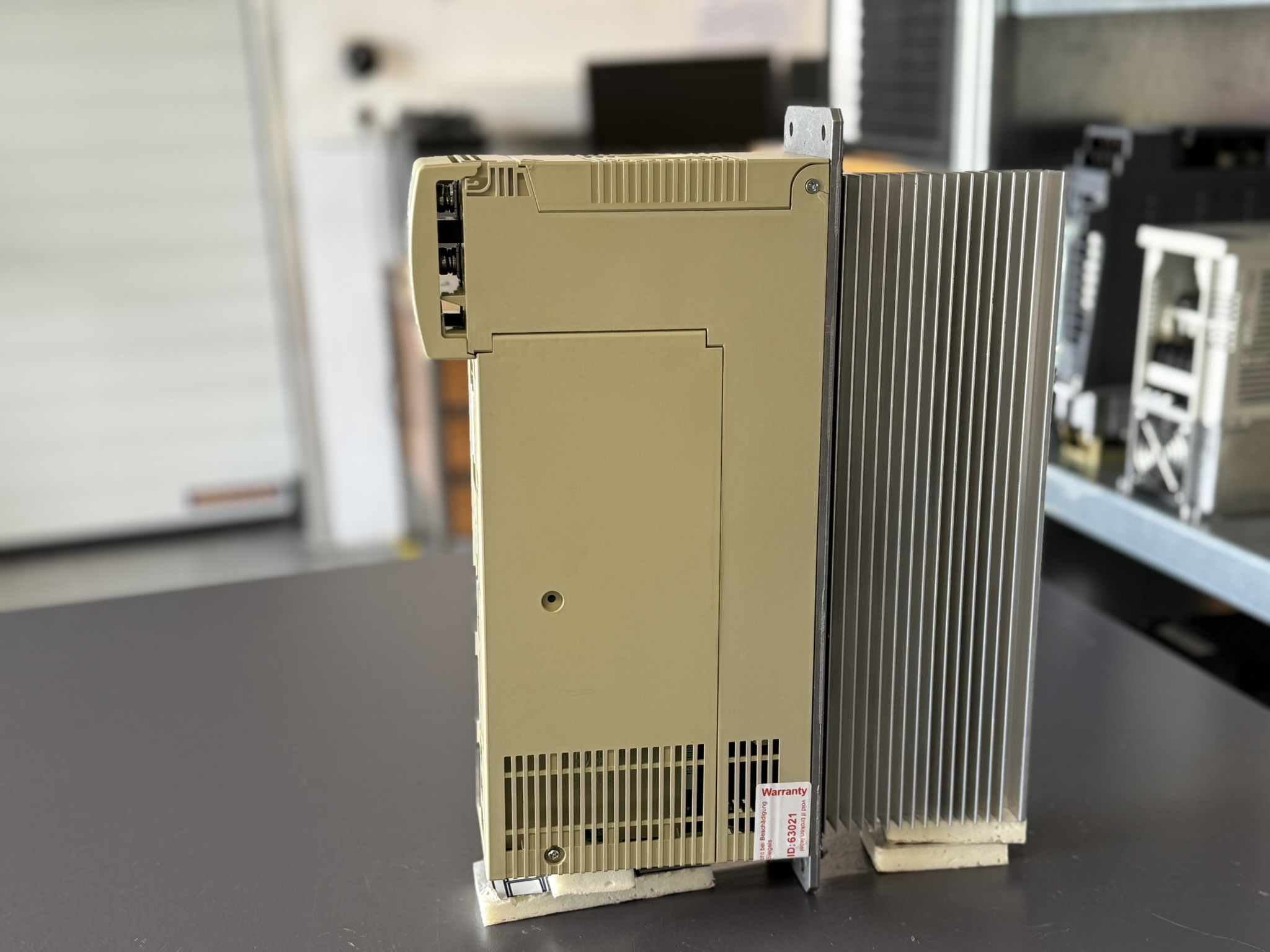

In many machining companies, they are still reliably in operation: the Yaskawa SGDK-050505AEA-V AC Servopacks, commonly found in high-performance machining centers by STAR and Matsuura. These servo amplifiers are known for their durability and precision. But what happens when manufacturers like Yaskawa or Siemens stop delivering replacements?

The answer lies in sustainable maintenance repair instead of replacement. And that’s where our specialty begins.

Spare Parts Secured: No Need to Worry

Many of our customers fear that the repair path may soon become impossible due to a lack of spare parts. We can confidently dispel that concern:
We anticipated this early and stocked up on original and compatible components.
Power modules, gate drivers, electrolytic capacitors, noise filters, line filters all are available and cataloged.

Our Specialty: Preventive Overhaul Instead of Simple Repair

Repair doesn’t start with a complete failure. Smart operators act in advance to avoid costly downtimes. Our preventive overhaul process is based on decades of experience with SGDK Servopacks and includes the following steps:

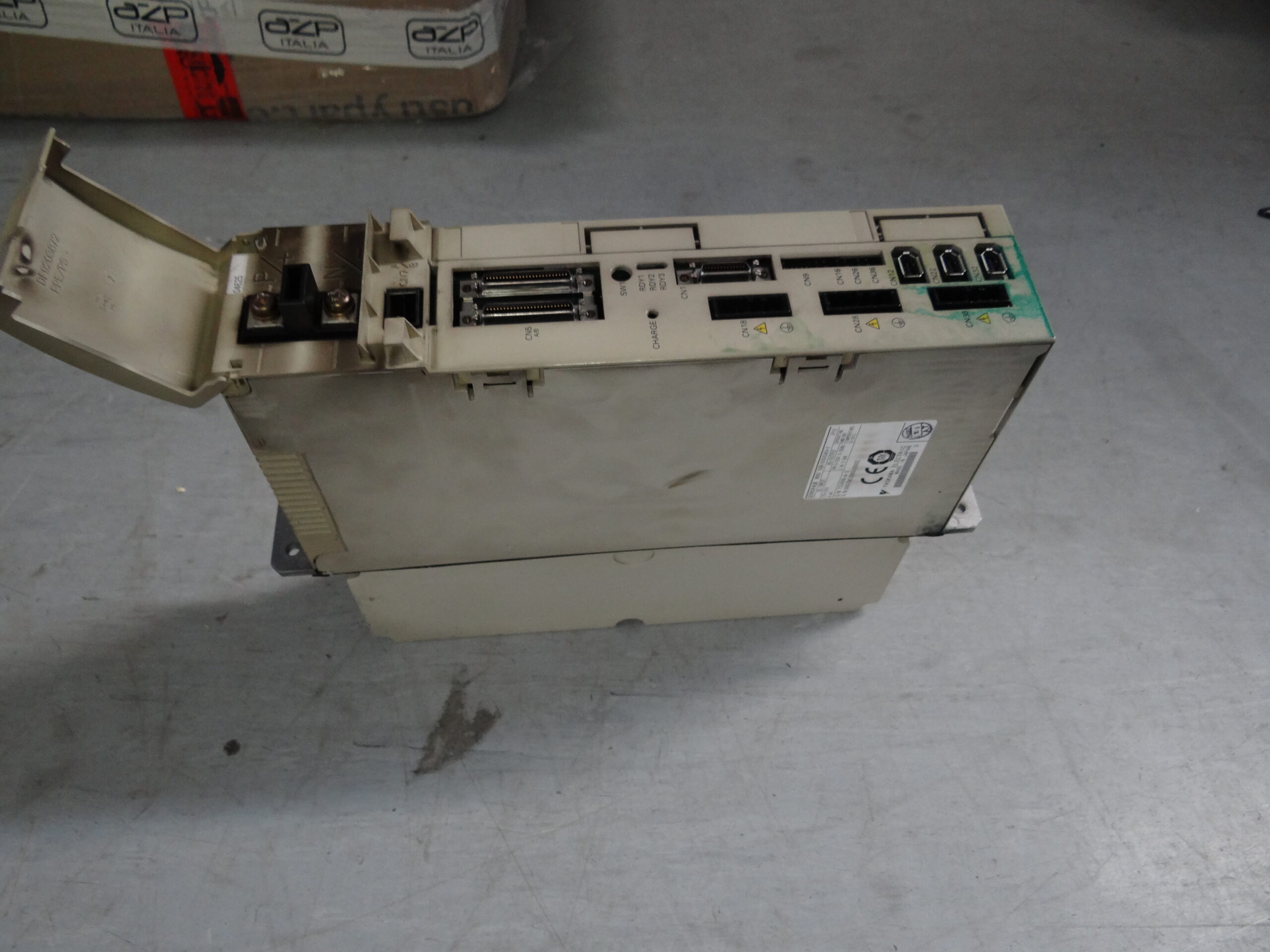

1. Initial Diagnostics and Visual Inspection

• Device registration with serial number, machine reference, and error code history
• Visual check for thermal damage, cold solder joints, bulging capacitors, broken connectors

2. Functional Pre-Test on Our Test Bench

• Each unit is powered and functionally tested before repair
• Analysis using our internal diagnostic system
• Common faults checked: overcurrent, encoder communication, gate drive errors

3. Full Disassembly and Cleaning

• Complete disassembly down to the board level
• Compressed air cleaning, ultrasonic bath for heavily soiled components
• Re-soldering of all critical connections

4. Component Replacement

• All known weak points are proactively replaced (capacitors, IGBTs, gate driver ICs, relays)
• Only high-quality, tested components are used
• Every replacement is documented in a detailed service report

5. Parameter Management

• If available, we back up customer machine parameters
• If corrupted, we reset to manufacturer defaults or configure as requested

6. Live Testing in Real CNC Machines

• This is where we truly stand out:
  We test SGDK-050505AEA-V units in original machines with Yaskawa motors and CNC control systems not in simulators, but in real production conditions
• Simulating axis movements, encoder feedback, emergency stop, reference runs, fast positioning cycles

7. Heat and Endurance Testing

• Load tests under continuous operation with temperature monitoring
• Evaluation of thermal behavior and internal sensor performance

8. Final Inspection and Shipping

• Documented final quality control with test seal
• Safe packaging for return shipment
• On request: full repair report with failure analysis and maintenance recommendations

Our Commitment: The Future of the SGDK Series Is Secure

As long as STAR and Matsuura machines rely on these Servopacks, we ensure their continued operation through our repair expertise not just short-term, but for years to come, with secure inventory, in-depth know-how, and real machine testing.

Whether emergency repair or proactive maintenance your SGDK-050505AEA-V is in the best possible hands with us.
Tradition meets technology quality endures.

Additional Information: Yaskawa SGDK-050505AEA-V Servopack

For further details on our Yaskawa repair services, please visit here.

📞 Please feel free to contact us if you have any questions regarding your Yaskawa drive technology. Our experienced team is always available to assist you.

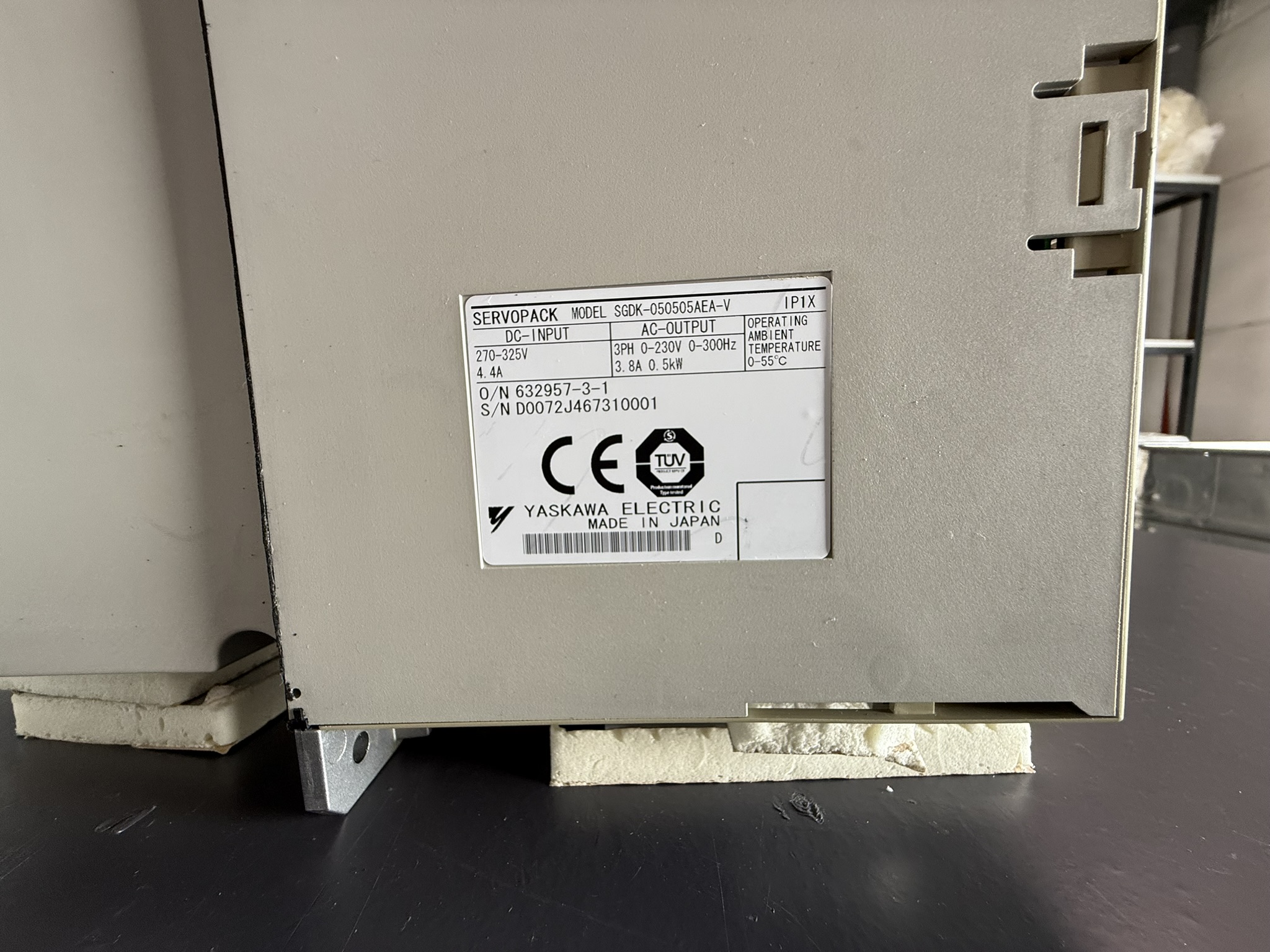

Device Specifications (SGDK‑050505AEA‑V)

Typical Operating Environment

The SGDK‑050505AEA‑V Servopack is commonly used in CNC machines from STAR and Matsuura, particularly in precision machining centers, tool changers, or Z-axes with low to medium power requirements. These units work with Yaskawa AC servo motors, such as SGMAH,SGMGH, SGMGS or SGMPH, and are typically paired with Siemens or Fanuc CNC controls.

These machines are installed in clean production environments and require a well-ventilated control cabinet to maintain thermal stability.

Function Description

The SGDK‑050505AEA‑V is a digital AC servo amplifier designed to precisely control synchronous servo motors. Its main functions include:

• Conversion of DC input into 3-phase AC output
• Real-time speed and position control using encoder feedback
• Communication with upper-level CNC control via serial or fieldbus interfaces
• Comprehensive error detection and protection features such as overcurrent, overtemperature, and communication loss
• Parameter setting and configuration via software or DIP switches to match machine requirements

Alarm Messages and Troubleshooting

Components of SGDK‑050505AEA‑V
