Repair for Yaskawa XD-15-MSD0

XtraDrive

ID: 39095

Buy	Not available
Repair	€ 900.00
Exchange	Not available

Price: excl. VAT.
incl. VAT
Shipping calculated separately

Availability	Stock

Repair of Yaskawa XtraDrive Drive Technology

XD-xx-MN01 XD-xx-MSD0 XD-xx-MSD0-E

Yaskawa XtraDrive Drive Technology

We test and repair Yaskawa XtraDrive drive technology.
Additionally, we also offer service for Yaskawa/Omron motors.

Video: XtraDrive Yaskawa Test Station with Profibus and Repair at industrypart GmbH

We specialize in the following series:

XD-02-MN01, XD-04-MN01 and all other sizes up to XD-75
XD-02-MSD0, XD-04-MSD0, and all other sizes up to XD-75
XD-02-MSD0-E, XD-04-MSD0-E, and all other sizes up to XD-75

Our repair process is preventive and includes a series of steps that contribute to ensuring high repair quality.

Error Analysis and Localization

What can you do?

Handling Parameters

When parameterizing, it is crucial to save the settings early and document jumper and key settings as well.

What should be considered during parameterization?

In most cases, motor parameters are stored in the drive or the control system.
Obtain the relevant documentation or software to set the parameters.
You can find more documentation on this topic at the end of this page or ask us.

The typical repair process for Yaskawa drive modules

The repair process for drive modules includes the following steps

Preventive overhaul - replacement of all necessary defective and worn parts.
Intensive cleaning.
Comprehensive final and load tests on our test stands.
Parameter adjustment or restoration of parameters.
Filling out the documentation and checklists.

High-quality spare parts for high-quality repairs

For Yaskawa XtraDrive we replace

Electrolytic capacitors
Large buffer capacitors
Relays
Current measurement modules
Optocouplers

Additionally, we replace certain parts that have proven to frequently fail over several repairs and are therefore statistically selected for replacement.

To counteract bottlenecks and discontinuations, we have process-oriented software solutions that monitor our inventory. We order some parts in advance, and for series repairs, we even secure sufficient spare parts for a year to ensure we always have a large stock available.

Quality and level of repair

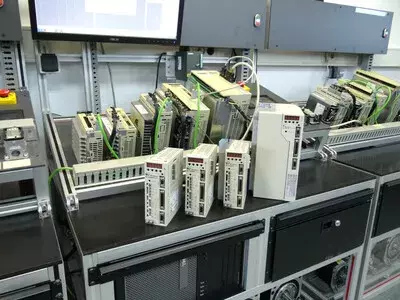

A professional repair requires the use of a test stand. For each new series, specially adapted and complex test equipment is developed. The devices are thoroughly checked for their functionality by subjecting them to a long-term load test.

The test is carried out on a test stand that simulates the processes as in a real processing plant.

During the test, the following is checked:

BUS control
POT/NOT (positive and negative over travel)
Encoder connection
Alarm states
Speed
Current and voltage consumption
Temperature
Parameters

VIDEO: Yaskawa XtraDrive under load - Load test

We continuously expand our repair portfolio with new series

As drive and power electronics are often prematurely discontinued, you may find yourself under pressure to provide timely replacements for your customers. We support you in analyzing bottlenecks and work together to find optimal solutions.

The typical process includes:

Development of test benches and procedures
Organization of spare parts
Preventive repair at the component level
If necessary, redevelopment or re-engineering of modules or complete devices

Frequently Asked Questions

Drive module repair

In which quality/level are load tests performed at your company?

Complex and specially adapted test equipment is developed for each new series. Devices are tested with long-term load test thoroughly checked for functionality. Get an idea of our test facilities.

Do you have special spare parts, which are necessary for qualitative repair?

In times of shortages and discontinuations, we have process-oriented software solutions that monitor our inventories. We order some parts in advance, for series repairs even for 1 year, so that we can fall back on a large stock of spare parts. Certain modules are re-engineered by us.

Can you parameterize the devices?

If possible, a copy of the parameters is always read out and stored upon receipt. After successful repair, the data is compared and in case of exchange or sale, original parameters are transferred or restored to the new device. We have all the necessary hardware as well as software applications to parameterize Yaskawa devices according to the specifications.

What processes are involved in the repair of drive modules?

The repair process for drive modules includes, but is not limited to, the following:

Preventive overhaul - replacement of all necessary defective and used parts. E.g. electrolytic capacitors, transistors, optoelectronic components.
Intensive cleaning
Extensive final and load tests on our test stands
Parameter adjustment or parameter recovery

You can find more information on the process flow for drive module repair here.

Further information

What are the example type designations for this device series?

XD-02-MN01, XD-04-MN01, and all other sizes up to XD-75
XD-02-MSD0, XD-04-MSD0, and all other sizes up to XD-75

Will I get a detailed repair report after a successful repair?

We document the repair process for every order. You can download a detailed description of the process here.

Do you commission new or unknown equipment?

We are continuously looking for new areas of activity. After consultation with the customer, we determine the necessary steps for a safe and qualitative repair

Can it happen that after repair my device continues to show errors?

It may happen that error messages continue to be displayed with the connected device. Already during the analysis of the errors, we give the customers suggestions for solutions for different malfunctions and errors. error cases, if we suspect further error causes. Errors and faults are documented, among other things, in the log file of the respective device, which may indicate, for example, encoder communication problems, cable defects or overloads.

What does serial repair or overhaul mean

Many of our customers have defective devices of the same model in larger quantities. We have optimized our processes for series repair and have the capacity to repair many devices in parallel quickly and to a high repair many devices in parallel.

Cost & Warranty

What are the costs for repair or overhaul? What does "flat repair rate or standard repair price" mean?

The repair process itself represents a high degree of technical complexity, which we always want to master with a qualitative and long-term solution for you. solution for you. However, the maintenance of these quality characteristics requires, to agree on a repair flat rate or standard repair price. We communicate honestly and transparently all the information you need. For example, prices, previous and completed work steps, delivery times, etc.

Is there a warranty for the respective repair?

Basically we give 12 months warranty.

XtraDrive_alerts.pdf (0.16 MB)

XtraDrive_UsersManual.pdf (20.49 MB)

Xtradrive-dp_UserManual_rev.b-2.pdf (1.91 MB)

You can contact us in the following way:

Chat with our customer support, write us a message: [email protected] or call us: +49 6251 9888430

To the Yaskawa Catalog Contact us

We offer serial repairs for this product series

Repair of many electronic assemblies according to standardized repair procedures with documentation.
A larger repair capacity is possible for the same or similar orders
Target group: machine manufacturers, service companies and distributors

Access to years of experience, specialists and equipment. Find out more about our series repairs
