Okuma spindle drive modules VACIII, VACIV and MIP
Repair - Exchange - Sale

Drive module repair

Complex and specially adapted test equipment is developed for each new series. Devices are tested with long-term load test thoroughly checked for functionality. Get an idea of our test facilities.
In times of shortages and discontinuations, we have process-oriented software solutions that monitor our inventories. We order some parts in advance, for series repairs even for 1 year, so that we can fall back on a large stock of spare parts. Certain modules are re-engineered by us.
If possible, a copy of the parameters is always read out and stored upon receipt. After successful repair, the data is compared and in case of exchange or sale, original parameters are transferred or restored to the new device. We have all the necessary hardware as well as software applications to parameterize Yaskawa devices according to the specifications.
The repair process for drive modules includes, but is not limited to, the following:
  • Preventive overhaul - replacement of all necessary defective and used parts. E.g. electrolytic capacitors, transistors, optoelectronic components.
  • Intensive cleaning
  • Extensive final and load tests on our test stands
  • Parameter adjustment or parameter recovery
You can find more information on the process flow for drive module repair here.

Further information

  • The following modules and boards may be installed in these spindle modules:. E4809-045-145-C or E4809045145C Order no. 1006-1107, E4809-705-002 or E4809705002 VACIII-D22 PWR Board Order No. 1006-1232 (special for D22) VACIV CPU Board A0006-1507, VACIV GD Board1, E4809-820-001 Power Board, E4809-045-153-A VACIII Base Drive Board, E4809-045-152-A VACIII Top Board
We document the repair process for every order. You can download a detailed description of the process here.
We are continuously looking for new areas of activity. After consultation with the customer, we determine the necessary steps for a safe and qualitative repair
It may happen that error messages continue to be displayed with the connected device. Already during the analysis of the errors, we give the customers suggestions for solutions for different malfunctions and errors. error cases, if we suspect further error causes. Errors and faults are documented, among other things, in the log file of the respective device, which may indicate, for example, encoder communication problems, cable defects or overloads.
Many of our customers have defective devices of the same model in larger quantities. We have optimized our processes for series repair and have the capacity to repair many devices in parallel quickly and to a high repair many devices in parallel.

Cost & Warranty

The repair process itself represents a high degree of technical complexity, which we always want to master with a qualitative and long-term solution for you. solution for you. However, the maintenance of these quality characteristics requires, to agree on a repair flat rate or standard repair price. We communicate honestly and transparently all the information you need. For example, prices, previous and completed work steps, delivery times, etc.
Basically we give 12 months warranty.

D6 VACIII Drive Unit

4500.00 €


D22 or 1006-1232 VACIII-Drive Unit

7700.00 €

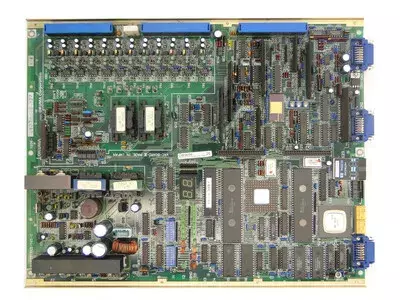

E4809-045-145-C or 1006-1107 Okuma VACIII Drive Board

3640.00 €
